Quick Details
-
Warranty:
-
30years
-
Brand Name:
-
JApower
-
Model Number:
-

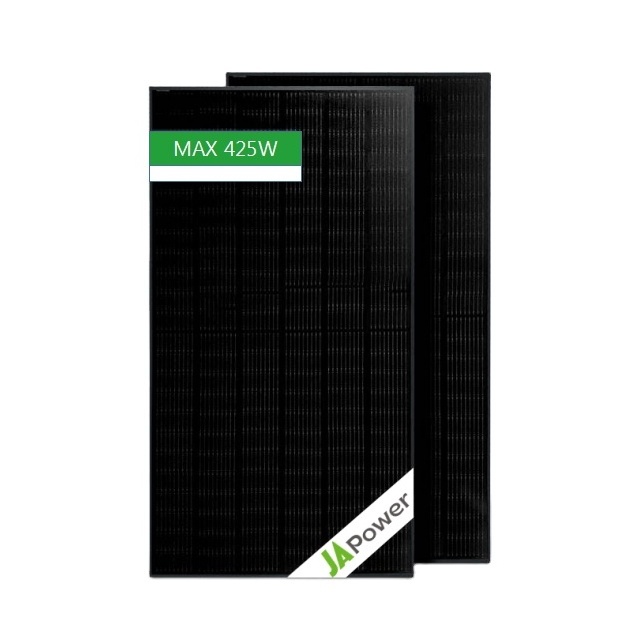

JA410-425M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Weight(kg):
-
21.8kg
-
Glass Thickness:
-
3.2mm
-
No.of Cells and Connections:
-
108(6*18)
-
Junction Box:
-
IP68 (3 Bypass Diodes)
-
Connector:
-
MC4 Compatiple
-
Moduels Per Pallet:
-
36Pcs
-
Moduels Per 40HQ:
-
936Pcs
-
Encapsulation:
-
Class/Eva/Cell/Eva/Backsheet
-
Cable Cross Section Length (mm):
-
300
-
Cable Cross Section Size (mm²):
-
4
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
Half Cell
-
Panel Efficiency:
-
21.8%
-
Warranty:
-
30years
-
Brand Name:
-
JApower
-
Model Number:
-
JA410-425M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Weight(kg):
-
21.8kg
-
Glass Thickness:
-
3.2mm
-
No.of Cells and Connections:
-
108(6*18)
-
Junction Box:
-
IP68 (3 Bypass Diodes)
-
Connector:
-
MC4 Compatiple
-
Moduels Per Pallet:
-
36Pcs
-
Moduels Per 40HQ:
-
936Pcs
-
Encapsulation:
-
Class/Eva/Cell/Eva/Backsheet
-
Cable Cross Section Length (mm):
-
300
-
Cable Cross Section Size (mm²):
-
4
-
Certificate:
-
CE
Products Description
|
Electrical Parameters
|
|
|
|
|
||||
|
Module
|
JA410M ~ JA425M
|
|
|
|
||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
|
|
|
||||
|
Maximum Power Pmax (W)
|
410
|
415
|
420
|
425
|
||||
|
Maximum Power Voltage (Vmp/V)
|
32.36
|
32.56
|
32.76
|
32.96
|
||||
|
Maximum Power Current (Imp/A)
|
12.67
|
12.75
|
12.83
|
12.90
|
||||
|
Open Circuit Voltage (Voc/V)
|
38.63
|
38.83
|
39.03
|
39.23
|
||||
|
Short Circuit Current (Isc/A)
|
13.70
|
13.78
|
13.85
|
13.93
|
||||
|
Module Efficiency (%)
|
21.00
|
21.30
|
21.50
|
21.80
|
||||
|
Power Tolerance (W)
|
0 ~ +5W
|
|
|
|
||||
|
Temperature Coefficient of Isc (αIsc)
|
+0.050%/℃
|
|
|
|
||||
|
0.23%/℃ Temperature Coefficient of Voc (βVoc)
|
-0.23%/℃
|
|
|
|
||||
|
Temperature Coefficient of Pmax (γPmp)
|
-0.29%/℃
|
|
|
|
||||
|
STC
|
Irradiance 1000W/㎡, Cell Temperature 25℃ , Spectrum AM 1.5
|
|
|
|
||||
KEY FEATURES
Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.
Longer Life-time Power Yield
0.55% annual power degradation and 25 year linear power warranty.
Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.
Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.
Reliable Quality
Positive power tolerance: 0~+5W
100% EL Double-inspection ensures modules are defects free
Modules Binned by Current to improve system performance
Potential induced Degradation (PID) Resistant
LINEAR PERFORMANCE WARRANTY
12 years for product defects in materials & workmanship
25 Year Linear Power Warranty
100% EL Double-inspection ensures modules are defects free
Modules Binned by Current to improve system performance
Potential induced Degradation (PID) Resistant
Projects
Packaging & Payment
|
Payment
Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
|||
|
|
|
FOB
|
|
|
|||
|
|
|
CIF
|
|
|
|||
|
|
|
DDP
|
|
|
|||
|
|
Credit Card
|
30% T/T in advance, paid the balance before shipment
|
|
|
|||
|
|
Paypal
|
30% T/T in advance, paid the balance before shipment
|
|
|
|||
|
Delivery Time
|
7~15 days after receiving payment
|
|
|
|
|||
