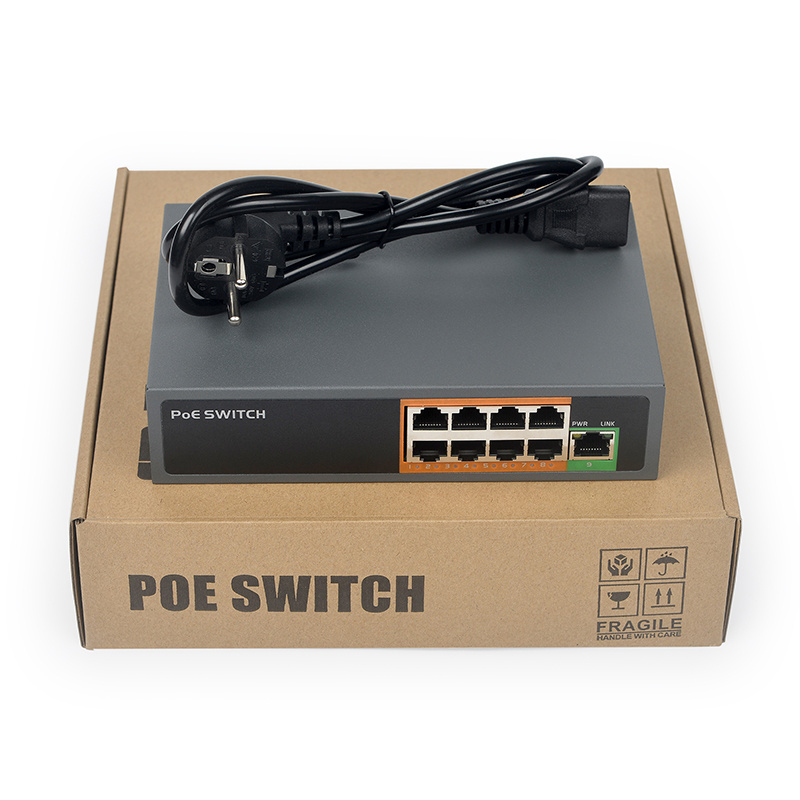

SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function
SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function
SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function
SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function
SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function
SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function
SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function
SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function

SDAPO Factory direct PSE908D 8+2 port poe switch IEEE802.3af/at 48v poe switch with 250 meters extender function

FOB Reference Price: Get Latest Price
≥1 Pieces
US $30
≥50 Pieces
US $29.5
≥200 Pieces
US $29.3
≥1000 Pieces
US $28.9
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
SDAPO
Place of Origin:
Guangdong, China
Product Name:
PSE908D
Certification:
FCC/RoHS/CE

Quick Details

Transmission Rate:
10/100Mbps
Communication Mode:
Full-Duplex & Half-Duplex
Switch Capacity:
2G
Brand Name:
SDAPO
Place of Origin:
Guangdong, China
Product Name:
PSE908D
Certification:
FCC/RoHS/CE
Products Description
Product Overview
The PoE Switch PSE908D provides 1x 10/100Mbps and 8 x 10/100Mbps PoE Plus ports. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 104W, up to 30W per port. , whichprovides convenient and flexible installation. The PSE908D is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure. Cost Effectiveness And Enhanced Flexibility Featuring Power over Ethernet , which nearly doubles the power delivery comparing to the IEEE 802.3af/at PoE technology. Furthermore, it ensures that the power is used more efficiently due to the maximum power will only be requested when it is needed. Thus providing great cost savings by reducing power bills and eliminating the need for additional power cables and outlets.

Key Features
- Lightning protection 4KV 10/700us
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x flow control protects against lost packets for reliable data transmission
- Simple Plug and Play installation
- switch Extend ,1-8Port ; 5E cat Cable Distance 250M;Data Rate 10Mbps
- Total PoE power budget: 104W, up to 30W per port
- Compact Design Fits Easily in WLAN Access
- Easy installation and maintenance

Technical Specification
Standards
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control) IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet


PoE Spec
PoE Standard: IEEE 802.3af/at Power over Ethernet / PSE PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output: Per Port 54V DC, Max. 30 watts
(IEEE 802.3af/at)
Power Budget: Max.104W
Power Pin Assignment: 1/2(+), 3/6(-)
Transmission Media
10 BaseT Cat 3,4,5 UTP/STP
100M BaseTx CAT 5 UTP/STP
Filtering/Forwarding Rates
100Mbps port-148,000pps
10Mbps port-14,880pps
LED Indicators
Per Port: Link/Act(Green),
Power:PWR(Green)
Network Interface
8 x 10/100Mbps RJ-45 PoE 1~8 Ports
1 x 10/100Mbps RJ-45 Uplink 9 Ports
Power Input
Input: 100~240V/AC, 50~60 Hz, 2A Internal Power Supply
Power Consumption
104Watts(Max)
Extend/ON
1~8Port 10Mbps POE 250M
Dimensions: (L x W x H) / Weight
185*123*44mm / 1100g
Temperature
Operating: -5 ~ 45°C Storage: -20~70°C
Humidity: 10~90%, Non-condensing
Certifications
CE/FCC
