Quick Details
-
Model Number:
-
T86
-
Brand Name:
-
BEST
-
Product name:
-

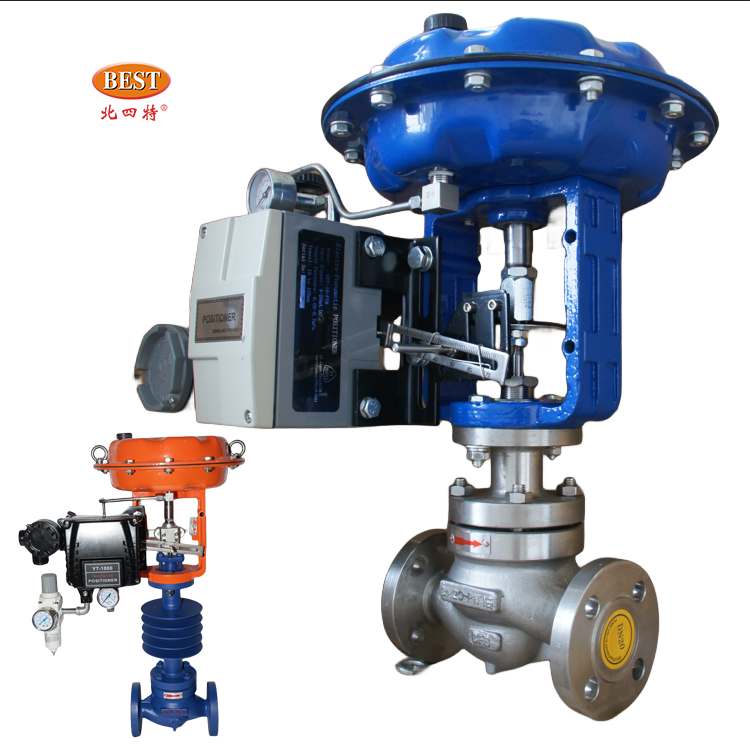

pneumatic flow control valve
-
medium:
-
liquid, gas,air
-
nominal pressure:
-
16bar, 0~600Lb
-
nominal diameter:
-
DN20~200
-
connection:
-
thread, flange
-
function:
-
regulating type
-
body material:
-
stainless steel,carbon steel,chromium-molybdenum steel
-
packing:
-
PTFE, flexible graphite
-
diaphragm:
-
NBR with reinforced polyester fabric
Quick Details
-
Port Size:
-
DN20~200
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
T86
-
Brand Name:
-
BEST
-
Product name:
-
pneumatic flow control valve
-
medium:
-
liquid, gas,air
-
nominal pressure:
-
16bar, 0~600Lb
-
nominal diameter:
-
DN20~200
-
connection:
-
thread, flange
-
function:
-
regulating type
-
body material:
-
stainless steel,carbon steel,chromium-molybdenum steel
-
packing:
-
PTFE, flexible graphite
-
diaphragm:
-
NBR with reinforced polyester fabric
Product Overview
|
Name
|
Nominal diameter
|
Vavle body material
|
Nominal pressure
|
Suitable temp.
|
||||
|
Control Valve
|
DN20-200
|
CS. SS. WCC.WC6.CF8.CF8M.CF3M
|
16,25,40,63,100
150Lb 300Lb 600Lb
|
max.＜595℃
|
||||
|
Others can customize according to your requirements
|
|
|
|
|
||||
Key Specifications/Special Features:
01.Adopt top guide structure, with features of compact design, small size, light weight&competitive price
02.Valve fluid path in accordance with equal section low flow resistance design strictly, small pressure differential loss
03.Valve spool adopts reinforced stem single guide structure, with stable
and excellent performance, can stand fierce impact on valve spool from high speed fluid
04.Actuator adopts multi-spring circular equal layout, using high strength rubber diaphragm, with small structure and large output force
05.Small Kv value, mostly used for controlling micro flow accurately, such as refined chemical ,food additives, medical, electronic and etc.
