*MINI-ITX Motherboard
* With Intel H110 chipset
* 1*DDR4 U-DIMM up to 16GB
* 5*RJ45 Intel I211 network chip
* 13USB, 2COM, 2SATA
* 1PCIe x16, 1 Mini PCIe x1
* Standard ITX; size 170mm x 170mm
- Product Details
- {{item.text}}
Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
EITX-7580
-
CPU:
-
LGA1151
-
RAM:
-
1*DDR4
-
LAN:
-
5
-
Size:
-
170mmx170mm
-
USB Ports:
-
13
-
COM:
-
2
-
CPU Support:
-
6/7th Gen LGA 1151
-
Memory Support:
-
DDR4 1866/2133/2400MHz LRDIMM/RDIMM, MAX16GB
-
MOQ:
-
1pc
Quick Details
-
Maximum Ram Capacity:
-
16GB
-
Application:
-
Desktop
-
Form Factor:
-
ITX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
EITX-7580
-
CPU:
-
LGA1151
-
RAM:
-
1*DDR4
-
LAN:
-
5
-
Size:
-
170mmx170mm
-
USB Ports:
-
13
-
COM:
-
2
-
CPU Support:
-
6/7th Gen LGA 1151
-
Memory Support:
-
DDR4 1866/2133/2400MHz LRDIMM/RDIMM, MAX16GB
-
MOQ:
-
1pc
Products Description

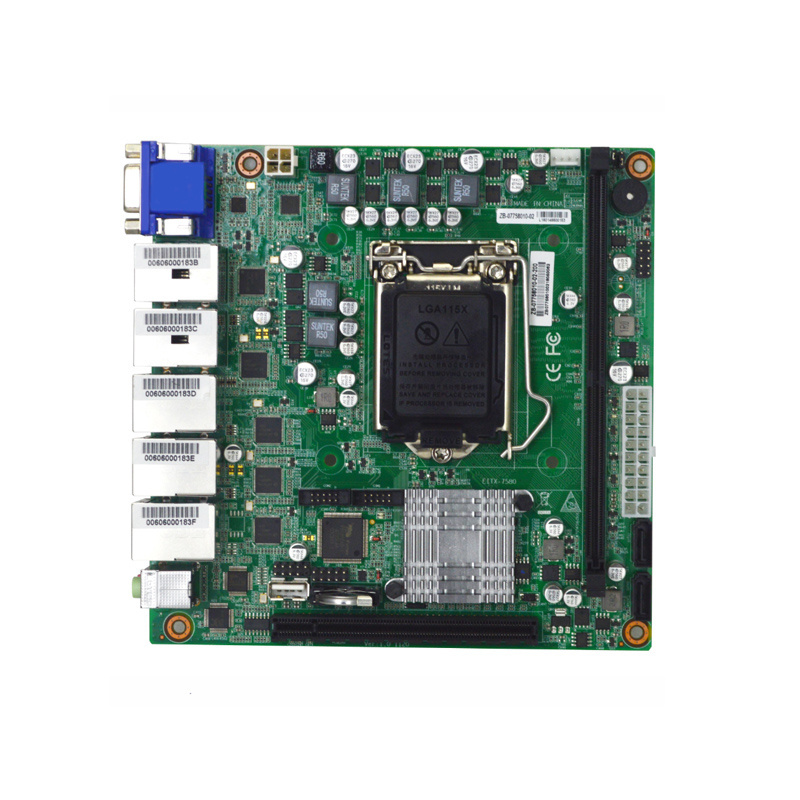

MINI-ITX Motherboard
|
Application
|
|
Mainly used in visual control terminals, network security terminals, intelligent industrial automation control, embedded control
and other intelligent terminals. |
|
|
|||
|
CPU
|
|
Intel Skylake/Kaby Lake-S LGA1151 Processors, support 6th/7th processors.
|
|
|
|||
|
Chipset
|
|
Intel H110
|
|
|
|||
|
Memory
|
|
1*single channel UDIMM sockets Support DDR4 1866/2133/2400 MHz (up to 16GB) | Not support ECC Tips: Skylake CPU Maximum resolution
2133MHZ, Kaby Lake Maximum resolution 2400MHz |
|
|
|||
|
BIOS
|
|
AMI EFI BIOS
|
|
|
|||
|
Super I/O
|
|
Fintek F81866AD 2*RS232 extracted from SIO 1*GPIO contact pin(2x5 pins) extracted from SIO | support 8 channels I/O
|
|
|
|||
|
Ethernet
|
|
5*LAN Intel I211 10/100/1000Mbps LAN support forr adaptive and WOL functions
|
|
|
|||
|
Graphic control
|
|
Intel HD Graphics 630
|
|
|
|||
|
Display interface
|
|
VGA: 1*DB15| Maximum resolution:1920x1200@60Hz DP: 1*DP | Maximum resolution: 4096*2304@60HZ Support VGA+DP Independent dual
displays |
|
|
|||
|
SATA interface
|
|
2*SATA3.0, 1*MSATA
|
|
|
|||
|
USB interface
|
|
4*USB3.0, 6*USB2.0, 1* Built-in USB2.0 1*2x5 pin 2.54mm, can transfer to 2*USB2.0 Tips: Either USB11 or MIni PCIE
|
|
|
|||
|
Serial port
|
|
2*2x5 Pin 2.0mm contact pin COM1-COM6 can transfer to DB9 COM1 COM2 both all support RS232
|
|
|
|||
|
Audio
|
|
Realtek ALC662 audio control chip 1*Green is Line_out 1*pink is Mic_in Two single-hole sockets
|
|
|
|||
|
GPIO
|
|
8-bit programmable digital I/O pin
|
|
|
|||
|
Expansion slots
|
|
PCIE*16(support PCIE 3.0) 1*Mini PCle(support MSATA)
|
|
|
|||
|
Watchdog
|
|
255-level timer causes a reset when overflowed
|
|
|
|||
|
Power requirement
|
|
20+4P ATX supply
|
|
|
|||
|
Working environment
|
|
Temperature: 0～60℃; Humidness: 5%～95% Relative humidity with non-condensation Storage temperature: -40～80℃
|
|
|
|||
|
OS
|
|
Windows7/ Windows8.1/ Windows10/ Linux
|
|
|
|||
