Quick Details
-
Knitting Method:
-
computerized flat knitting machine for shoes upper
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, negotiable
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YIMA
-
Power:
-
1 W
-
Weight:
-
1390 KG
-
Dimension(L*W*H):
-
2920*1130*1830
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
blue computerized flat knitting machine
-
Product Name:
-
Computerized Flat Knitting Machine
-
Name:
-
Computer Flat Kniting Machine
-
Function:
-
Knititing sweaters
-
Certificate:
-
CE ISO
-
System:
-
Double System Flat Knitting Machine
-
Application:
-
Shoes upper, vamp, shoe upper
-
Manufacturer:
-
YES
Quick Details
-
Type:
-
shima seiki type
-
Production Capacity:
-
100%
-
Knitting Style:
-
Warp
-
Knitting Method:
-
computerized flat knitting machine for shoes upper
-
Computerized:
-
Yes
-
Gauge:
-
12 GG, negotiable
-
Knitting width:
-
52 inch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YIMA
-
Power:
-
1 W
-
Weight:
-
1390 KG
-
Dimension(L*W*H):
-
2920*1130*1830
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
color:
-
blue computerized flat knitting machine
-
Product Name:
-
Computerized Flat Knitting Machine
-
Name:
-
Computer Flat Kniting Machine
-
Function:
-
Knititing sweaters
-
Certificate:
-
CE ISO
-
System:
-
Double System Flat Knitting Machine
-
Application:
-
Shoes upper, vamp, shoe upper
-
Manufacturer:
-
YES

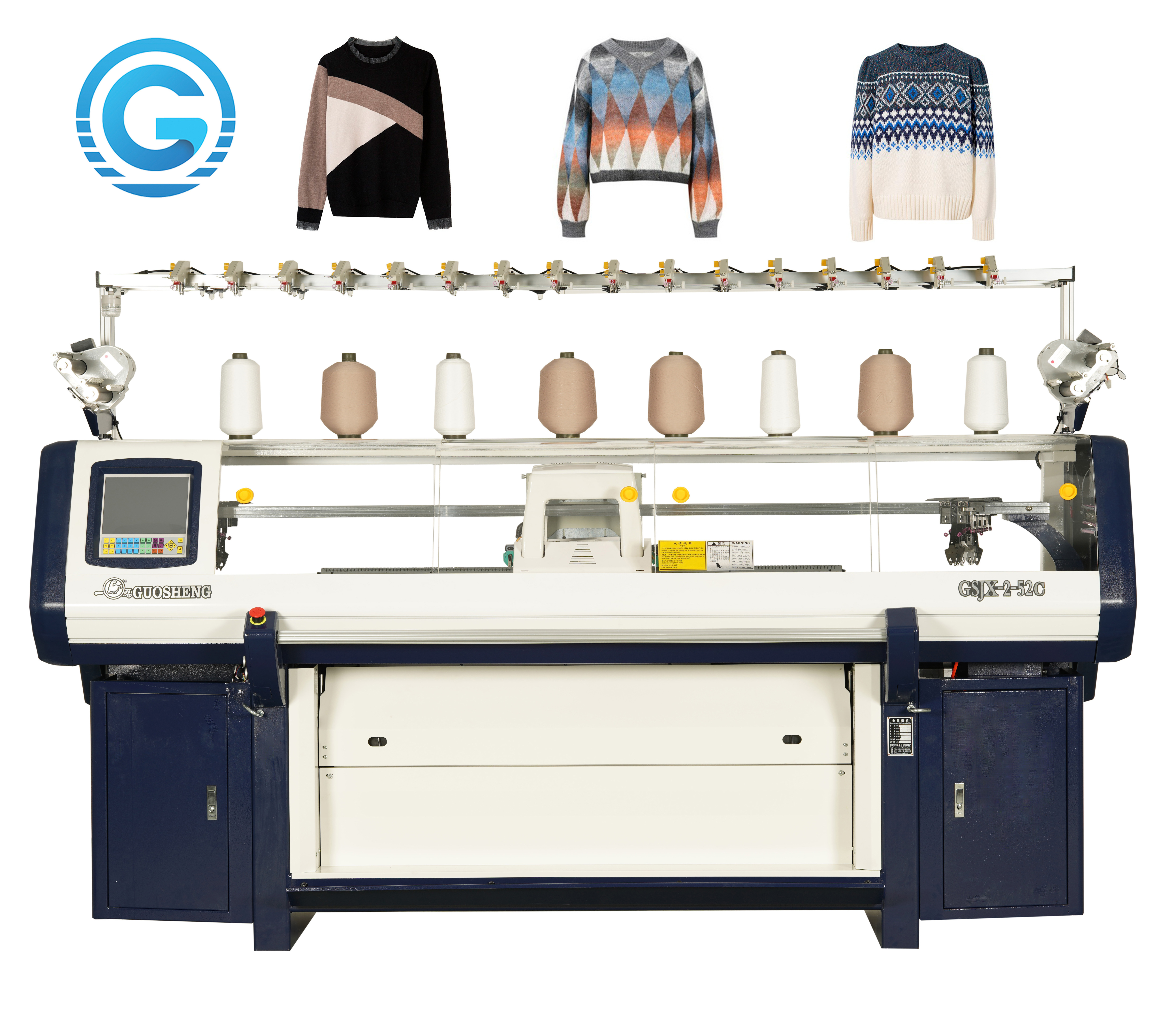

Products Description
|
Model :
|
GSJX-2-52C WITH COMB
|
Knitting speed:
|
Max 1.2m/s
|
|
gauge:
|
3GG---16GG
|
Knitting function:
|
Tranfer,tuck,miss,jacquared,intarsia...
|
|
Knitting Syetem:
|
Double system ,single carriage
|
Drive system:
|
Synchronous belt drive ,AC servo system
|
|
Knitting width:
|
44inch,52inch,60inch,80inch,
100inch
|
Power:
|
Have memorizing fauction at the power-off moment, 220V,single-phase
|
Needle bed:
Divided structure ,steel sheet made from import high quality steel precisely punched and fine polished to reduce the resistance with needles and increase the longevity.
Touch screen:
One-touch screen,easy operation ,satisfy experience .
The display is capable of showing pictures with colors,displaying number og pieces,finished pieces,knitting time,speed,roller,mesh numbers ,yarn nozzle,etc.,whicj can be adjusted any time during the operation of the machine .
Positive yarn provider :
Positive yarn providing ,successfully reduce yarn resistance ,increase knitting efficiency.
Carriage:
The journey of the carriage can be automatically adjusted as per the width of the knitting fabric.The adjustment can be done swiftly and the positioning is precise,which avoids the useless movement and greatly elevates the productivity of the machine.
Side yarn bracket.
This side yarn bracket adopts high performance springs to exert direct force to the part of yarn-picking .It is also able to pick up the redundant yarn when the carriage stops moving upon change of the direction ,making the yarn tensed under a certain tension...
Prode alarming device.
Probe alarming device is a breakthrough as compared with the current monotonous detecting mode where the probes sway from side to side .
