Quick Details
-
Model Number:
-
1J22
-
Shape:
-

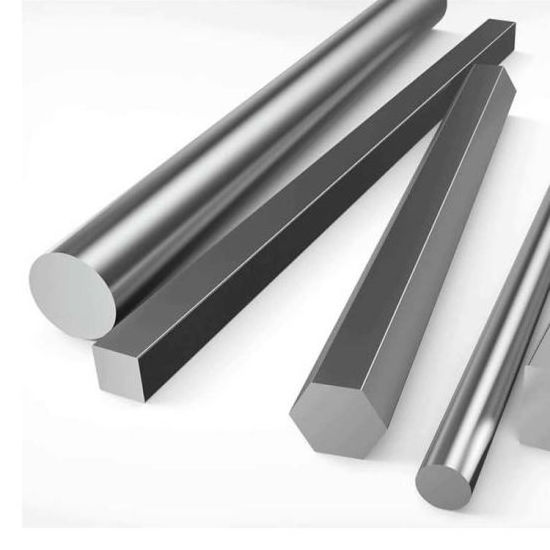

round bar
-
Material:
-
ferro cobalt, cobalt,ferro
-
Chemical Composition:
-
FeCo49V2
-
Product name:
-
Soft Magnetic Alloy 1J50 Permalloy Strip High Permeability 49 alloy
-
Surface:
-
Bright
-
Size:
-
Customized Size
-
Standard:
-
GB/T15002-94
-
Packing:
-
wooden case
-
Certificate:
-
ISO,ROHS
-
M.O.Q.:
-
100kgs
-
Delivery time:
-
15-35 Days
Quick Details
-
Application:
-
Electromagnet pole head, Electromagnet pole head, telephone headset diaphragm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
1J22
-
Shape:
-
round bar
-
Material:
-
ferro cobalt, cobalt,ferro
-
Chemical Composition:
-
FeCo49V2
-
Product name:
-
Soft Magnetic Alloy 1J50 Permalloy Strip High Permeability 49 alloy
-
Surface:
-
Bright
-
Size:
-
Customized Size
-
Standard:
-
GB/T15002-94
-
Packing:
-
wooden case
-
Certificate:
-
ISO,ROHS
-
M.O.Q.:
-
100kgs
-
Delivery time:
-
15-35 Days
Product Description
Soft magnetic alloys are a class of alloys that have high permeability and low coercivity in a weak magnetic field. This type of alloy is widely used in the radio electronics industry, precision instrumentation, remote control and automatic control systems.Together, it is mainly used in two aspects: energy conversion and information processing. It is an important material in the national economy.
Common grades and usages
1)Folding iron-nickel soft magnetic alloy
Grades: 1J46, 1J50, 1J54, 1J76, 1J77, 1J79, 1J80, 1J85, 1J86, 1J34, 1J51, 1J52, 1J65, 1J66, 1J67, 1J83, 1J403
Executive standard: GBn198-88
Uses: Most of the small transformers, pulse transformers, relays, transformers, magnetic amplifiers, electromagnetic clutches,
choke coil iron cores and magnetic shields that work in weak or medium magnetic fields.
2)Folding magnetic temperature compensation alloy
Grades: 1J30, 1J31, 1J32, 1J33, 1J38
Executive standard: GB/T15005-94
Purpose: Magnetic shunt compensation components in electromagnetic circuits and permanent magnetic circuits.
3)Folding corrosion-resistant soft magnetic alloy
Grade: 1J36, 1J116, 1J117
Executive standard: GB/T14986-94
Uses: Electromagnetic devices that work in oxidizing media and hydrazine media.
4 )Folded soft magnetic alloy with high saturation magnetic induction
Grade: 1J22
Executive standard: GB/T15002-94
Purpose: Electromagnet pole head, telephone headset diaphragm, torque motor rotor.
5)Folding high hardness, high resistance and high permeability alloy
Grades: 1J87, 1J88, 1J89, 1J90, 1J91
Executive standard: GB/T14987-94
Uses: Used to make magnetic head chips for tape recorders and tape machines, as well as various high-frequency inductance cores
such as micro-motor transformers, sensors, and magnetic amplifiers.
6)Soft magnetic alloy for folding head
Grades: 1J75, 1J77C, 1J79C, 1J85C, 1J87C, 1J92, 1J93, 1J94, 1J95
Executive standard: YB/T086-1996
Uses: Used to make head shells, chips, and spacers.
Common grades and usages
1)Folding iron-nickel soft magnetic alloy
Grades: 1J46, 1J50, 1J54, 1J76, 1J77, 1J79, 1J80, 1J85, 1J86, 1J34, 1J51, 1J52, 1J65, 1J66, 1J67, 1J83, 1J403
Executive standard: GBn198-88
Uses: Most of the small transformers, pulse transformers, relays, transformers, magnetic amplifiers, electromagnetic clutches,
choke coil iron cores and magnetic shields that work in weak or medium magnetic fields.
2)Folding magnetic temperature compensation alloy
Grades: 1J30, 1J31, 1J32, 1J33, 1J38
Executive standard: GB/T15005-94
Purpose: Magnetic shunt compensation components in electromagnetic circuits and permanent magnetic circuits.
3)Folding corrosion-resistant soft magnetic alloy
Grade: 1J36, 1J116, 1J117
Executive standard: GB/T14986-94
Uses: Electromagnetic devices that work in oxidizing media and hydrazine media.
4 )Folded soft magnetic alloy with high saturation magnetic induction
Grade: 1J22
Executive standard: GB/T15002-94
Purpose: Electromagnet pole head, telephone headset diaphragm, torque motor rotor.
5)Folding high hardness, high resistance and high permeability alloy
Grades: 1J87, 1J88, 1J89, 1J90, 1J91
Executive standard: GB/T14987-94
Uses: Used to make magnetic head chips for tape recorders and tape machines, as well as various high-frequency inductance cores
such as micro-motor transformers, sensors, and magnetic amplifiers.
6)Soft magnetic alloy for folding head
Grades: 1J75, 1J77C, 1J79C, 1J85C, 1J87C, 1J92, 1J93, 1J94, 1J95
Executive standard: YB/T086-1996
Uses: Used to make head shells, chips, and spacers.
|
Chemcial Composition(%)
|
|
|
|
|
||||
|
C
|
S
|
P
|
Mn
|
Si
|
||||
|
≤0.04
|
≤0.02
|
≤0.02
|
≤0.3
|
≤0.3
|
||||
|
Ni
|
Co
|
Cu
|
Fe
|
V
|
||||
|
≤0.5
|
49.0-51.0
|
≤0.2
|
Bal.
|
0.8-1.8
|
||||
Certificate
Packing&Shipping
Company Introduction
Jiangsu DZX Technical Co.,Ltd was established in 2002 and has got ISO9001 International Quality Management System Certificate and ROHS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.
We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of
wire,strip,ribbon,bar,tube,plate and etc.
The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality".
We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of
wire,strip,ribbon,bar,tube,plate and etc.
The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality".
