Quick Details
-
Place of Origin:
-
Guangdong, China
Quick Details
-
Function:
-
Automatic
-
Brand Name:
-
fangsheng
-
Model Number:
-
FS-516
-
Place of Origin:
-
Guangdong, China
Product Description

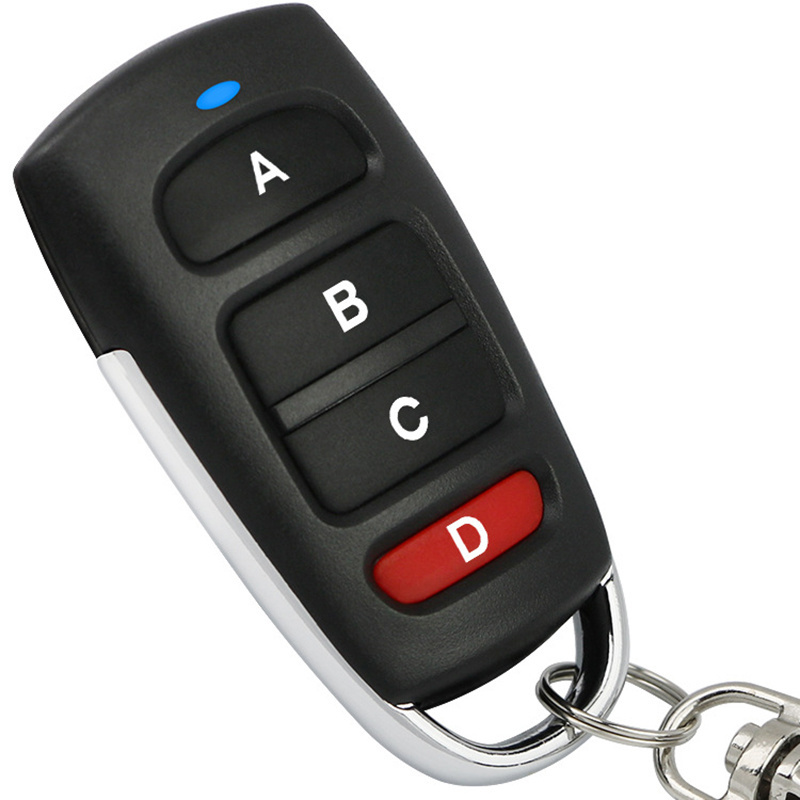

New 433mhz Universal Car Remote Control Key Smart Electric Garage Door Replacement Cloning Cloner Copy Remote
| Model | Small metal push cover 4-button wireless remote control |
| Working frequency | 315/300/433MHZ (other frequencies can be customized) |
| Range | 50-100m (in open environment) |
| Working voltage | 12V 23A |
| Working Temp | -15~75 degrees Celsius |
| Material | ABS and Mteal |
| Color | Black |
| Chip | Duplicator Learning code (1527/2240) |
Application:
Suitable for electric door remote control, retractable door remote control, garage door rem
ote control, motor control remote control, curtain control remote control,
Car and motorcycle remote control, etc.
Test chip:
for 2260 (all manufacturers), 2262 (all manufacturers), PT2264, 5326 (all manufacturers), SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC908 series, 527 (all manufacturers), 1527 ( All manufacturers), 2240 (all manufacturers HCS101/HCS200/HCS201/HCS300/HCS301 (partial code), 5026, 5326, 5326-3, 5326-4, 7, PT2240, HT12E, HT640, PLC168, SMC series 9XX, PT2292, 12L-4SC, HT6026, UM3750AM part of the one-chip computer, etc.
Features:
One-to-one key copy, each key password is saved separately, and can be used repeatedly for one million times. Strong privacy, especially suitable for copying your own remote control at home.
Instructions:
1. Before copying, clear the test code copied during factory production by pressing and holding the two buttons on the front of the remote control (usually the lock and unlock buttons). The LED will flash and then release after about three seconds. Press any button separately, short press the LED light does not light up, long press the LED light flashes three times to indicate that the internal code has been cleared.
2, press and hold the sub-machine to the copy of the key does not let go, the user's sub-machine corresponding to the key is not loose and close to the receiving antenna, you can also adjust the angle of the two remote control to achieve a good copy effect, about three After the second LED flashes three times and then flashes quickly, you can let go. Press this button again, the LED will light, indicating that the learning copy is successful. The same operation completes the copy of other keys.
3, fixed frequency: 315MHz 330MHz 433MHz and customer demand frequency.
Adjustable frequency, the frequency of the machine is generally adjusted around 315MHZ. If the remote control of the guest is this frequency, you can try it directly after the copy is completed. If the remote control of the guest is not this frequency, please adjust it to the receiver with no sense. After the receiver responds, it is farther fine-tuned to the farthest. If there is a remote copy machine, the frequency measurement function can be used for accurate debugging. If the remote control has hardware decoration, please lower 2-3MHz, and finally install the outer casing.
4, recovery function: If you accidentally clear the zero, press the two buttons at the same time, the LED light flashes to indicate that the internal code has been restored.
Features:
One-to-one key copy, each key password is saved separately, and can be used repeatedly for one million times. Strong privacy, especially suitable for copying your own remote control at home.
Instructions:
1. Before copying, clear the test code copied during factory production by pressing and holding the two buttons on the front of the remote control (usually the lock and unlock buttons). The LED will flash and then release after about three seconds. Press any button separately, short press the LED light does not light up, long press the LED light flashes three times to indicate that the internal code has been cleared.
2, press and hold the sub-machine to the copy of the key does not let go, the user's sub-machine corresponding to the key is not loose and close to the receiving antenna, you can also adjust the angle of the two remote control to achieve a good copy effect, about three After the second LED flashes three times and then flashes quickly, you can let go. Press this button again, the LED will light, indicating that the learning copy is successful. The same operation completes the copy of other keys.
3, fixed frequency: 315MHz 330MHz 433MHz and customer demand frequency.
Adjustable frequency, the frequency of the machine is generally adjusted around 315MHZ. If the remote control of the guest is this frequency, you can try it directly after the copy is completed. If the remote control of the guest is not this frequency, please adjust it to the receiver with no sense. After the receiver responds, it is farther fine-tuned to the farthest. If there is a remote copy machine, the frequency measurement function can be used for accurate debugging. If the remote control has hardware decoration, please lower 2-3MHz, and finally install the outer casing.
4, recovery function: If you accidentally clear the zero, press the two buttons at the same time, the LED light flashes to indicate that the internal code has been restored.
