Quick Details
-
Memory Type:
-
DDR3, SODIMM
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
SOC
-
FSB / HT:
-
1600/1333MHz
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Integrated 4th Gen Core i5-4300U 1.90GHz dual core processor
-
Memory:
-
1*DDR3L,up to 8GB
-
Graphics:
-
Integrated Intel HD Graphics
-
Storage:
-
1* SATA3.0/1* 7pin SATA3.0
-
Network:
-
2* GbE
-
Display:
-
1* VGA,1*HDMI,1* LVDS,1*EDP
-
USB:
-
8*USB
-
BIOS:
-
AMI 64Mb Flash ROM
-
Watchdog:
-
Support hardware reset function
-
Operating System:
-
WIN7/10/LINUX
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
Mini PC;Thin Client;Digital Signage etc.
-
Form Factor:
-
170mm x 170mm
-
Memory Type:
-
DDR3, SODIMM
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
SOC
-
FSB / HT:
-
1600/1333MHz
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Integrated 4th Gen Core i5-4300U 1.90GHz dual core processor
-
Memory:
-
1*DDR3L,up to 8GB
-
Graphics:
-
Integrated Intel HD Graphics
-
Storage:
-
1* SATA3.0/1* 7pin SATA3.0
-
Network:
-
2* GbE
-
Display:
-
1* VGA,1*HDMI,1* LVDS,1*EDP
-
USB:
-
8*USB
-
BIOS:
-
AMI 64Mb Flash ROM
-
Watchdog:
-
Support hardware reset function
-
Operating System:
-
WIN7/10/LINUX
Specification
|

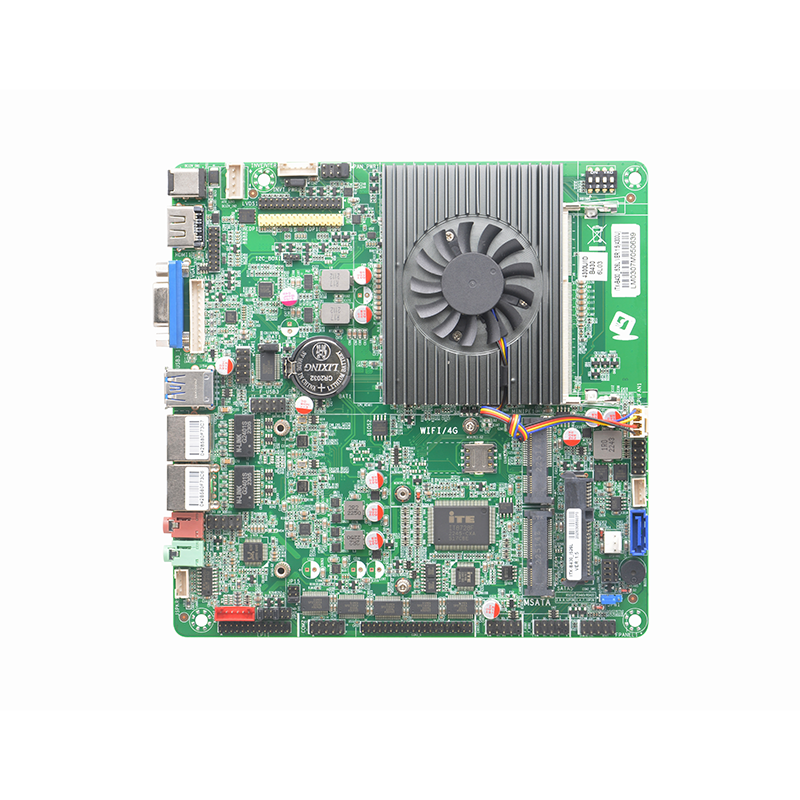

ITX-B430_I526L
(170mm x 170mm) |
Based on Intel Haswell-U/Broadwell-U SOC platform
|
|
|
Integrated 4th Gen Core i5-4300U 1.90GHz dual core processor
|
|
|
Intel HD Graphics 4400 ;
VGA+HDMI+LVDS/eDP
for Display
|
|
|
1*DDR3L 1600/1333MHz SO-DIMM socket, up to 8GB
|
|
|
2*RJ45 Gigabit Eth / 8*USB /
6*COM(RS232/485/422)
/ 1*PS2 / 1*LPT
|
|
|
2*SATA3.0 / 1*mSATA SSD / 1*mini-pcie(Wifi/3G/4G)
|
|
|
Support GPIO ; Watchdog Timer ; Audio power amplifier 2Ω/5W
|
|
|
Provide: 1* DC_Jack 12V Input ; 1*ATX 4pin 12V input
|
Product Description
Application
We have a
comprehensive layout
in the fields of
smart loT and cloud computing
.Our products have been widely used in
i
ndustrial equipment automation (intelligent manufacturing), self-service terminal, network security, digital signage, medical equipment (medical imaging), intelligent terminal, intelligent transportation, cloud server, cloud storage, machine vision, robot, intelligent kiosk, GPS navigation, instrumentation, military field, Government agencies, telecommunications, banking, electricity, vehicle automation (control and display), monitors, video doorbells, portable computers, intelligent teaching, environmental protection equipment, etc.
