Quick Details
-
Disinfecting Type:
-
Other
-
Size:
-
2.8m
-
length:
-
2.8m
-
key words:
-
ECG cable leadwires
-
Functional purpose:
-
for patient monitor
-
Model type:
-
EC-5S1/208
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ems life
-
Model Number:
-
EC-5S1/208
-
Disinfecting Type:
-
Other
-
Size:
-
2.8m
-
length:
-
2.8m
-
key words:
-
ECG cable leadwires
-
Functional purpose:
-
for patient monitor
-
Model type:
-
EC-5S1/208
Specification

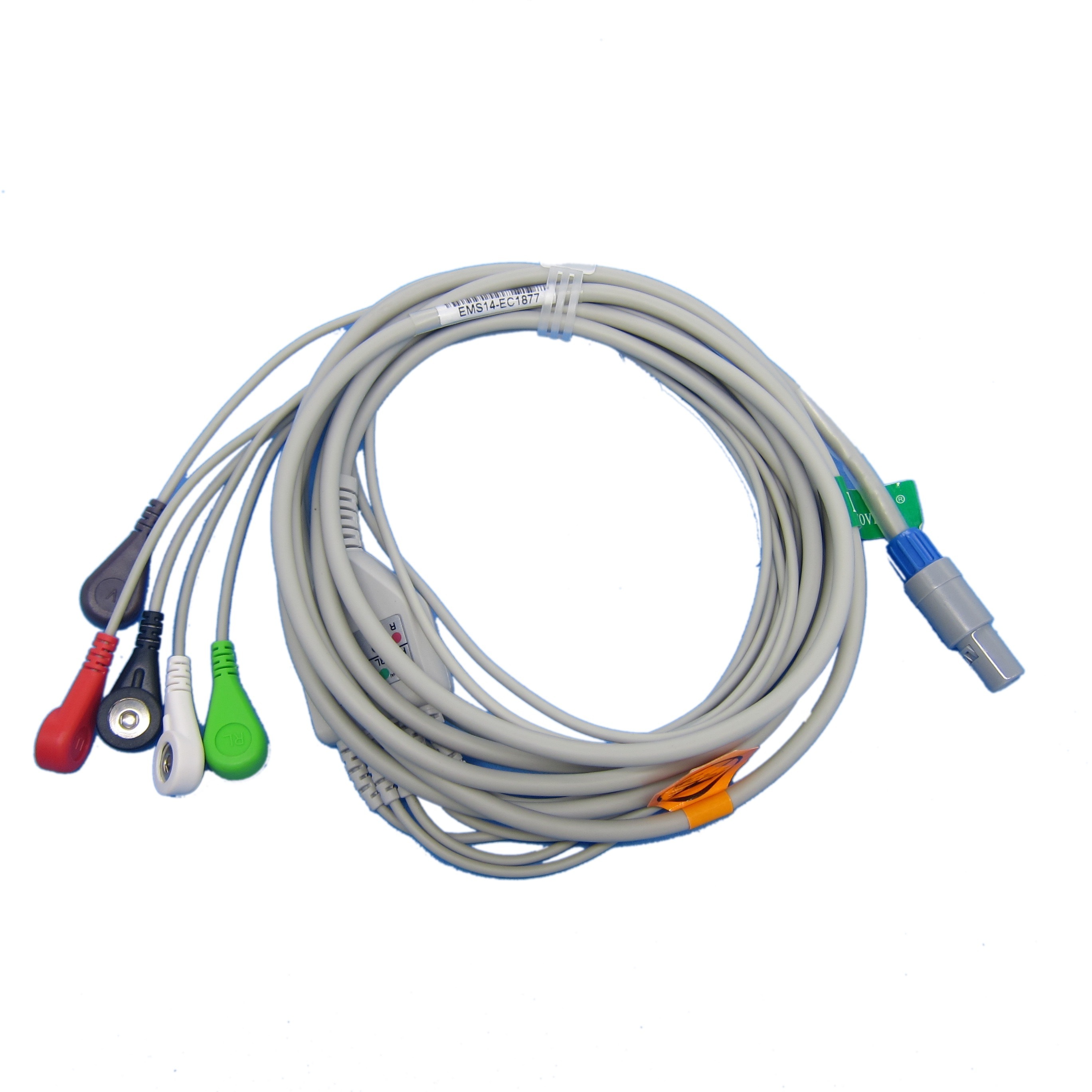

Hot selling Ecg Snap Medical Cable with 5 leads clip snap compatible for CHINA CREATIVE
PRODUCTS DESCRIPTION
【Product Feature】
1. Tightly woven alloy shield, to eliminate interfering signals.
2. Superconducting welding process ensures the quality welding of cable connector, do not fall off.
3. Built-in flexible net to make them more flexibility and not easy to split off.
4. Compliance with:ENISO09919-2009,EN60601-1,1990+A1,1993+A2,ISO10993-5:2009,ISO10993-10:2010.
【Key technical parameter】
1.Cable Resistance:≤1Ω(anti-defibrillator circuit resistance excluded)
2.Insulation Resistance：≥5MΩ。
3.Dielectric Strength：The capacity of dielectric properties between External insulation layer and internal wire can withstand AC1500V 50HZ , which lasted 1 min and no breakdown.
4.Noise 0.3M：＜50uV。
【Working environment】
Environment Temperature：5℃～55℃；
Relative Humidity：≤80％；
Atmospheric pressure： 70kPa ~ 106kPa
Specification
Reminder:
when you select the ECG cable, please check carefully the below points:
1) if the connector is really compatible to your patient monitor ECG socket,such as 5pin or 6pin.
2)if the patient terminal is the right type you want? Snap or clip?
3) if you have special purpose, please let us know, we will try to offer you the professional serves and instruction. 4)we also have the separated ECG trunk cable and leadwires, if you need it please ask our customer service or index in our store.
|
Place of Origin
|
Guangdong,China
|
|
Brand Name
|
emslife
|
|
Stock
|
Yes
|
|
Shelf Life
|
3 years
|
|
Material
|
TPU
|
|
keyword
|
ecg cable
|
