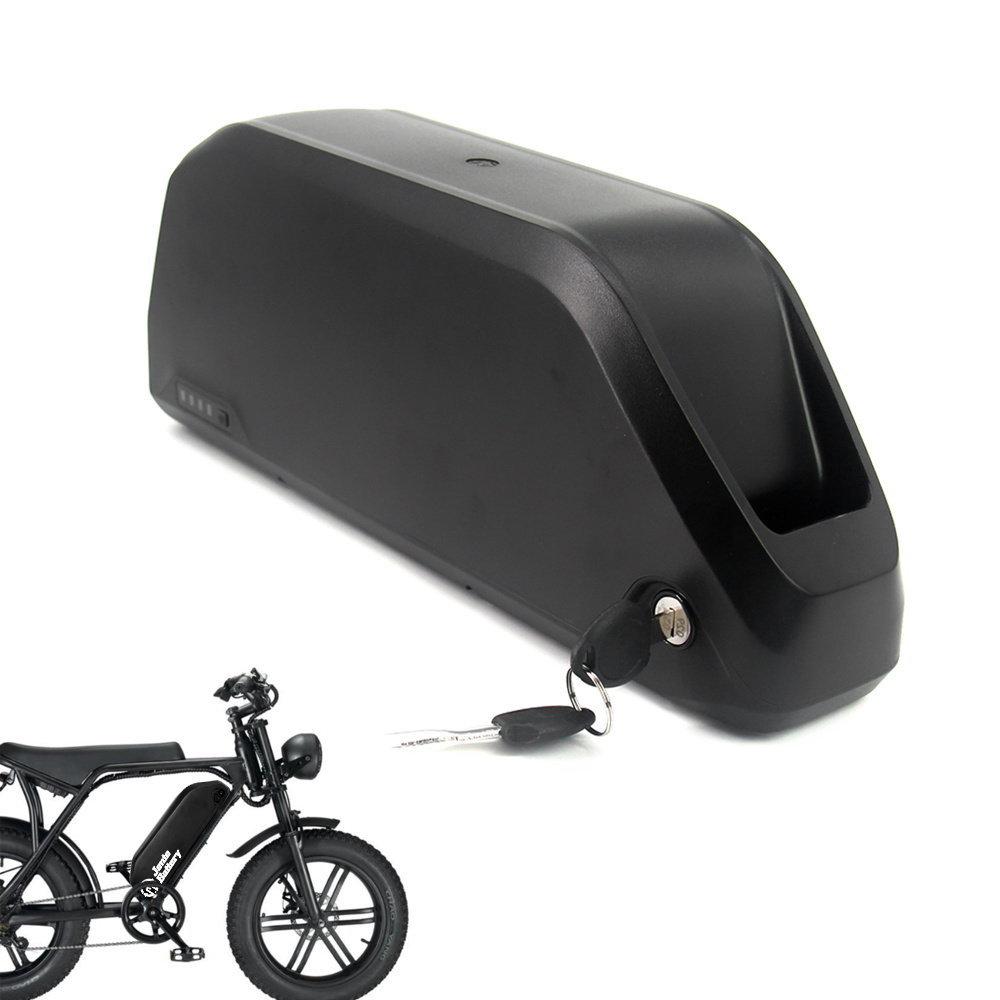

Electric bicycle e bike 36v 48v 52v 60v ebike battery 18Ah 20Ah 25Ah 30Ah lithium batteries for bafang motor

Electric bicycle e bike 36v 48v 52v 60v ebike battery 18Ah 20Ah 25Ah 30Ah lithium batteries for bafang motor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $256

≥100 Pieces

US $245

≥1000 Pieces

US $231

≥5000 Pieces

US $168

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Battery type:: 18650 Rechargeable Li-ion

Nominal Voltage (V):: 36V/48V/52V/60V/ Optional

Nominal Capacity (Ah):: 18AH/21AH/25AH/30AH

Size:: 367*140*92mm

Cycle life:: 1000 Times > 80% Capacity

certificate:: CE,UN38.3,MNDS

Color:: Black & customized

Battery cell:: SamsungINR 35E 18650

Charge:: Fast 4A charger for 6h

Discharge Current:: 15 - 50Amp

Quick Details

Type:: lithium battery

Place of Origin:: Guangdong, China

Brand Name:: JenteBattery

Battery type:: 18650 Rechargeable Li-ion

Nominal Voltage (V):: 36V/48V/52V/60V/ Optional

Nominal Capacity (Ah):: 18AH/21AH/25AH/30AH

Size:: 367*140*92mm

Cycle life:: 1000 Times > 80% Capacity

certificate:: CE,UN38.3,MNDS

Color:: Black & customized

Battery cell:: SamsungINR 35E 18650

Charge:: Fast 4A charger for 6h

Discharge Current:: 15 - 50Amp

Electric bicycle e bike 36v 48v 52v 60v ebike battery 18Ah 20Ah 25Ah 30Ah lithium batteries for bafang motor

- With Turn on/off battery power switch
- 4-hole battery mounting base plate
- High current 8A 3pin charge socket
- 5 pin for 50A discharge terminal
- ultra-large cell capacity

- If you need to order in bulk, please contact customer service to check the discounted price individually

Product Description

Electric Bike Battery Specification
Model:	JNT-N034				JNT-N034	JNT-N034	JNT-N034
Type:	Li ion 18650 Battery	Li ion 18650 Battery	Li ion 18650 Battery
Nominal Voltage:	36V	48V	52V	60V
Nominal Capacity:	10-30AH	10-24.5AH	10-24.5AH	10-21AH
Max Charge Voltage:	42V	54.6V	58.8V	67.2V
Discharge Cut-off Voltage:	28V	36.4V	39.6V	44.8V
Continuous Discharge Current:	20AMP for 150-500W motor	30AMP for 350-1000W motor	40AMP for 1001-2000W motor	50AMP for 2001-3000W motor
peak power discharge	60AMP	90AMP	120AMP	150AMP
Charge Method:	CC/CV				CC/CV	CC/CV	CC/CV
Battery BMS:	Intelligent charge discharge protection				Intelligent charge discharge protection	Intelligent charge discharge protection	Intelligent charge discharge protection
Protection Function:	Over Charger/Discharge, Short Circuit, Over Current, Cell Balancing				Over Charger/Discharge, Short Circuit, Over Current, Cell Balancing	Over Charger/Discharge, Short Circuit, Over Current, Cell Balancing	Over Charger/Discharge, Short Circuit, Over Current, Cell Balancing
Working Temperature:	Charge 0~45℃, 45~85%RH Discharge:-20~60℃, 45~85%RH				Charge 0~45℃, 45~85%RH Discharge:-20~60℃, 45~85%RH	Charge 0~45℃, 45~85%RH Discharge:-20~60℃, 45~85%RH	Charge 0~45℃, 45~85%RH Discharge:-20~60℃, 45~85%RH

Discharge cable connector

JenteBattery Friendly reminder

30cm Anderson connector is selected by default for battery discharge cable connector. If you need a specific battery cable length and connector, please contact us. thank you——JenteBattery.com

Why can we produce high quality batteries

Battery cell impact test

The cells used in the battery have undergone strict impact test to ensure that the battery cells are brand new. The battery cells will not catch fire or explode half an hour after impact.

High current overcharge over discharge

We will overcharge and overdischarge according to the specifications of each battery cell. Most battery explosions occur during
charging. We pay special attention to this test link. For each batch of order battery cells, we will test whether the cell safety
valve starts normally under overcharge environment. Whether over discharged cells will produce high temperature fire.

High and low temperature test

The battery cell will withstand 45-55 ° high temperature discharge. The cell shall be able to discharge normally, without short circuit and spontaneous combustion within the cell, and the capacity shall be greater than 99%. The battery cells shall discharge at - 15-20 ° low temperature, the capacity shall be greater than 80%, and the instantaneous starting current shall be greater than 5C

Jentebattery comprehensive test instrument

After the battery is produced through multiple processes, it needs to go through circuit test to detect whether the internal circuit of the battery is unobstructed and whether each function of the battery is normal. Whether the solder strength of cell connection bridge is qualified, etc. In addition, we will also test whether the core BMS function of the battery, the response speed of charge protection and discharge protection, and the cell balance function of BMS are normal.

Complete battery cycle test

After the completion of battery production, the final whole battery will be charged and discharged at a high speed to ensure that

the cell bridge inside the battery can withstand a long-lasting high-temperature current. The battery shall be continuously
energized and not at high temperature during discharge. Battery capacity output reaches 99.5%. The battery BMS shall work normally during discharge and charging to protect the battery.

JenteBattery Vibration test

Test whether the battery function circuit inside the battery case is welded firmly. Whether the battery pack is firmly fixed in
the battery case. There shall be no abnormal noise during battery vibration. After high-speed vibration, the external functions of
the battery can work normally. The battery packaging needs to be firm.

Jentebattery certificate presentation

WE TAKE SAFETY SERIOUSLY!

Jente strives to make the world’s safest lithium ion batteries. That’s why our products have been rigorously tested and certified
by authorities around the globe, including CE marking in Europe as well as UN38 3 safety standards for shipping risk management
systems are conducted without any environmentally harmful chemicals or gas generation methods used during the production process.
We will be more than happy if you need some certificates-we’ve got them right here!

Warranty after sales

Jentebattery after sales mode

We have independent battery maintenance and after-sales service in Britain, the Netherlands, France, Canada, Australia, Russia and Japan. Maintenance personnel have rich repair experience, and battery maintenance generally takes no more than 2-4 working days. We deliver the batteries that need to be repaired through ups, DPD, FedEx and DHL. If the battery has quality problems during the warranty period, we will bear all expenses. If the battery has quality problems within three months, we will replace it with a new battery free of charge. At the same time, we support the storage of the batteries you ordered to help you maintain the batteries daily. You can ship quickly from the warehouse when you need it.

Other HOT Ebike batteries

www.JenteBattery.com

For more battery styles, please click>>>

About transportation

Shipping by Train, Car, Ship, Plane

We can send batteries in more than 80% of countries. There will be different transportation modes according to different countries. Our delivery methods include DDP, DAP, CIF and EXW. The modes of transportation include express (5-7 working days), air transportation (11-13 working days in Europe, Canada, 7-10 working days in the United States and Australia), sea transportation (30-35 working days), automobile (30-35 working days) and train (25-30 working days).
