Hot sale!! Air Slide Fabric for Cement Plant Conveyor Belt/Airslide

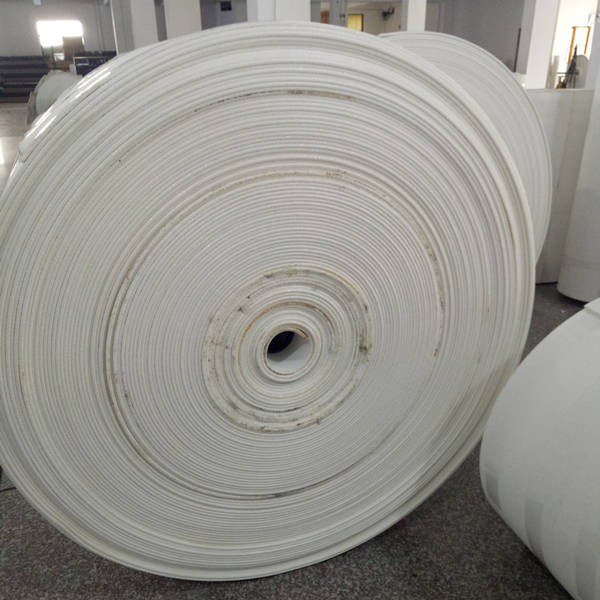

The polyester air slide canvas is made of special yarns by special woven techniques. Adequate strength, thickness, tightness and perfect dimensional stability, this product enjoys good fame at home and abroad.

Should you inquire any further questions, please be free to send me a message. I'll reply within 24 hours.
1.Material: 100% Polyster yarn
Tickness: 5-6mm
2.Air permeability:0.4-10KPa at 0.2MPA 2M3/M2 min
3.Temperature resistance :180°C
4. Tensile strength:warp: ≥425 N/mm
5.Resistance force:1.2~1.3Kpa
6.No stretch, no deformation, no delamination, long life time
7.Canvas warp and weft clear, surface clean and smooth, thickness is even, size is stable
8.High temperature resistance and dementional stablity
9.small moisture absorption, low adhesion, antisepsis, mold control, high strength, friction resisting, resistant to impact.
10.Applications: mainly cement inudstry, also for power plant, chemical industry and metallurgy

The new breathable layer is developed by our company. it is suitable for pneumatic conveying chutes for cement, alumina and other powder materials, as well as pneumatic conveying devices for other powder and granular materials.Such as train and car bulk powder tanker. It is used as a gasification bed to mix materials with air in a gasification state and has good fluidity so as to improve the conveying efficiency.If it is used in cement raw meal homogenizing storehouse, cement raw meal mixing can be homogenized.

Pneumatic conveying devices and gasification bed devices using the breathable layer have been widely used in metallurgy, building materials, chemical industry, power plants, food and transportation.Good results have been achieved to replace the traditional belt conveying and spiral conveying. Since the material is in a gasification state during transportation, it has good fluidity and the equipment is not damaged by friction.The maintenance amount of the equipment is reduced, the materials are transported in a closed chute, no flying loss of the materials is caused, the environment is not polluted, and good sanitary exchange is achieved.
