Quick Details
-
Voltage:
-
110v / 220v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Worth-IT
-
Dimension(L*W*H):
-
L621*W364*H474MM
-
Weight:
-
32 KG
-
Certification:
-
CE
-
Tape Sepcificatio:
-
19.2-19.6mmW X 100-130MIC (Thickness)
-
Tape type:
-
Opp film or Paper tape
-
Arch size:
-
470 X 200 mm
-
Banding size:
-
Max:460X200mm Min:30X10mm
-
Power supply:
-
220V/110V 50HZ/60HZ 1Phase
-
Banding speed:
-
28 PCS/M
-
Banding tension:
-
5-40 N
-
Control system:
-
PLC+touch screen
-
Welding method:
-
Heat sealing
-
Outline size:
-
L621*W364*H474mm
Quick Details
-
Packaging Type:
-
Paper Tape & Opp Film
-
Packaging Material:
-
Plastic, Paper
-
Driven Type:
-
Electric
-
Voltage:
-
110v / 220v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Worth-IT
-
Dimension(L*W*H):
-
L621*W364*H474MM
-
Weight:
-
32 KG
-
Certification:
-
CE
-
Tape Sepcificatio:
-
19.2-19.6mmW X 100-130MIC (Thickness)
-
Tape type:
-
Opp film or Paper tape
-
Arch size:
-
470 X 200 mm
-
Banding size:
-
Max:460X200mm Min:30X10mm
-
Power supply:
-
220V/110V 50HZ/60HZ 1Phase
-
Banding speed:
-
28 PCS/M
-
Banding tension:
-
5-40 N
-
Control system:
-
PLC+touch screen
-
Welding method:
-
Heat sealing
-
Outline size:
-
L621*W364*H474mm
Product Description
damage- free banding and green package
Banding machines have been a cost and labor-saving solution for many industries, such as pharmacy, printing, graphic, dairy products, currency industries. This banding machine uses a heat sealing system to bond the material together to form a nice tidy seal around the item. There have Paper tape and OPP Film material for choose, Bundling, labeling and reducing packaging volumes in the wood industry, Bundling with printed banding eliminates the need for self-adhesive labels, with no residue or mark left on the product
|
Model
|

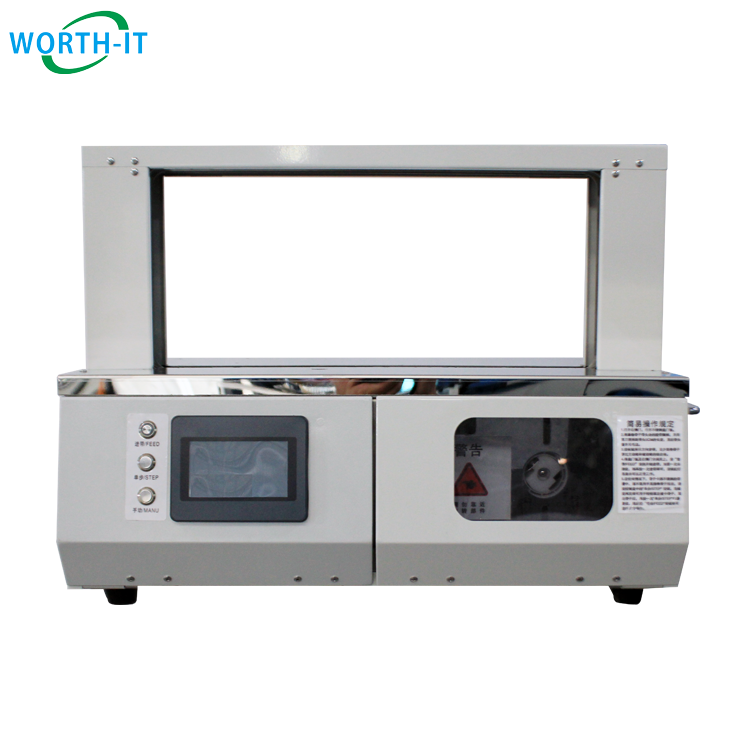

Table top banding machine WK-20
|
|
Tape Size
|
19.2-19.6mm Width X 100-130MIC (Thickness)
|
|
Tape type
|
Opp film or Paper tape
|
|
Arch size
|
470 X 200 mm
|
|
Banding size
|
Max：460X200mm Min：30X10mm
|
|
Control system
|
PLC+Touch Screen
|
|
Speed
|
28 PCS/M
|
|
Outline size
|
L620xW365xH480mm
|
Advantages
|
Our banding machine advantages
VS
Normal banding machine
|
Normal banding machine
|
|
|
1,
PLC Control System
, enable expansion online connection on production line , Brand OEM on Free
|
1,
PCB Board
, hard to expansion connection, Brand OEM high cost
|
|
|
2,
Special Steel of belt Frame
, long lifetime without deformed ,the size of frame can be customized
|
2, The material of belt frame is soft and easy deform, leads to belt feeding failure
|
|
|
3,
Cooling function
,suitable high resilience items
|
3,No cooling function, easy to break when Binding large elastic articles
|
|
|
4,
Customize lower band plate
, can Binding small and inelastic articles , such as Metal materials (hardware, Circuit board , alum
bar, bank card), shoelaces, tags |
4, cannot band tight of small or inelastic articles
|
|
|
5 , High speed
28pcs per min
|
5, speed 25pcs per min
|
|
|
6,
Serrated ironing knife
, band interface more beauty
|
6 , interface easy warped
|
|
|
7,
OEM customer brand on free
|
|
|
|
8,
Touchscreen operation
with
IO port
for online connection
|
|
|
Easy Operation
connect the power supply
install paper / opp film
click feed then make banding
there have auto banding, manual banding and foot pedal banding for choose
Value added banding techniques
* Plenty space for the message, and the product can remain very visible
* Distinctive on the shelf
* Ideal for Private Label brands
* Flexible and cost-saving
* Much more attractive than self-adhesive labels
* Applicable to high and low volumes
* Also serves as a seal (tamper evident)
* 100% accurate bundling
* Green packaging
* Distinctive on the shelf
* Ideal for Private Label brands
* Flexible and cost-saving
* Much more attractive than self-adhesive labels
* Applicable to high and low volumes
* Also serves as a seal (tamper evident)
* 100% accurate bundling
* Green packaging
Delivery
Machine always have stock , we can make
delivery with 1-3 days
after get payment .
before delivery we will take
machine
t
est video and package photo to customer check and confirm
, and provide
machine use manual , operation video and Routine maintenance.
when you received the machine and meet any operation question , we can
online video call support
you every step of machine operate.
After-sales Service
1.
One-year warranty.
2.
Professional after-sales team
,integrates technology and practical experience to provide technical support.
3.
24-hour service
, provide effective solutions within 24 hours.
4.Worry
free after-sales
, provide support to escort customer normal production.Free service during the warranty period.
5.
Free technical training
with lifelong.
