Quick Details
-
Brand Name:
-
HW
-
Model Number:
-
HW16D
-
Dimension(Long * Breadth * High):
-
5140*3388*3032 mm
-
Type:
-
160HP Hydraulic standard
-
Displacement:
-
9.726 L
-
Name:
-
Bulldozer
-
Operating weight:
-
17000 Kg
-
Blade width:
-
3390 mm
-
Blade height:
-
1150 mm
-
Max pressure:
-
14 MPa
-
Min ground clearance:
-
405 mm
-
Track gauge:
-
1880 mm
-
Original:
-
Chian
Quick Details
-
Machine Weight:
-
17000 KG
-
Dozing Capacity:
-
5.4m³, 4.3m³, 4.5m³, 4.5m3
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Model Number:
-
HW16D
-
Dimension(Long * Breadth * High):
-
5140*3388*3032 mm
-
Type:
-
160HP Hydraulic standard
-
Displacement:
-
9.726 L
-
Name:
-
Bulldozer
-
Operating weight:
-
17000 Kg
-
Blade width:
-
3390 mm
-
Blade height:
-
1150 mm
-
Max pressure:
-
14 MPa
-
Min ground clearance:
-
405 mm
-
Track gauge:
-
1880 mm
-
Original:
-
Chian

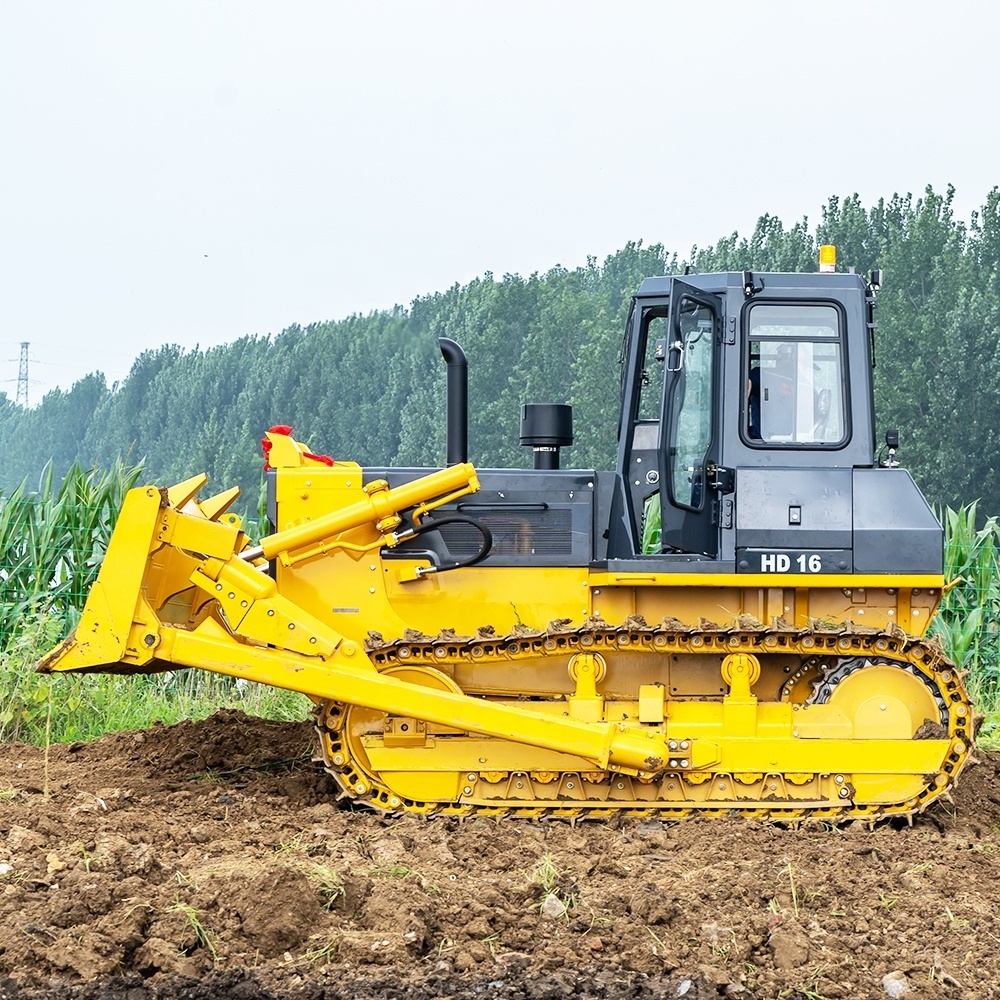

Popular product standard crawler bulldozer factory price for sale
Products Description
HW
series bulldozers, using hydraulic transmission and hydraulic control, with characteristics of high performance, high durability.
HW16DE
bulldozer won the only National Quality Gold Award of Chinese bulldozer industry. A variety of working devices and cabs can meet the needs of various operating conditions, is the ideal and efficient operation equipment for earthwork construction and bulk scraping .
Features
Power System
● The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
● The rated power reaches 175kW, featuring high torque reserve coefficient.
● The radially sealed intake system is applied to effectively prolong the engine life.
● The installed WP12/QSNT-C235 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.
● The rated power reaches 175kW, featuring high torque reserve coefficient.
● The radially sealed intake system is applied to effectively prolong the engine life.
Drive system
● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher
transmission efficiency.
● Homemade self-made drive system features stable performance and reliable quality and has been long proved by the market.
● The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher
transmission efficiency.
● Homemade self-made drive system features stable performance and reliable quality and has been long proved by the market.
Driving/Riding Environment
● The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
● The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
● The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
● The hexahedral cab provides super-large interior space and broad vision and the ROPS/FOPS can be installed depending on specific needs to ensure high safety and reliability.
● The electronic control hand and foot accelerators guarantee more accurate and comfortable operations.
● The intelligent display and control terminal and the A/C and heating system are installed to provide more abundant personalized driving/riding experience and enable you to understand system status at any time, featuring high intelligence and convenience.
Working adaptability
● Homemade stable and reliable chassis system is applicable to diversified severe working conditions.
● The product features long ground length, high ground clearance, stable driving, and good trafficability.
● The straight tilting blade, semi-U blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
● Homemade stable and reliable chassis system is applicable to diversified severe working conditions.
● The product features long ground length, high ground clearance, stable driving, and good trafficability.
● The straight tilting blade, semi-U blade, U-blade, angle blade, coal blade, rock blade, environmental sanitation blade, ripper, and traction frame can be installed depending on specific working condition to achieve higher working adaptability. The optional LED working lamps improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Easy maintenances
● The structural parts inherit the excellent quality of Homemade mature products;
● The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
● The openable large-space side hoods make the repairs and maintenance easier.
● All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.
● The structural parts inherit the excellent quality of Homemade mature products;
● The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
● The openable large-space side hoods make the repairs and maintenance easier.
● All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.
Application
Technical Parameters
|
Model
|
HW16D
|
|
working weight (kg)
|
17000
|
|
Minimum turning radius (mm)
|
4466
|
|
Grounding length
|
2430
|
|
Rated power/Rated speed
|
131/1850
|
|
Overall Dimensions (mm)
|
5140*3388*3032
|
|
Track shoe width (mm)
|
510/560
|
|
Fuel tank（L)
|
320
|
