* Camera head size Φ40 x 60mm
* AHD module, sensor 1/3" CMOS ,1.3MP pixel
* Waterproof and self leveling image
* Camera head casing material stainless steel
* Detachable with pins type connection to Cable Reel
* Field of view 90°,IP68 waterproof
* 8 pcs high intensity white LED * Built in 512hz transmitter option ( The camera size is
Φ40 x 88mm)
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VICAM
-
Model Number:
-
V8-3388
-
Sensor:
-
Self leveling Camera
-
Style:
-
Sewer Camera
-
Camera head diameter:
-
40mm
-
camera lens:
-
sapphire glass
-
Cable length:
-
60m to 120m optional
-
Mini camera lighting:
-
6pcs high intensity white LED
-
Cable mterial:
-
fiberglass push rod cable
-
Special feature:
-
self-leveling image
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Function:
-
Waterproof / Weatherproof, Self leveling
-
Customized support:
-
Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VICAM
-
Model Number:
-
V8-3388
-
Sensor:
-
Self leveling Camera
-
Style:
-
Sewer Camera
-
Camera head diameter:
-
40mm
-
camera lens:
-
sapphire glass
-
Cable length:
-
60m to 120m optional
-
Mini camera lighting:
-
6pcs high intensity white LED
-
Cable mterial:
-
fiberglass push rod cable
-
Special feature:
-
self-leveling image

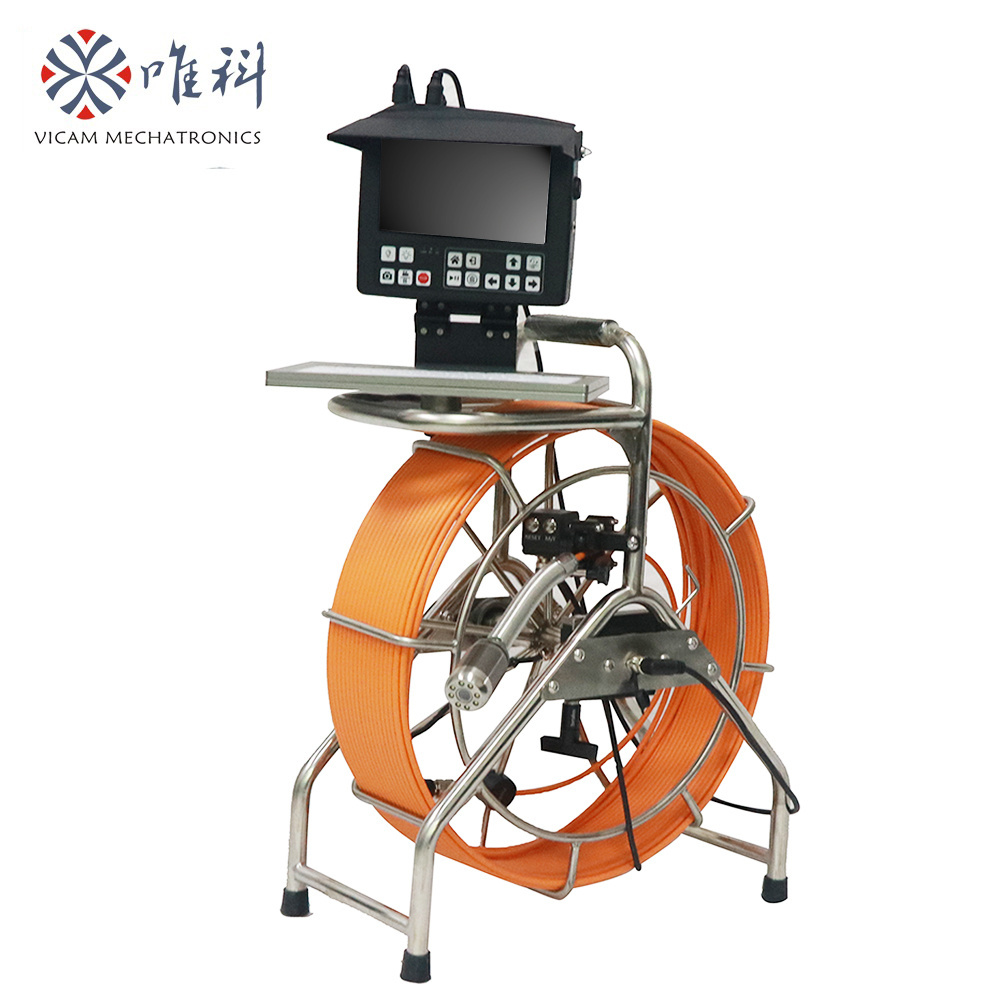

Product Description
New upgraded working platform
360 degree rotation ,adjustable view angle
USB wireless keyboard with silicone pad,
Waterproof and dustproof
Details Images
Specification
|
Model Number
|
V8-3388AHD
|
|
Screen Size
|
8 inch LCD IPS Screen, 1280*720 resolution
|
|
Cable length
|
7mm Fiberglass rod push cable ＆reel
|
|
Camera Diameter
|
1/3 CMOS,1.3MP pixel AHD 40mm waterproof self leveling camera head
|
|
Power supply
|
12V 7000mA Recharge li-ion battery
|
HD 40mm self leveling camera
Waterproof DVR control unit
*8"HD IPS LCD Screen, 1280X720 resolution
*HD DVR SYSTEM with 720P video
*Audio ,video and screen capture function
*Waterproof LCD panel
*USB wireless Keyboard
* USB port to connect storage device
( 16G USB flash disk)
* Built-in 7000mA rechargeable
Li-ion Battery Pack
* Sunshade is included
* Box size 23x20x5cm
*Charging time 7 hours,
working time about 4 hours
Cable Reel
* Fiberglass push rod cable
* Cable diameter 7mm
* Reel size L51*W25*H64cm * Reel brake available
* Cable length 60m
* Pin cap to protect the cable connector
* Updated digital meter counter,error rate less than 1%
Tool bag
*Size: 32x22x25cm
*Easy to carry
*Include:
Camera head
Control unit
Wireless keyboard
Test cable
Link cables
User manual
Camera Skid
The small one: Diameter 75mm
The big one :Diameter 140mm
We also have wheeled skid for option .If you need ,welcome to contact with us.
