Quick Details
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
100
-
Spindle Bore(mm):
-
46
-
Width of bed (mm):
-
336 mm
-
Spindle Motor Power(kW):
-
5.5
-
Max. Turned Length (mm):
-
150
-
Travel (X Axis)(mm):
-
800 mm
-
Travel (Z Axis)(mm):
-
200 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2060*1600*1820
-
Brand Name:
-
DAS
-
Model Number:
-
DS-5-DII
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
4500
-
Machine Type:
-
Flat Bed CNC Lathe Machine
-
Function:
-
Drilling
-
Spindle motor /FANUC:
-
Engraving Milling Machine
-
Spindle speed:
-
4500rpm
-
Color:
-
Customers' Requirement
-
Turret Type:
-
4/6/8 Station Electric Turret
-
Chuck size:
-
6''/8''
-
Material Support:
-
Carbon Steel
-
Spindle nose:
-
A2-5
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
150
-
Year:
-
2020
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
100
-
Spindle Bore(mm):
-
46
-
Width of bed (mm):
-
336 mm
-
Spindle Motor Power(kW):
-
5.5
-
Max. Turned Length (mm):
-
150
-
Travel (X Axis)(mm):
-
800 mm
-
Travel (Z Axis)(mm):
-
200 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2060*1600*1820
-
Brand Name:
-
DAS
-
Model Number:
-
DS-5-DII
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
4500
-
Machine Type:
-
Flat Bed CNC Lathe Machine
-
Function:
-
Drilling
-
Spindle motor /FANUC:
-
Engraving Milling Machine
-
Spindle speed:
-
4500rpm
-
Color:
-
Customers' Requirement
-
Turret Type:
-
4/6/8 Station Electric Turret
-
Chuck size:
-
6''/8''
-
Material Support:
-
Carbon Steel
-
Spindle nose:
-
A2-5
Product Description

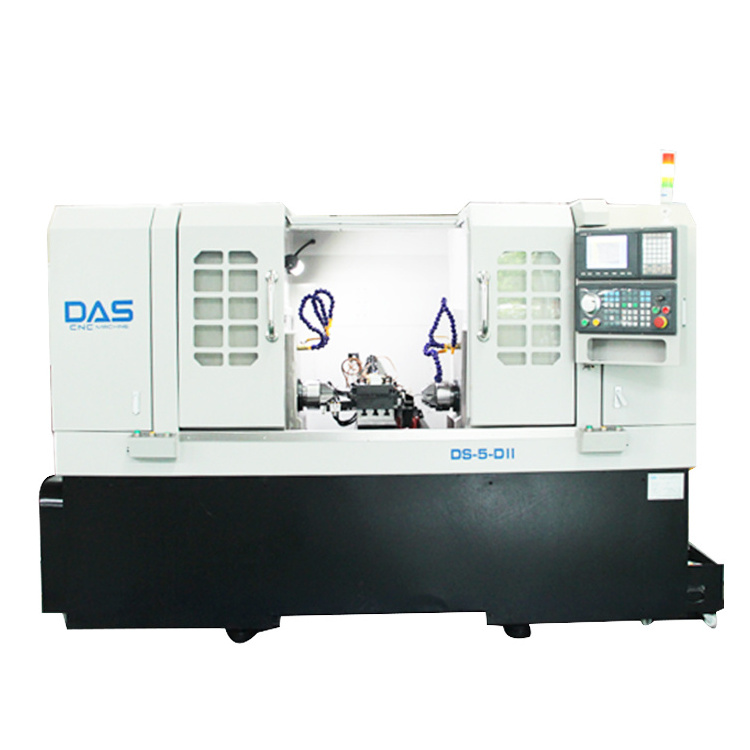

| Model | DS-5-DII |
| Max. axis speed(r/min) | 1-4500 |
| Spindle bore(mm) | 46 |
| Back axis speed (r / min) | 1-4500 |
| Back axis bore (mm) | 36 |
| Height from the center (mm) | 1156 |
| System minimum resolution | 0.001 |
| X 1/ Z1 axis travel (mm) | 800/200 |
| X 2/ Z2 axis travel (mm) | 800/200 |
| X / Z axis rapid traverse speed (m / min) | 20 |
| X / Z axis repeat positioning accuracy | ±0.005 |
| Tool installation method | gang type |
| Back-axis collet type | 161E Forward push |
| Max. processing length(mm) | 150 |
| Max.Swing Diameter(mm) | Φ400 |
| Power(kw) | 13 |
| Weight(kg) | 4.5ton |
| Size (LXWXH)(mm) | 2060*1600*1820 |
