Quick Details
-
Dimension(L*W*H):
-
2530*1020*2250
-
Power (kW):
-
9 kW
-
Weight (KG):
-
4000 KG
-
name:
-
otr tire cutting machine/otr tyre sidewall cutter
-
input:
-
1600-4000mm otr tire
-
output:
-
2 sidewalls and 1 tread
-
capacity:
-
3-10pieces/h
-
equipped with power:
-
three phrase four line
-
machine type:
-
automatically operating
-
material of blade:
-
special alloy
-
cutting period:
-
20-50seconds
-
maintain way:
-
add lubricating oil and grease
-
cooling way:
-
automatically cooling pump
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
xinyutian
-
Voltage:
-
customers request
-
Dimension(L*W*H):
-
2530*1020*2250
-
Power (kW):
-
9 kW
-
Weight (KG):
-
4000 KG
-
name:
-
otr tire cutting machine/otr tyre sidewall cutter
-
input:
-
1600-4000mm otr tire
-
output:
-
2 sidewalls and 1 tread
-
capacity:
-
3-10pieces/h
-
equipped with power:
-
three phrase four line
-
machine type:
-
automatically operating
-
material of blade:
-
special alloy
-
cutting period:
-
20-50seconds
-
maintain way:
-
add lubricating oil and grease
-
cooling way:
-
automatically cooling pump
-
Marketing Type:
-
Hot Product 2022
---Solutions to doubts
Is there large quantites of waste OTR tires stocked in your country?
have you think up of any ways to process them?is it too hard to process the same?
now OTR tire cutting machines can help you to deal with them within least costs and labors.
--- Automatically OTR tire cutting machine is to separate 2 rings(sidewalls) from OTR tire.
Structure:
this machine is made up of rotary plate,rotary gearing,locking device,fix tire bead device,beam,wheel,blade working device.
Main parameter:
(1)model: QKF3600
(2)process range:1600-4000mm (max diamter<4000mm can be processed)
(3)equipped with power:three phrase four line 380V 50Hz
(4)motor power:13.2KW
(5)capacity:3-10pieces/h
(6)weight:4000kg
(7)size: 4300*3600*2900mm(l*w*h)
main advantage:
1.single electric cabinet to control whole operating process
2.automatically cooling water device
3.automatically cutting process,no harm to labors
4.foundation can be made to cover machine for removing tire easily

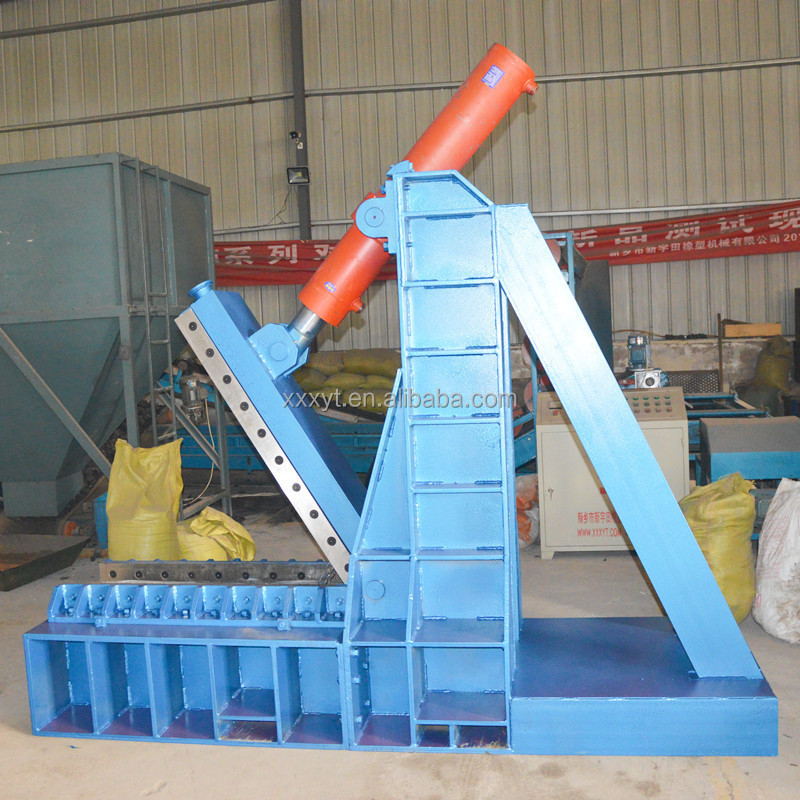

--- OTR tire cutting blocks machine is to cut OTR tire into some pieces.
by connect hydraulic system,the large shear knife from machine make it easier to finish shearing process for giant tires.low energy consumption and convenient movement are recognition by customers.
Output:
main advantage:
1.single electric cabinet to control whole operating process
2.automatically cutting process,no harm to labors
3.foundation can be made to cover machine for removing tire easily
