Quick Details
-
BMS:
-
Already Matched
-
Application:
-
Solar Energy Storage Systems
-
OEM/ODM::
-
Accept
-
Cycle life::
-
≥6000 times
-
Battery Protection::
-
PCM/PCB/BMS
-
Warranty::
-
10 Years
-
Battery Type::
-
Lithium Ion, LiFePO4
-
Capacity::
-
2.56kwh-25.64kwh
Quick Details
-
Model Number:
-
Growatt ARK LV
-
Brand Name:
-
Sail Solar, Growatt
-
Place of Origin:
-
Anhui, China, Guangdong, China
-
BMS:
-
Already Matched
-
Application:
-
Solar Energy Storage Systems
-
OEM/ODM::
-
Accept
-
Cycle life::
-
≥6000 times
-
Battery Protection::
-
PCM/PCB/BMS
-
Warranty::
-
10 Years
-
Battery Type::
-
Lithium Ion, LiFePO4
-
Capacity::
-
2.56kwh-25.64kwh
Products Description
|
ARK LV BATTERY SYSTEM DATASHEETS
|
|
|
|
|
|
|||||
|
Battery Module
|
ARK2.5-A1 (2.56KWH,51.2V,28KG)
|
|
|
|
|
|||||
|
Number of Modules
|
1
|
2
|
3
|
4
|
5
|
|||||
|
Energy capacity
|
2.56KWH
|
5.12KWH
|
7.68KWH
|
10.24KWH
|
12.8KWH
|
|||||
|
Usable capacity
|
2.30KWH
|
4.6KWH
|
6.9KWH
|
9.21KWH
|
11.52LWH
|
|||||
|
Standard Charge/Discharge Current
|
25A
|
50A
|
75A
|
100A
|
100A
|
|||||
|
Dimension(W*D*H)
|
650/260/185mm
|
650/260/365mm
|
650/260/545mm
|
650/260/725mm
|
650/260/905mm
|
|||||
|
Weight
|
28KG
|
56KG
|
84KG
|
112KG
|
140KG
|
|||||
|
Battery Module
|
ARK2.5-A1 (2.56KWH,51.2V,28KG)
|
|
|
|
|
||||
|
Number of Modules
|
6
|
7
|
8
|
9
|
10
|
||||
|
Energy capacity
|
15.35KWH
|
17.92KWH
|
20.48KWH
|
23.4KWH
|
25.64KWH
|
||||
|
Usable capacity
|
13.81KWH
|
16.12KWH
|
18.43KWH
|
20.73KWH
|
23.04KWH
|
||||
|
Standard change /Discharge current
|
100A
|
100A
|
100A
|
100A
|
100A
|
||||
|
Dimension(W*D*H)
|
650*260*1085mm
|
650*260*1266mm
|
650*260*1455mm
|
650*260*1625mm
|
6508260*1805mM
|
||||
|
Weight
|
168KG
|
196KG
|
224KG
|
252KG
|
280KG
|
||||
|
General
|
|
|
|
|
|
||||
|
Battery type
|
Gobalt Free Lithium Iron Phosphate(LFP)
|
|
|
|
|
||||
|
Nominal Voltage
|
51.2V
|
|
|
|
|
||||
|
Operate Voltage Range
|
47.2V-56.8V
|
|
|
|
|
||||
|
IP Protection
|
IP65
|
|
|
|
|
||||
|
Installation
|
Wall-Mounted or Floor Installation
|
|
|
|
|
||||
|
Operation Temperature
|
-10-50°C*
|
|
|
|
|
||||
|
Communication Port
|
CAN
|
|
|
|
|
||||
|
Warranty
|
10 Years
|
|
|
|
|
||||
|
BMS Monitoring Parameters
|
SOC,System Voltage,current, cell voltage,cell temperature,PCBA temperature measurement
|
|
|
|
|
||||
|
Certification&Licensing
|
IEC 62619(cell&pack),CE,CEC,RCM,UN38.3
|
|
|
|
|
||||
Details Images
EASY INSTALLATION
Support Wall Mounted
Floor Installation Requires Extra Base

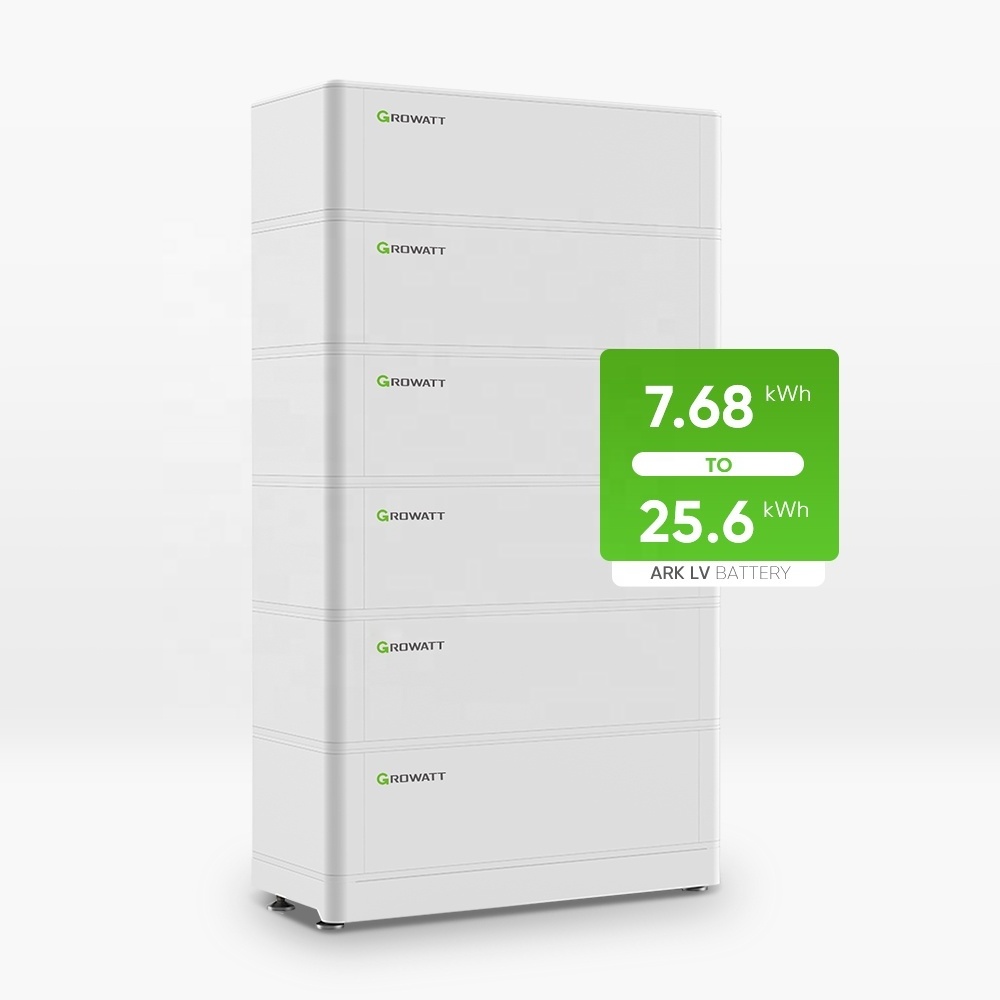

Flexible Capacity Options, 7.68kWh-25.6kWh
Modular & Stacked Design, Simple Expansion
Support Wall Mounted
Floor Installation Requires Extra Base
Flexible Capacity Options, 7.68kWh-25.6kWh
Modular & Stacked Design, Simple Expansion
Ark LV Lithium Ion Battery
Off Grid & Hybrid Inverter Optional , WiFi Module/GPRS Optional, Remote Firmware Upgrade
10 Years Waranty for Battery
Can Communicate Port
With BMS Monitoring Function
Off Grid & Hybrid Inverter Optional , WiFi Module/GPRS Optional, Remote Firmware Upgrade
10 Years Waranty for Battery
Can Communicate Port
With BMS Monitoring Function
Our Lithium battery modules can cooperate with most inverters on the market. More brands are coming soon..
