Quick Details
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
50
-
Applicable Industries:
-
Furniture factory machinery agent, wood
-
Application:
-
Wood drying
-
Feature:
-
High Efficiency, No Cracking
-
Certification:
-
CE Certification
-
Capacity:
-
4CBM(customizable)
-
After-salesService Provided:
-
Online support
-
Effective drying size:
-
4000mm*1000mm*1000mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
JYC
-
Machine Type:
-
Wood drying machine
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
50
-
Applicable Industries:
-
Furniture factory machinery agent, wood
-
Application:
-
Wood drying
-
Feature:
-
High Efficiency, No Cracking
-
Certification:
-
CE Certification
-
Capacity:
-
4CBM(customizable)
-
After-salesService Provided:
-
Online support
-
Effective drying size:
-
4000mm*1000mm*1000mm

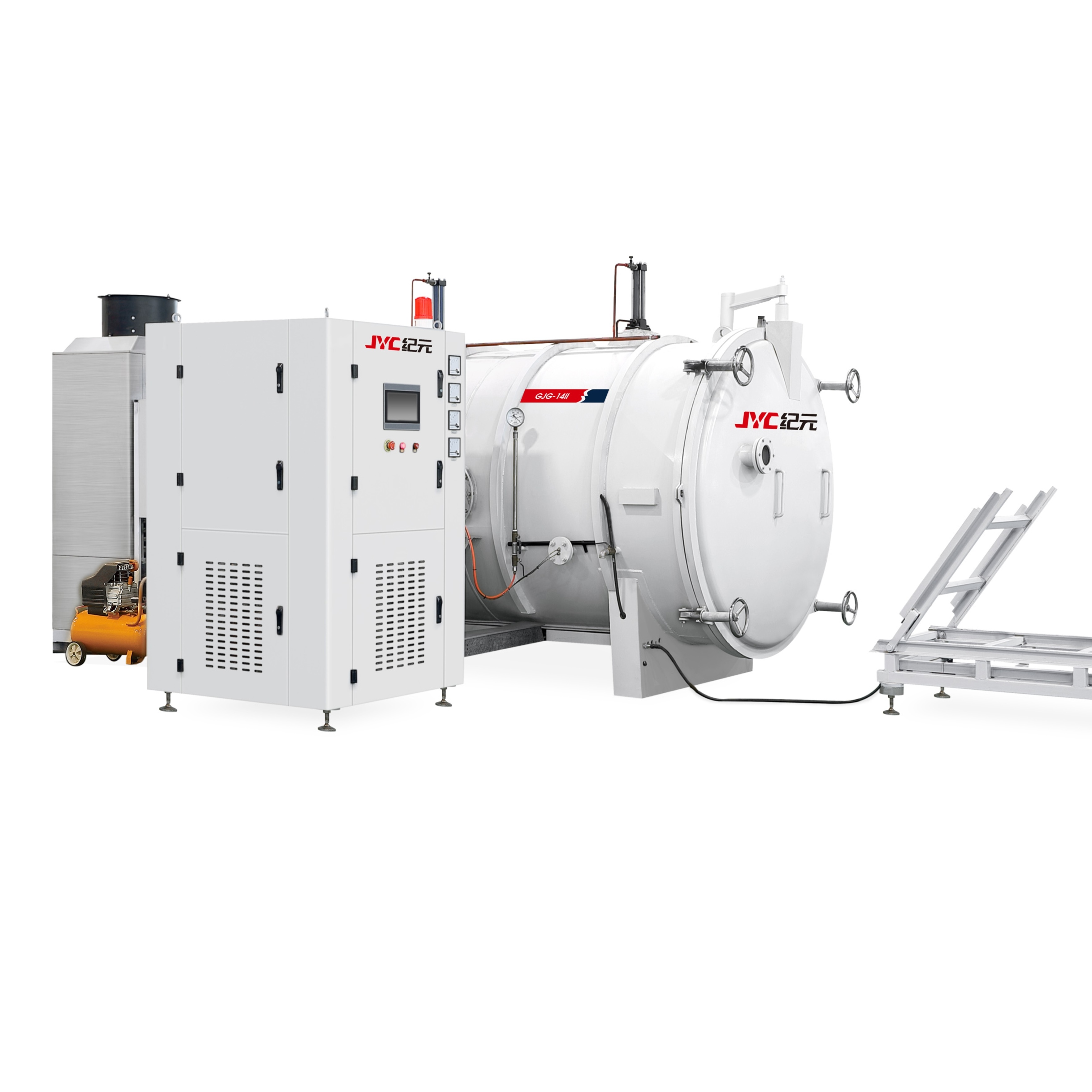

JYC High Frequency Vacuum Wood Dryer (4CBM, 30KW)
Sample & Application
It can be used for
thick wood drying
,
soft/hard wood drying
,
floorboard drying
,
hardwood drying
,
veneer drying
, and
furniture board of the secondary drying
High Frequency Drying Features:
1.
Quick dehydration
, eliminate internal stress, widely used.
2. High frequency heating inside and outside at the same time, the wood is heated evenly , and the moisture is balanced.
3. Combined vacuum system quickly dehydrates and stress relief , drying in seconds.
2. High frequency heating inside and outside at the same time, the wood is heated evenly , and the moisture is balanced.
3. Combined vacuum system quickly dehydrates and stress relief , drying in seconds.
|
Wood Species
|
Start Moisture
|
Thickness
|
End Humidity
|
Drying Time(Hour)
|
||||
|
Extremely Hard Wood (Density>1.0)
|
25%
|
40mm
|
8%-10%
|
65-70
|
||||
|
Medium Hardwood (Density>0.6)
|
25%
|
40mm
|
8%-10%
|
45-50
|
||||
|
Softwood (Density<0.5)
|
25%
|
40mm
|
8%-10%
|
35-40
|
||||
|
The above is just a sample chart for your reference. Basically, the drying time of wood is affected by the wood of density the initial moisture content, and the thickness. If you want more details, you can contact us at any time, we will provide
professional advice for your reference.
|
|
|
|
|
||||
|
Model No.
|
GJG-1II-10(15)B-JY
|
GJG-3II-10(20)B-JY
|
GJG-4II-20(30)B-JY
|
GJG-5II-20(30)B-JY
|
GJG-6II-20(30)B-JY
|
GJG-10II-30(50)B-JY
|
GJG-14II-30(50)B-JY
|
GJG-20II-50(80)B-JY
|
GJG-30II-100(120)B-JY
|
||||||||
|
Capability(m3)
|
1CBM
|
3CBM
|
4CBM
|
5CBM
|
6CBM
|
10CBM
|
14CBM
|
20CBM
|
30CBM
|
||||||||
|
Power
|
AC 380V,50Hz,3p 4wires or custom
|
|
|
|
|
|
|
|
|
||||||||
|
Output power
|
10KW/15KW
|
10KW/20KW
|
20KW/30KW
|
20KW/30KW
|
20KW/30KW
|
30KW/50KW
|
50KW/80KW
|
80KW/100KW
|
100KW/120KW
|
||||||||
|
Frequency
|
6.78MHz/13.56MHz
|
|
|
|
|
|
|
|
|
||||||||
|
Vacuum
|
-0.092MPa
|
|
|
|
|
|
|
|
|
||||||||
|
Loading size(mm)
|
2100*700*700
|
3000*1000*1000
|
4000*1000*1000
|
3000*1300*1300
|
6000*1000*1000
|
6000*1300*1300
|
8000*1300*1300
|
8000*1600*1600
|
8000*2000*2000
|
||||||||
Equipment Features:
1.
Automatic control
, multi-process, sensor monitoring;
2. Wood drying process automatic control, really achieves “Unattended”;
3. Multiple drying process selection, multi-sensor detection device, to ensure the quality of wood drying;
4.
Intuitive Operation Interface
, remote assistance support, remote maintenance, and system upgrade (optional)
We can provide customized services according to the different needs of customers.
Foshan Jiyuan High frequency woodworking Equipment Co., Ltd, brand JYC was established in 1993. And has been committed to the research and development, manufacturing, and sales of high-frequency(radio-frequency) dielectric heating technology and equipment.
Our main products include HF (RF) generator , HF board edge gluing press series , HF frame assembly series , HF wood vacuum dryer series , HF bending wood press series , HF laminate press series , etc. And these machines are widely used furniture, flooring, wood-based panels, packaging, musical instruments, handicrafts, bamboo processing, plastics, textiles, food, medicine, chemicals and many other industries and fields. Our machine has served thousands of domestic and foreign wood enterprises, as well as China and abroad have more than 20 related professional universities, that use JYC's school-use experimental equipment. We have a professional technical team and can provide expert-level technical services, 24-hour online.
Our main products include HF (RF) generator , HF board edge gluing press series , HF frame assembly series , HF wood vacuum dryer series , HF bending wood press series , HF laminate press series , etc. And these machines are widely used furniture, flooring, wood-based panels, packaging, musical instruments, handicrafts, bamboo processing, plastics, textiles, food, medicine, chemicals and many other industries and fields. Our machine has served thousands of domestic and foreign wood enterprises, as well as China and abroad have more than 20 related professional universities, that use JYC's school-use experimental equipment. We have a professional technical team and can provide expert-level technical services, 24-hour online.
JYC will continue to provide the most professional and intelligent high-frequency woodworking machinery for global wood industry users to create the greatest value for users.
1. Advantage of our company
Rich tech experience
: JYC was established in 1993 and has a long search and development history in
high frequency technology;
Source factory : Focus on HF woodworking machines with reliable quality.
After-sale warranty : Perfect after-sale service.
2. How long is your delivery time?
Regular products, the delivery time of 20-30 days, customized products,
delivery time to be the specific actual situation.
3. Payment method
Primary payment method: T/T. Other payment terms can negotiate.
4. Guarantee & After-sale Service?
One year warranty freely (except under artificial circumstances) , and provide life-long maintenance.
5. If I need to customize different working sizes, can you help us produce them?
Yes, we can according to your needs, custom-made corresponding equipment, provide a full range of technical services.
high frequency technology;
Source factory : Focus on HF woodworking machines with reliable quality.
After-sale warranty : Perfect after-sale service.
2. How long is your delivery time?
Regular products, the delivery time of 20-30 days, customized products,
delivery time to be the specific actual situation.
3. Payment method
Primary payment method: T/T. Other payment terms can negotiate.
4. Guarantee & After-sale Service?
One year warranty freely (except under artificial circumstances) , and provide life-long maintenance.
5. If I need to customize different working sizes, can you help us produce them?
Yes, we can according to your needs, custom-made corresponding equipment, provide a full range of technical services.
