Quick Details
-
Model Number:
-
CXMET-Mo-crucible
-
Purity:
-
99.95% Min
-
Shape:
-
barrel-shaped
-
Surface:
-
machined or polished
-
Density:
-
10.2g/cm3
-
Certificate:
-
ISO 9001:2015
-
Melting point:
-
2620°C±20°C
-
Application:
-
For Melting Sapphire Growth ,metallurgy,vaccum coating
Quick Details
-
Dimensions:
-
as request
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
CXMET
-
Model Number:
-
CXMET-Mo-crucible
-
Purity:
-
99.95% Min
-
Shape:
-
barrel-shaped
-
Surface:
-
machined or polished
-
Density:
-
10.2g/cm3
-
Certificate:
-
ISO 9001:2015
-
Melting point:
-
2620°C±20°C
-
Application:
-
For Melting Sapphire Growth ,metallurgy,vaccum coating

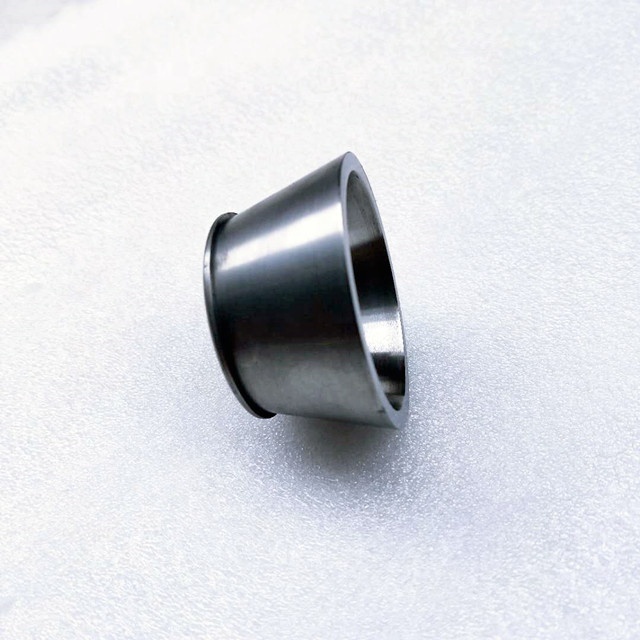

Forged sintering molybdenum crucible used in sapphire single crystal growth furnace
| Item name | molybdenum crucible |
| Purity | 99.95% Mo |
| Working temperature | 1100C-1700C |
| Delivery time | 10-15 days |
| Other Material | TZM, MHC, MO-W, MO-RE, MO-LA |
| Dimension & Cubage | According to your needs or drawings |
| Density |
1.Sintering molybdenum crucible Density: >9.8g/cm3
2.Forging molybdenum crucible Density: >10.1g/cm3 |
|
Application |
1.smelting of rare earth metals
2.heating elements of induction furnace 3. solar energy and sapphire. |
| Product can be produced according to your drawing | |
Size and Tolerance:
| Delivery condition | Size(mm) | Tolerance(mm) | ||
| Diament(mm) | High(mm) | Diament(mm) | High(mm) | |
| Sintering | 10-500 | 10-600 | ±5 | ±5 |
| Forging | 10-130 | 10-200 | ±1 | ±2 |
| Sintering and Mechining | 10-450 | 10-500 | ±0.5 | ±1 |
Features:
1.The overall density of sintered molybdenum crucible is fairy high between 9.6g/cm3 to 10.0g/cm3;
2.Its chemical purity of sintered molybdenum crucible can be above 99.95%;
3.The diameter of sintered molybdenum crucible can be above 200mm;
4.The surface roughness of tooled crucibles does not exceed Rz 6.3;
5.The use temperature of sintered molybdenum crucible should be below 2050oC in vacuum or deoxidize atmosphere.
6.The shapes and dimensions of crucibles are also made in accordance with customers' requirements.
Related products
Packaging and shipping Details:
1.inner packing: plastic foam bag;
2.outer packing: plywood case with strips;
3.We ship worldwide by EMS ,DHL ,UPS ,FedEx ,TNT and so on;
4.We shall be boxed, crated, banded on skids or bundled in such a manner as to assure safe delivery to its destination;
