Quick Details
-
Brand Name:
-
Tenda/OEM
-
Use:
-
FTTH FTTX
-
Product name:
-
Tenda AC7 1200Mbps Wireless Router
-
Power adapter:
-
EU,US
-
Support:
-
IEEE 802.11ac/a/n @5GHz; IEEE 802.11b/g/n @2.4GHz
-
interface WAN:
-
1*10/100/1000Mbps WAN port
-
interface LAN:
-
3*10/100/1000Mbps LAN ports
-
Warranty:
-
1 Year
-
Function:
-
FTTH Optical Network Connection
-
Application:
-
FTTH FTTB FTTX Network
-
Package:
-
Carton Box
-
MOQ:
-
10 Piece
Quick Details
-
Type:
-
Enterprise Router
-
Model Number:
-
Tenda AC7
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tenda/OEM
-
Use:
-
FTTH FTTX
-
Product name:
-
Tenda AC7 1200Mbps Wireless Router
-
Power adapter:
-
EU,US
-
Support:
-
IEEE 802.11ac/a/n @5GHz; IEEE 802.11b/g/n @2.4GHz
-
interface WAN:
-
1*10/100/1000Mbps WAN port
-
interface LAN:
-
3*10/100/1000Mbps LAN ports
-
Warranty:
-
1 Year
-
Function:
-
FTTH Optical Network Connection
-
Application:
-
FTTH FTTB FTTX Network
-
Package:
-
Carton Box
-
MOQ:
-
10 Piece

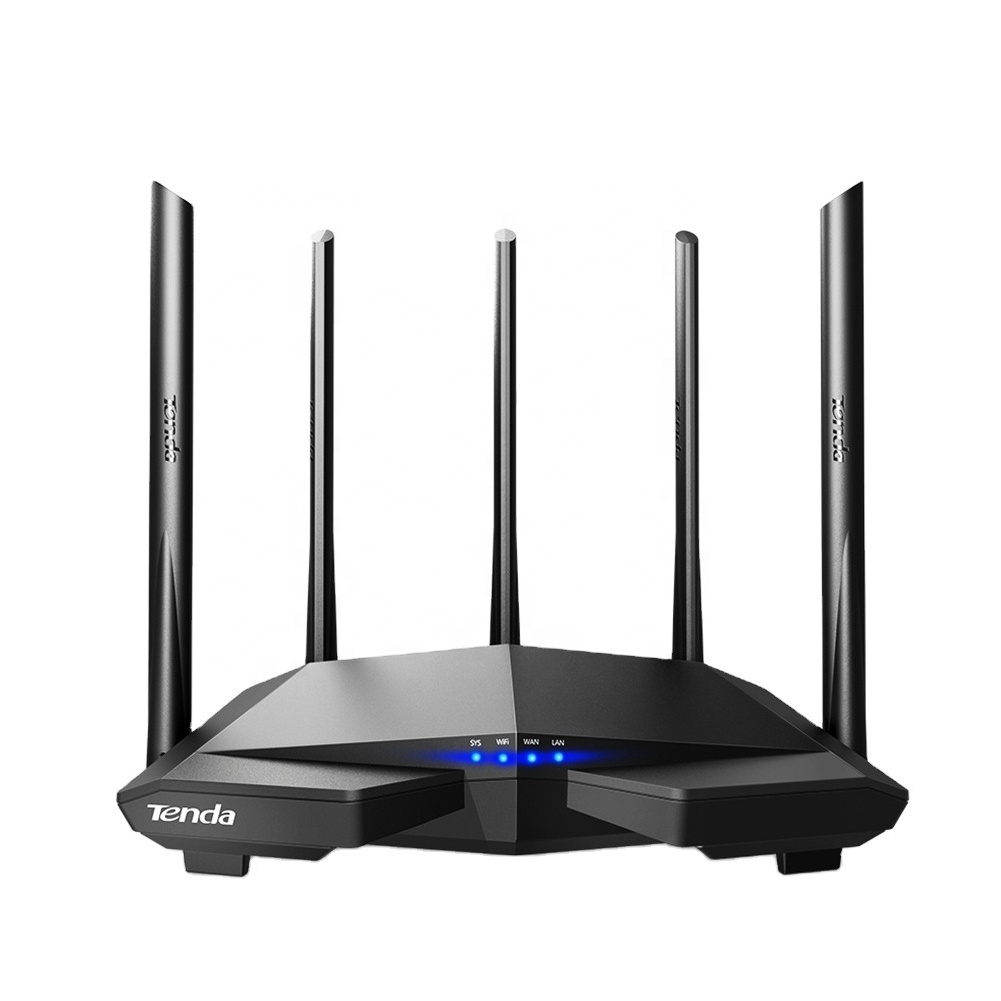

Tenda AC7 AC1200 Router Dual-Band wireless Network Extender WiFi router with High Gain 5 Antennas
Product Description
Tenda AC6
AC7 is a robust and stable dual-band WiFi router dedicated for large houses with multiple rooms. It complies with the 5th
generation of 802.11ac wave2 standard and boasts a concurrent dual-band throughput up to 1167 Mbps. It can perform lossless data transmission at the 5 GHz frequency band where interference is mild, so as to fully leverage every bit of your bandwidth. With the independent power amplifier, Beamforming+ technology, and 5 external 5dBi antennas, AC7 penetrates one more wall than ordinary routers. Powered by the robust CPU and the latest MU-MIMO technology, AC7 offers you fast and stable internet connection, and allows more clients for connecting. The user-friendly function of PPPoE account migration relives you of configuration when change router, offering you and your family speedy and smart wireless internet experience.
generation of 802.11ac wave2 standard and boasts a concurrent dual-band throughput up to 1167 Mbps. It can perform lossless data transmission at the 5 GHz frequency band where interference is mild, so as to fully leverage every bit of your bandwidth. With the independent power amplifier, Beamforming+ technology, and 5 external 5dBi antennas, AC7 penetrates one more wall than ordinary routers. Powered by the robust CPU and the latest MU-MIMO technology, AC7 offers you fast and stable internet connection, and allows more clients for connecting. The user-friendly function of PPPoE account migration relives you of configuration when change router, offering you and your family speedy and smart wireless internet experience.
Product Paramenters
Specification
|
Hardware specifications
|
|
|
|
Standard
|
IEEE802.3,EEE802.3u
|
|
|
lnterface
|
1*10/100Mbps WAN port
3*10/100MbpsLAN ports
|
|
|
Antenna
|
5*6dBi external dual band antennas
|
|
|
Power Supply
|
Input:100-240V-50/60Hz0.2A
Output:DC 9V==1A
|
|
|
LED Indicator
|
System*1,WAN*1,LAN*1,2.4G*15G*1WPS*1
|
|
|
Button
|
1*WiFi on/off,1*Reset/WPS button
|
|
|
Dimension
|
220mm*141.5mm*49mm
|
|
|
Weight
|
Net weight: 310g ±50g Weight: 760g ±100g
|
|
|
LED
|
Sys*1,WAN*1,LAN*1,WiFi*1
|
|
|
Wireless Functions
|
|
|
|
Wireless Standards
|
IEEE802.11 ac/a/n 5GHZ;IEEE 802.11 b/g/n 2.4GHz
|
|
|
Data Rate
|
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
|
|
|
Frequency
|
Simultaneous dualband 24 &5GHZ
|
|
|
Transmit Power
|
CE:＜20dB(2,4G)<23DbM(5G)
FCC:<30dBm
|
|
|
Basic Features
|
SSID Broadcast:Enable/Disable
Transmission Power: high,medium,low Beam forming,MU-MIMO
|
|
|
wireless Security
|
WPA-PSK/WPA2-PSKWPA/WPA2: Wireless Security: En- able/DisableWPS(WiFi Protected Set-up)fast encrvption
|
|
|
Software Function
|
|
|
|
Internet Connection Type
|
PPPOE, Dynamic IP, Static
IP PPPE(Russia), PPTP(Russia), L2TP(Russia)
|
|
|
Operating Mode
|
Wireless Router Mode
AP Mode
Universal Repeater mode,
WISP Mode
|
|
|
DHCP Server
|
DHCP Server
DHCP Client List
DHCP Reservation
|
|
|
Virtual Serve
|
Port Forwaring
DMZ Host
UPnP
|
|
|
Security
|
Client Filter(supports black list and white list)
Parental Control(supports black list and white list)
Remote Web Management
|
|
|
Firewall
|
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
|
|
|
DONS
|
Support DynDNS,Oray.com,88ip
|
|
|
VPN
|
IPsec pass through
PpTP pass through
L2TP pass through
PpTP server
PpTP client
L2TP client
|
|
|
Special Features
|
PPPOE Username/password Clone Smart WiFi Schedule
Smart Power Saving
Smart LED on/ off
Tenda Cloud
Tenda App
|
|
|
Other features
|
Bandwidth Control Guest
NetworkIPTV MAC Clone Static Routing
System Log Backup & Restore configurations Firmware upgrade
online Firmware upgrade able via browser
|
|
