ISO Standard
We will provide CSC Certificate.Customer could use our container to load their cargoes.
Fast Delivery
Usually, we could supply ISO containers from stock.
Stock in Main ports of China
We can provide containers in all chinese ports. Also we could arrange delivery to named address.
- Product Details
- {{item.text}}
Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
l x W x H)(mm): 12032*2352*2690mm
-
Place of Origin:
-
china shenzhen
-
Brand Name:
-
jiaking
-
Product Name:
-
40ft reefer Refrigerated Container for sale
-
Size:
-
20gp 40gp 40hq
-
POL China:
-
shenzhen guangzhou shanghai ningbo
-
Material:
-
Steel
-
Application:
-
Storge Cargoes Transport
-
Certification:
-
CSC
Quick Details
-
Type:
-
Reefer Container
-
Capacity:
-
64 M3
-
External Dimensions(l x W x H)(mm):
-
12192*2438*2896mm
-
Internal Dimensions(l x W x H)(mm):
-
l x W x H)(mm): 12032*2352*2690mm
-
Place of Origin:
-
china shenzhen
-
Brand Name:
-
jiaking
-
Product Name:
-
40ft reefer Refrigerated Container for sale
-
Size:
-
20gp 40gp 40hq
-
POL China:
-
shenzhen guangzhou shanghai ningbo
-
Material:
-
Steel
-
Application:
-
Storge Cargoes Transport
-
Certification:
-
CSC

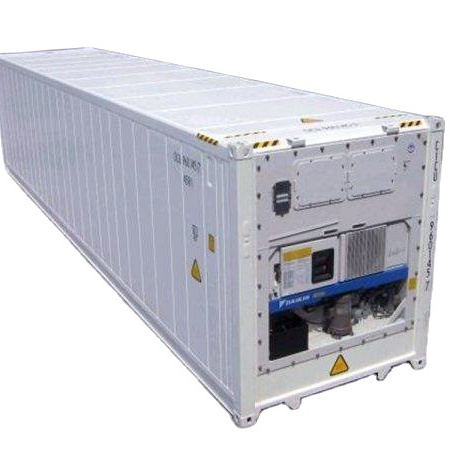

40RH Reefer container
The container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or below deck) throughout the world.
A mechanical refrigeration unit of a “one piece picture frame type" will be fitted to the front end frame in order to control the inside temperature.
Standard reefer containers have the advantages of light weight, high strength and good thermal insulation performance. Variety design can meet the customer’s different needs. At present, we can provide customers with pure cyclopentane, mixed foaming, 245fa and other environmental blowing agent reefer containers. At the same time, we can also provide FRP liner, butt welding aluminum 1iner, high strength steel frame and other lightweight refrigerated reefer design.
Usage:
● International shipment for food,fruit etc.goods that have temperature requirement
● Storage usage
● Cooling warehouse
Specification Parameter
|
40RH Reefer C
ontainer
|
|
|
|
|||
|
95 CODE
|
|
45R1
|
|
|||
|
Classification
|
Length
|
Width
|
Heigth
|
|||
|
External
|
12192mm (0-10mm Deviation)
|
2438mm(0-5mm deviation)
|
2896mm(0-5mm deviation)
|
|||
|
Internal
|
11585mm(0-6mm deviation)
|
2290mm(0-5mm deviation)
|
2500mm(0-5mm deviation)
|
|||
|
Max Gross Weight
|
|
|
32500kgs
|
|||
|
*Tare Weight
|
|
|
4750kgs
|
|||
|
*Max Payload
|
|
|
27750kgs
|
|||
|
Internal Cubic Capacity
|
|
|
66.9cubic meter
|
|||
|
*Remark: Tare and Max Payload will be different produced by different manufactorer
|
|
|
|
|||
Container Pictures
|
Thermo King Description &Feature
|
|
|
|
|||
|
Freon
|
R-134a, about 4.53kgs
|
Electric powe
|
Commercial power
|
|||
|
Phase
|
3
|
Lock box
|
if need that can do
|
|||
|
Motor
|
Thermo King Magnum Plus
|
Alarm device
|
can add it if you need
|
|||
|
Temperature
|
30 degree to under 30 degree
|
Light
|
if you need that can add
|
|||
|
Voltage
|
380V/ 460V
|
PVC curtain
|
if you need that can add
|
|||
|
Hertz
|
50/60
|
Ramp
|
if you need that could do
|
|||
|
Material
|
MGSS,HGSS, Corten,Aluminum Alloy, EPDM,PVC,PE etc.
|
|
|
|||
|
Carrier Description &Feature
|
|
|
|
|||
|
Freon
|
R-134a, about 4.53kgs,
|
Electric powe
|
Commercial power
|
|||
|
Phase
|
3
|
Lock box
|
if need that can do
|
|||
|
Motor
|
Carrier
|
Alarm device
|
can add it if you need
|
|||
|
Temperature
|
30 degree to under 30 degree
|
Light
|
if you need that can add
|
|||
|
Voltage
|
380V/ 460V
|
PVC curtain
|
if you need that can add
|
|||
|
Hertz
|
50/60
|
Ramp
|
if you need that could do
|
|||
|
Material
|
MGSS,HGSS, Corten,Aluminum Alloy, EPDM,PVC,PE etc.
|
|
|
|||
Special Application Scenarios
● Storage usage ● Sea transportation
● Transportation of valuable equipment
● Converted into a house
● Converted into an office
FAQ
Contact Us
Our Service
JIAKING has a stable system of overseas agents and professional service staff.The international agency network covers Europe,America, Australia, SoutheastAsia and the Middle East.which makes your shipment goes on smoothly with a safe and economic way.
|
Domestic service area
|
|
|
|
上海Shanghai
|
天津Tianjin
|
|
|
大连Dalian
|
深圳Shenzhen
|
|
|
厦门Xiamen
|
青岛Qingdao
|
|
|
香港Hongkong
|
宁波Ningbo
|
|
|
广州Guangzhou
|
南京Nanjing
|
|
About Us
Shenzhen Jia King Import & Export Co., Ltd.
Jiaking sells many kinds of the containers,Including new and used,Dry and reefer,standard and customized.
Dry container including : 20GP,40GP,40HQ,45HQ
Reefer container including:20RF,40RF (Carrier & TK & Dakin)
Customized container including:Side open doors / Both end open doors
Also supply customized service,Like nominated color,add logo,exterior and interior renovation and international shipping service
We are not the manufactorer,But our advantage is :
1.Support small quantity ,MOQ is 1pcs;
2.Profession on shipping request,supply more safe shipping advise;
3.Good communication with your shipper or forwarder to hand over the container smoothly
4.17 years shipping experiences to make the container deliver more easy.
