Quick Details
-
Brand Name:
-
YATAI
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000x1200x2000
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
20 kW
-
Extruder Motor Power(kW):
-
20 kW
-
Mold Platen Size(Width)(mm):
-
1000 mm
-
Mold Platen Size(Height)(mm):
-
1500 mm
-
Air Pressure(MPa):
-
20 MPa
-
Air Comsumption(m³/min):
-
10 m³/min
-
Die Head Heating Power(kW):
-
20 kW
-
Accumulator Capacity(L):
-
1000 L
-
Power (kW):
-
20
-
Weight (T):
-
1.5
-
Warranty:
-
1 Year
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
High Quality Energy-saving Automatic Blow Molding Machine For Sale
-
Suitable bottle:
-
liquidlevel line bottles, plastic bottles
-
Applicable raw material:
-
PE/PP/PVC
-
Max volum of bottle:
-
5000
-
Weight:
-
1000kg
-
Power(W):
-
22kw
-
Certification:
-
ISO9001
Quick Details
-
Clamping Force (kN):
-
220
-
Output (kg/h):
-
100 kg/h
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YATAI
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000x1200x2000
-
Screw diameter (mm):
-
65 mm
-
Screw Heating Power(kW):
-
20 kW
-
Extruder Motor Power(kW):
-
20 kW
-
Mold Platen Size(Width)(mm):
-
1000 mm
-
Mold Platen Size(Height)(mm):
-
1500 mm
-
Air Pressure(MPa):
-
20 MPa
-
Air Comsumption(m³/min):
-
10 m³/min
-
Die Head Heating Power(kW):
-
20 kW
-
Accumulator Capacity(L):
-
1000 L
-
Power (kW):
-
20
-
Weight (T):
-
1.5
-
Warranty:
-
1 Year
-
Blow Moulding Type:
-
Extrusion Blow Moulding
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
High Quality Energy-saving Automatic Blow Molding Machine For Sale
-
Suitable bottle:
-
liquidlevel line bottles, plastic bottles
-
Applicable raw material:
-
PE/PP/PVC
-
Max volum of bottle:
-
5000
-
Weight:
-
1000kg
-
Power(W):
-
22kw
-
Certification:
-
ISO9001

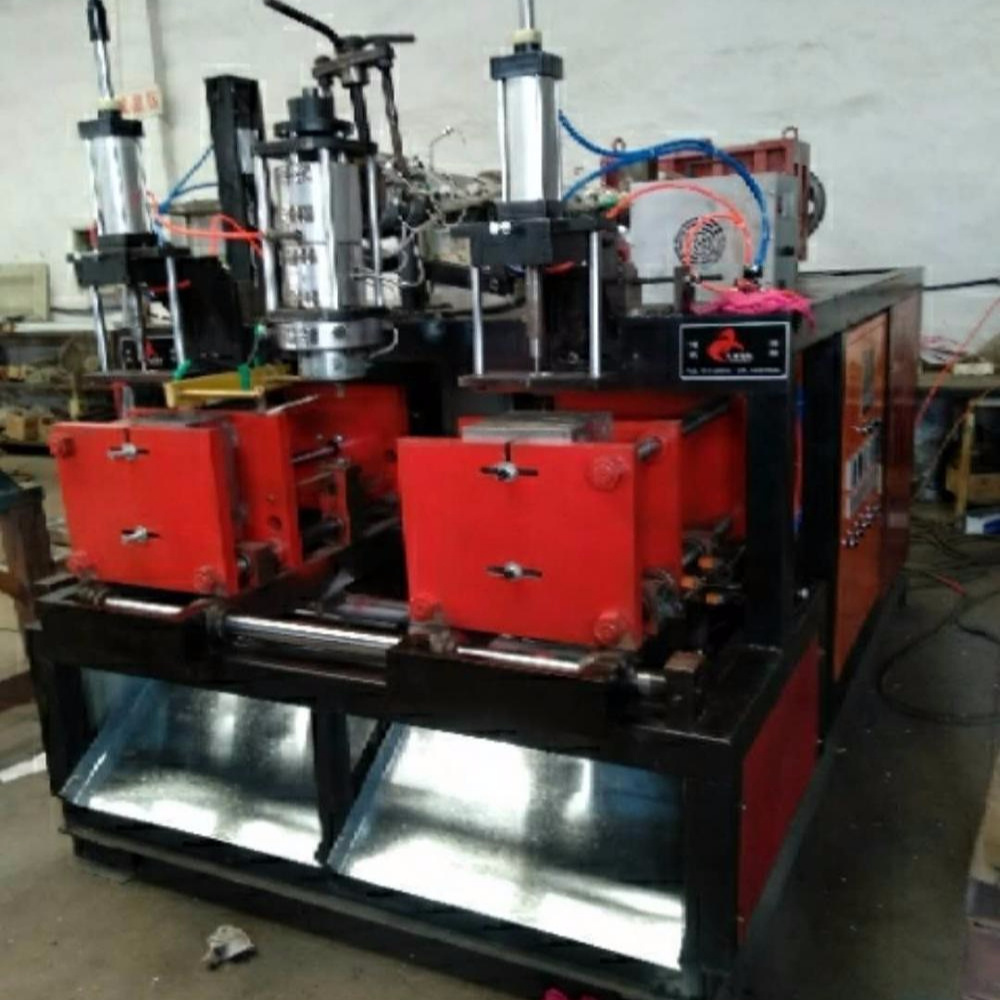

High Quality Energy-saving Automatic Blow Molding Machine For Sale
Product Description
This machine closing moulds by electric powder. Reliable run, low energy consumption, and strong force of closing moulds.
Extruder part adopt frequency converted, automatic temperature controlled! And it is can do single and multi layer bottles, liquidlevel line bottles and plastic bottles etc. that below 5 liter.
Product Specification:
|
Parameters Model |
Double Station |
|
Max. Volume of bottle |
5000 |
|
Max. diameter of bottle |
18 |
|
Theoretical capacity |
800 |
|
Mould sinking |
230 |
|
Mould thickness |
150-220 |
|
Mould width |
303 |
|
Motor powder |
2.2 |
|
Air consumption |
0.5-0.6 |
|
Weight |
1000 |
|
Size (L*W*H) |
2000*1200*2000 |
|
Applicable raw material |
PE/PP/PVC |
|
Speed regulating method |
PLC |
