- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Alec
-
Motor Power:
-
7.5kw
-
Charging Capacity:
-
680L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
45rpm
-
Water Supply Mode:
-
Water Pump
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
3150*1850*3050mm
-
Weight (KG):
-
2250 kg
-
Product name:
-

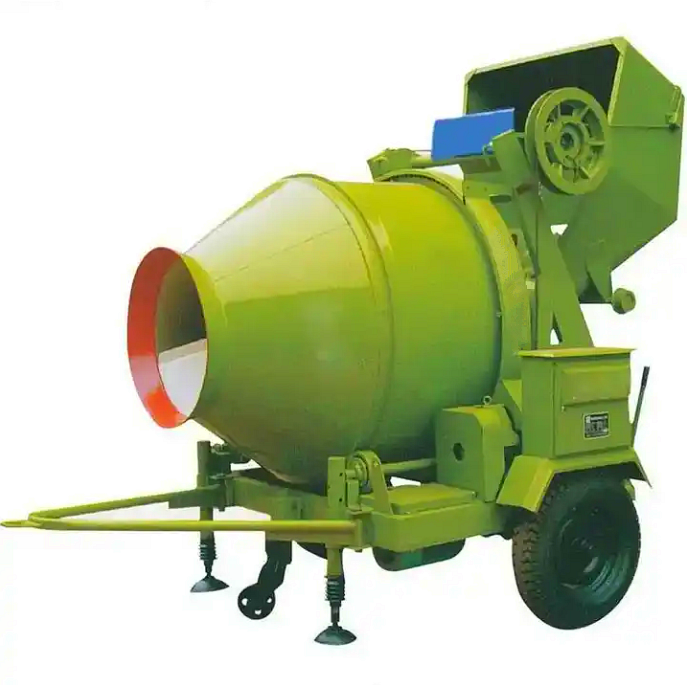

JZM series drum friction mixer
-
Engine:
-
Elctric Diesel
-
Water supply accuracy:
-
≤2%
-
Mixing shaft speed:
-
45
Quick Details
-
Mixing Power:
-
11kW
-
Productivity:
-
18-20m3/h
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
Alec
-
Motor Power:
-
7.5kw
-
Charging Capacity:
-
680L
-
Reclaiming capacity:
-
500L
-
Speed of Mixing Drum:
-
45rpm
-
Water Supply Mode:
-
Water Pump
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
3150*1850*3050mm
-
Weight (KG):
-
2250 kg
-
Product name:
-
JZM series drum friction mixer
-
Engine:
-
Elctric Diesel
-
Water supply accuracy:
-
≤2%
-
Mixing shaft speed:
-
45
Products Description
This series has the characteristics of compact structure, high efficiency, stable quality, good interchangeability, high reliability, and beautiful layout. It can be used for mixing dry hard and plastic lightweight aggregate concrete with ash, and is widely used in construction sites, roads, bridges, and concrete component factories.
Details Images
Application
Producct Display
|
MODEL
|
|
JZC350
|
JZC400
|
JZC450
|
JZC500
|
JZC750
|
|
|
work performance
|
Output capacity |
350L
|
400L
|
450L
|
500L
|
750L
|
|
|
|
Feed capacity
|
560L
|
640L
|
720L
|
800L
|
1200L
|
|
|
|
Maximum productivity
|
10-14 m3/h
|
14~18 m3/h
|
18~20 m3/h
|
18~20 m3/h
|
20~25 m3/h
|
|
|
|
Stirring drum speed
|
14r/min
|
14r/min
|
14r/min
|
13r/min
|
13r/min
|
|
|
|
Aggregate Maximum Particle Size
|
40-60 mm
|
40-60 mm
|
40-60 mm
|
40-60 mm
|
40-60 mm
|
|
|
|
Water supply accuracy
|
<=2%
|
<=2%
|
<=2%
|
<=2%
|
<=2%
|
|
|
Motor
|
Stirring motor
|
4.5kw
|
4.5kw
|
7.5kw
|
7.5kw
|
15kw
|
|
|
|
lift motor
|
4.5kw
|
4.5kw
|
7.5kw
|
7.5kw
|
7.5kw
|
|
|
|
water pump motor
|
0.75kw
|
0.75kw
|
0.75kw
|
0.75kw
|
1.1kw
|
|
|
Total weight
|
|
1970kg
|
2200kg
|
2450kg
|
3000kg
|
4200kg
|
|
