Quick Details
-
Brand Name:
-
Cryo Chains
-
Dimension(L*W*H):
-
815*815*1245mm
-
Weight:
-
5000
-
Material:
-
Stainless Steel
-
Working pressure:
-
2.3Mpa
-
Application:
-
LN2 LO2 LNG LAr
-
After sales Service Provided:
-
Free spare parts
-
After-sales Service Provided:
-
Video technical support
-
After-sale Service Provided:
-
Online support
-
After -Warranty Service:
-
Video technical support
-
AfterWarranty Service:
-
Online support
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
Quick Details
-
Capacity:
-
370L
-
Max Working Pressure(MPa):
-
0 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Cryo Chains
-
Dimension(L*W*H):
-
815*815*1245mm
-
Weight:
-
5000
-
Material:
-
Stainless Steel
-
Working pressure:
-
2.3Mpa
-
Application:
-
LN2 LO2 LNG LAr
-
After sales Service Provided:
-
Free spare parts
-
After-sales Service Provided:
-
Video technical support
-
After-sale Service Provided:
-
Online support
-
After -Warranty Service:
-
Video technical support
-
AfterWarranty Service:
-
Online support
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
|
Liquid Nitrogen Biobank Freezers:
|
|
|
|
|
||||
|

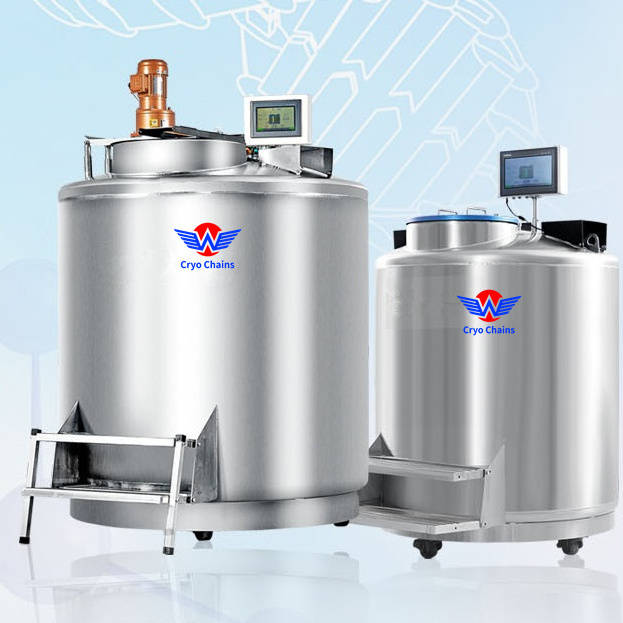

IVF Clinic Medical Laboratory Cryo Equipment Biobank Gas-Phase Liquid Nitrogen Tank For Plasma Semen Tissue And Organ Bank
|
|
|
|
|
||||
Product Description
Liquid Nitrogen Biological Sample Storage Freezer:
Biobank Series provide users with automatic, secure and reliable cryogenic liquid nitrogen freezing systems. Tanks are made of high quality stainless steel, equipped with casters and brakes, and wide neck opening for easy to pick and place specimen.Specimen could be stored in liquid or vapor, and control system provides high convenience and security. To achieve the most economical operation, our design ensures the lowest consumption of liquid nitrogen and the maximum storage capacity of the specimen.
Products Details
|
MODEL
|
YDD-350-VS/PM
|
YDD-450-VS/PM
|
YDD-550-VS/PM
|
YDD-750-VS/PM
|
YDD-850-VS/PM
|
|
LN2 Capacity Under Platform Vapor Storage (L)
|
55
|
55
|
80
|
80
|
135
|
|
LN2 Capacity (L)
|
350
|
460
|
587
|
783
|
890
|
|
Neck Opening (mm)
|
326
|
326
|
445
|
445
|
465
|
|
Usable Internal Height (mm)
|
600
|
828
|
600
|
828
|
773
|
|
Outer Diameter (mm)
|
875
|
875
|
1104
|
1104
|
1190
|
|
Overall Height (mm) Containing Instrument Height
|
1326
|
1558
|
1321
|
1591
|
1559
|
|
Weight Empty (kg)
|
219
|
277
|
328
|
372
|
441
|
|
Operation Height (mm)
|
1263
|
1212
|
1266
|
1216
|
980
|
|
Weight Liquid Full (kg)
|
502
|
649
|
802
|
1005
|
1160
|
|
Door Width Requirement (>mm)
|
895
|
895
|
1124
|
1124
|
1210
|
Overview:
Biobank Series uses advanced evacuation technology, adiabatic technology and high vacuum retention technology to ensure the safe storage of specimen, good uniform temperature and the lowest liquid nitrogen consumption. When specimen in vapor storage, the entire storage area temperature differences do not exceed 10 ℃,and the top of the frozen rack lowest temperature can reach -196 ℃.
Biobank Series provides you with the best storage experience: fast specimen access, reliable protection, convenient liquid
nitrogen auto fill and flexible storage capacity.
Biobank Series provides you with the best storage experience: fast specimen access, reliable protection, convenient liquid
nitrogen auto fill and flexible storage capacity.
|
1. Off-centered round opening
|
|
6. Container shell - Stainless steel 304
|
|
|
|||
|
2. Insulation cover - high density polyurethane
|
|
7. Divisioin plate - aluminium alloy
|
|
|
|||
|
3. Solenoid valves group - controlling LN2 feeding
|
|
8. Rotary tray - aluminium alloy
|
|
|
|||
|
4. LCD touch screen - easy & smart control
|
|
9. LN2 storage room
|
|
|
|||
|
5. Square pail - easy for sample storage & taking out
|
|
10. Auto-castor wheel - high strength, long using life
|
|
|
|||
Product Features:
1. Compatible with vapor and liquid storage modes;
2. Various capacity optional to meet your storage requirements;
3. More specimen capacity in a limited space to reduce the storage costs;
4. Excellent temperature uniformity and stability;
5. Excellent temperature stability after opening lid;
6. Advanced temperature,level monitoring and alarm system, remote network monitoring;
7. Automatic filling liquid nitrogen system, safe and efficient;
8. Controlling system can permanently store operating data;
9. One button to demist, easy to search, pick and place specimen;
10. User-friendly design,comfortable operation;
11. Lockable lid, fully guarantee the safety of the specimen;
12. Equipped with folding steps and work bench;
13. CE certified.
2. Various capacity optional to meet your storage requirements;
3. More specimen capacity in a limited space to reduce the storage costs;
4. Excellent temperature uniformity and stability;
5. Excellent temperature stability after opening lid;
6. Advanced temperature,level monitoring and alarm system, remote network monitoring;
7. Automatic filling liquid nitrogen system, safe and efficient;
8. Controlling system can permanently store operating data;
9. One button to demist, easy to search, pick and place specimen;
10. User-friendly design,comfortable operation;
11. Lockable lid, fully guarantee the safety of the specimen;
12. Equipped with folding steps and work bench;
13. CE certified.
