Quick Details
-
Thermal Conductivity:
-
0.135W/(m`K)
-
Thickness:
-
6~150mm
-
Width:
-
1220mm
-
Length:
-
2440mm
-
Working Temperature:
-
1260℃
-
Shrinkage (1800℉, 3h):
-
3%(1000℃)
-
Place of Origin:
-
Henan, China
-
Model Number:
-
KRCASI
-
Brand Name:
-
Kerui Refractory
-
Product name:
-
Silicate Calcium Board
-
Raw material:
-
Gypsum powder, white cement, glass fiber
-
Specification:
-
Customizable
-
Color:
-
White Pure
-
Package:
-
Woven Bag/Carton
-
Moisture content:
-
≤ 10 %
-
Feature:
-
Heat Resistant Insulation
-
Bulk Density:
-
1.2~1.4 g/cm3
-
Certificate:
-
ISO9001:2000
-
Sample:
-
Freely
Quick Details
-
Chemical Composition:
-
Calcium, SiO2
-
Ultimate Strength (≥ MPa):
-
0.5
-
Fiber Diameter:
-
3~5μm
-
Thermal Conductivity:
-
0.135W/(m`K)
-
Thickness:
-
6~150mm
-
Width:
-
1220mm
-
Length:
-
2440mm
-
Working Temperature:
-
1260℃
-
Shrinkage (1800℉, 3h):
-
3%(1000℃)
-
Place of Origin:
-
Henan, China
-
Model Number:
-
KRCASI
-
Brand Name:
-
Kerui Refractory
-
Product name:
-
Silicate Calcium Board
-
Raw material:
-
Gypsum powder, white cement, glass fiber
-
Specification:
-
Customizable
-
Color:
-
White Pure
-
Package:
-
Woven Bag/Carton
-
Moisture content:
-
≤ 10 %
-
Feature:
-
Heat Resistant Insulation
-
Bulk Density:
-
1.2~1.4 g/cm3
-
Certificate:
-
ISO9001:2000
-
Sample:
-
Freely

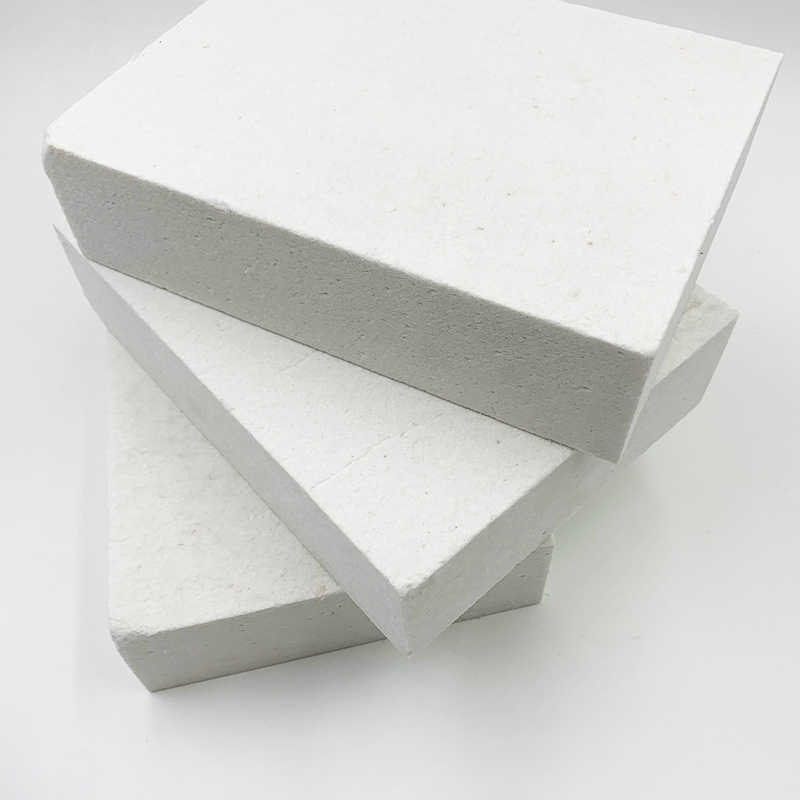

KERUI Insulation Materials 10~50mm Thickness Insulating Silicate Calcium Board
Calcium silicate insulation board is a type of thermal insulation material commonly used in construction and industrial applications. It is made by combining calcium oxide (lime) and silica (sand) in a precise ratio to form calcium silicate.
This insulation board offers several benefits besides thermal insulation. It is non-combustible, which means it does not contribute to the spread of flames in case of fire, making it a safer option for buildings and enhancing fire protection. Calcium silicate insulation board is also resistant to moisture and water, preventing the growth of mold and mildew, and maintaining its insulating performance even in humid conditions.
The board is lightweight and easy to handle, making it convenient to install. It can be easily cut, shaped, and installed using standard construction tools. Calcium silicate insulation board is available in various thicknesses, allowing for customization according to specific insulation requirements.
Overall, calcium silicate insulation board is a versatile and reliable insulation material that provides effective thermal insulation, fire protection, and moisture resistance. Its properties make it suitable for a wide range of applications in both buildings and industries, helping to create energy-efficient and comfortable environments.
|
Ceramic fiber board |
|||||||
|
Item |
Normal Kaolin |
Standard Purity |
High Purity |
High Al Purity |
Lower AZS |
Standard AZS |
|
|
Temperature Grade ℃ |
1050 |
1260 |
1260 |
1300 |
1300 |
1430 |
|
|
Recommended Operating Temperature ℃ |
≤950 |
≤1100 |
≤1150 |
≤1200 |
≤1200 |
≤1250 |
|
|
Permanent Linear Shrinkage ( % ) |
950 ℃ ×24h≤4 |
1000 ℃ ×24h≤4 |
1100 ℃ ×24h≤4 |
1200 ℃ ×24h≤4 |
1250 ℃ ×24h≤4 |
1350 ℃ ×24h≤4 |
|
|
Thermal Conductivity ( Mean Temp 500 ℃ ) W/(m.k) |
≤0.153 |
||||||
|
Water Content ( % ) |
≤1 |
||||||
|
Loss on ignition ( % ) |
≤8 |
||||||
|
Nominal Density ( kg/m³ ) |
220~400 |
||||||
|
Al2O3 |
34~36 |
36~38 |
39~42 |
45~47 |
38~40 |
||
|
Al2O3 +SiO2 |
≥95 |
≥96 |
≥98 |
≥99 |
≥90 |
||
|
Al2O3 +SiO2 +ZrO2 |
≥99 |
||||||
|
ZrO2 |
5~7 |
≥15 |
|||||
|
Fe2 O3 |
< 1.0 |
< 0.5 |
|||||
|
Availability Standard |
600/1200mm Width; 900mm/1000mm Length; Thickness 3mm~100mm |
||||||
