Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable
Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable
Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable
Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable
Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable
Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable
Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable
Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable

Black Rubber Flexibility Cable 0.75mm 1.5mm 2.5mm, 3 4 5 6 core Heavy Duty Rubber Electrical Power Cable

FOB Reference Price: Get Latest Price
≥100 Meters
US $1
≥300 Meters
US $0.4
≥500 Meters
US $0.35
≥1000 Meters
US $0.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Jacket:
Rubber
Place of Origin:
Shanghai, China
Brand Name:
KMCABLE
Model Number:
Rubber cable
Size:
2G1.5 2G2.5 3G1.5 3G2.5 3G4
Product name:
Rubber Power cable
Conductor:
Pure Copper
Insulation:
Rubber
Rated Voltage:
450/750V
Flame Test:
IEC 60332
Standard:
Rohs CE IEC ISO SAE UL
Cross section:
10-240mm2
Number of cores:
2 3 4 5 6 core

Quick Details

Insulation Material:
Rubber
Application:
Industrial
Conductor Material:
Copper
Jacket:
Rubber
Place of Origin:
Shanghai, China
Brand Name:
KMCABLE
Model Number:
Rubber cable
Size:
2G1.5 2G2.5 3G1.5 3G2.5 3G4
Product name:
Rubber Power cable
Conductor:
Pure Copper
Insulation:
Rubber
Rated Voltage:
450/750V
Flame Test:
IEC 60332
Standard:
Rohs CE IEC ISO SAE UL
Cross section:
10-240mm2
Number of cores:
2 3 4 5 6 core
Products Description

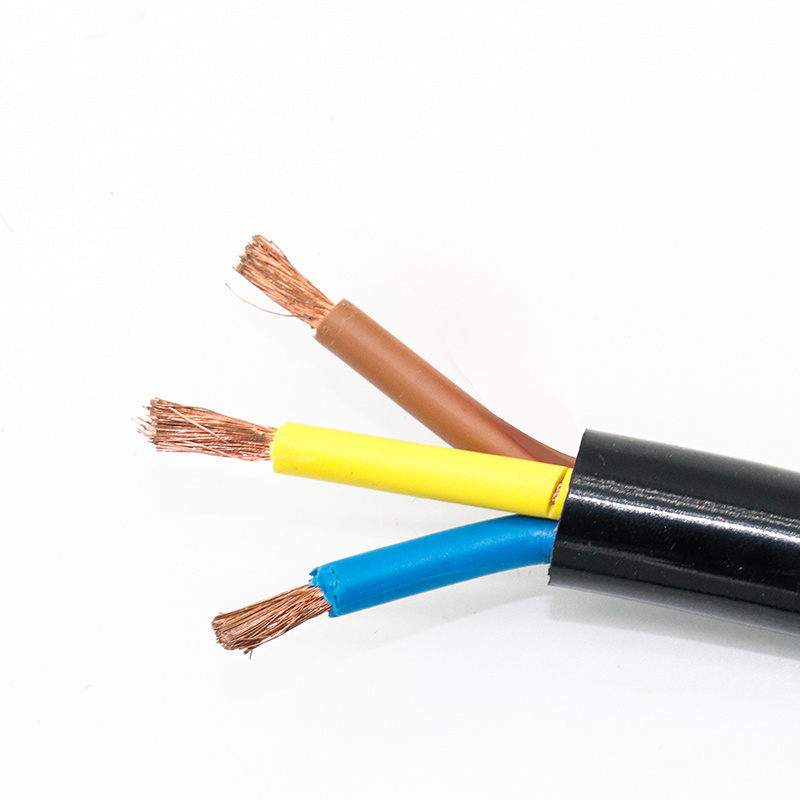

Rubber power cable
These cables are flexible, mainly recommended for use in electrical equipment under low stress in dry, damp and wet areas in indoor or outdoor environments. Commonly used for connection of electrical appliances when exposed to low mechanical strain in household, offices and for light utilities. Anywhere where there is minimal physical damage. Also suitable for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct current system max operating voltage is Uo/U 413/825 volts. They are ozone resistant, oil& fat resistant
Product's standard
CABLE CONSTRUCTION
- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Rubber core insulation EI4 to VDE-0282 Part-1
- Color code VDE-0293-308 and HD 186
- Green-yellow grounding, 3 conductors and above
- Polychloroprene rubber (neoprene) jacket EM2

Core Identification
2 cores: Blue, Brown;
3 cores: Blue, Brown, Yellow/Green;
4 cores: Blue, Brown, Grey, Yellow/Green;
5 cores: Blue, Brown, Black, Grey, Yellow/Green.
TECHNICAL CHARACTERISTICS
Working voltage
450/750 volts
Test voltage
2500 volts
Flexing bending radius
6 x Ø
Fixed bending radius
4.0 x Ø
Flexing Temperature
-25º C to +60º C
Fixed Temperature
-40º C to +60º C
Short circuit temperature
+200 º C
Insulation resistance
20 MΩ x km
