Best Selling Air Stripping Film 10M3/H High Performance Carbon Dioxide Gas Removal Film For Water Purification

Best Selling Air Stripping Film 10M3/H High Performance Carbon Dioxide Gas Removal Film For Water Purification

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1360

≥5 Pieces

US $1260

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 0.9 kg

Size:: 686*54 mm ( dimension for reference)

Weight (KG):: 0.9 kg

Length/mm:: 305±1

Component diameter/mm:: 63±1

Effective film area/㎡:: 0.4

Operating method:: Cross-flow filtration

Installation:: Horizontal/Vertical

Permeation mode:: External pressure

Feed status:: Liquid

Feed temperature/°C:: 5-35

Operating pressure/MPa:: 0.6

Quick Details

Place of Origin:: China

Brand Name:: WOBO

Material:: Wooden box, PP

Weight:: 0.9 kg

Size:: 686*54 mm ( dimension for reference)

Weight (KG):: 0.9 kg

Length/mm:: 305±1

Component diameter/mm:: 63±1

Effective film area/㎡:: 0.4

Operating method:: Cross-flow filtration

Installation:: Horizontal/Vertical

Permeation mode:: External pressure

Feed status:: Liquid

Feed temperature/°C:: 5-35

Operating pressure/MPa:: 0.6

E nvironmentally Friendly Efficient Carbon Dioxide Removal Membrane

Best Selling Air Stripping Film 10M3/H High Performance Carbon Dioxide Gas Removal Film For Water Purification

Product Description

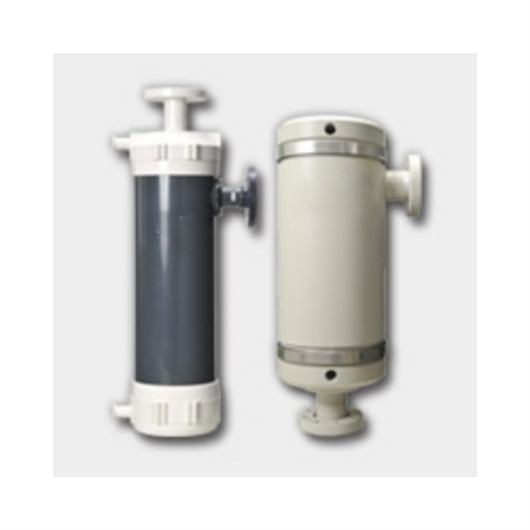

The degassing membrane is made of ultrafine hollow fiber (inner diameter 200 microns, outer diameter 300 microns) produced by our company. According to different decarbonization accuracy requirements, three operating modes such as vacuum, air purge, vacuum with air purge can remove the dissolved carbon dioxide in water to 0.5ppm at the lowest.

Product Parameters

Model	WTC-2.5X8	WTC-6X14	WTC-6X28	WTC-10X28	WTC-12X28	WTC-16X28	WTC250	WTC400
Membrane Shell Material	PP	UPVC	UPVC/PP	UPVC/PP	UPVC	UPVC	UPVC/PP	UPVC
Membrane Filament Material	PP	PP	PP	PP	PP	PP	PP	PP
Processing Capacity	0.1~0.7m3/h	0.5~3m3/h	2~10m3/h	6~18m3/h	15~42m3/h	38~91m3/h	15~42m3/h	38~91m3/h
Standard Removal Rate	75~90%	75~90%	78~95%	78~95%	78~95%	78~95%	78~95%	78~95%
Carbon Dioxide Removal	<1ppm	<1ppm	<1ppm	<1ppm	<1ppm	<1ppm	<1ppm	<1ppm
Operating Pressure	≦0.6MPa	≦0.6MPa	≦0.6MPa	≦0.6MPa	≦0.6MPa	≦0.6MPa	≦0.6MPa	≦0.6MPa
Operating Temperature	5~35℃	5~35℃	5~35℃	5~35℃	5~35℃	5~35℃	5~35℃	5~35℃
Operating PH	5~9	5~9	5~9	5~9	5~9	5~9	5~9	5~9

Detailed Photos

1 Simple and practical process that doesn't generate additional pollution

2 Acts as a substitute for chemical agents, saving costs and being environmentally friendly

3 High performance: It can effectively remove soluble carbon dioxide in water to as low as 0.5 ppm

Application Cases

It is suitable for liquid crystal screen production, food and beverage and other fields that need to remove carbon dioxide from water. Degassing membranes remove carbon dioxide from water, do not require any PH adjustments, and are a simple and easy process that does not create additional pollution.
