Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YT
-
Model Number:
-
JK-D
-
Power Source::
-
Electric
-
Capacity::
-
7.5 KN-20KN (As your request)
-
Painting color::
-
According to your demand
-
Electrical parts::
-
Siemens brand
-
Industry Voltage::
-
According to your demand
-
Wire rope::
-
Nantong Wire rope
-
Rope capacity::
-
100~190m
-
Rated speed::
-
28~46m/min
-
Product name:
-
Portable electric winch 5 ton 24v electric winch with clutch
-
Certification:
-
EPA
Quick Details
-
Power Source:
-
Electric
-
Application:
-
CRANES
-
Capacity:
-
7.5-20 KN
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YT
-
Model Number:
-
JK-D
-
Power Source::
-
Electric
-
Capacity::
-
7.5 KN-20KN (As your request)
-
Painting color::
-
According to your demand
-
Electrical parts::
-
Siemens brand
-
Industry Voltage::
-
According to your demand
-
Wire rope::
-
Nantong Wire rope
-
Rope capacity::
-
100~190m
-
Rated speed::
-
28~46m/min
-
Product name:
-
Portable electric winch 5 ton 24v electric winch with clutch
-
Certification:
-
EPA
Product Description

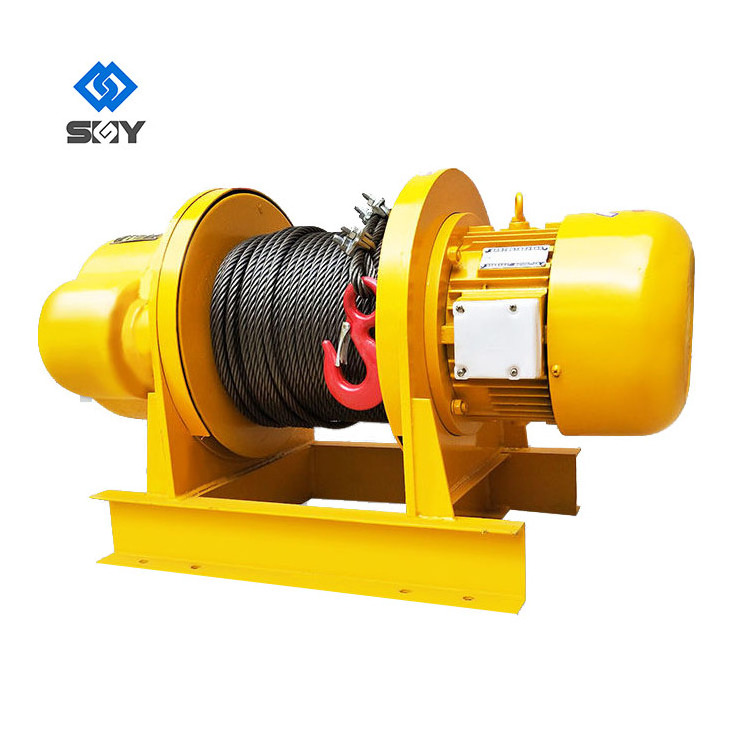

Portable electric winch 5 ton 24v electric winch with clutch
JKD electirc winch is a new type hoist which is a planetary drive with small teeth difference. It is also the ideal replacement of traditional hoist. It has the advantages of compact structure, stable running, convenient operation, easy maintenance, low noise level and long service life. JK-D series winch is widely used in building construction, piers, bridges, and metallurgical industries for lifting and installation.
This series winch is not only in line with national GB/T10055-1996 construction hoist safety rules but also in keeping with national industry standards JGJ88-92 Elevator Safety Technical Specifications.
This series winch is not only in line with national GB/T10055-1996 construction hoist safety rules but also in keeping with national industry standards JGJ88-92 Elevator Safety Technical Specifications.
Features:
1.Top quality with competitive price.
2.Widely used in factory,mining or double beam cranes.
3.Easy to install and high quality.
4.Compact structure and reasonable design.
2.Widely used in factory,mining or double beam cranes.
3.Easy to install and high quality.
4.Compact structure and reasonable design.
|
Type
|
JKD-1T
|
JKD-2T
|
JKD-3T
|
JKD-5T
|
|
Lifting（t)
|
0.5-1
|
1-2
|
1.5-3
|
2.5-5
|
|
Single rope lifting speed(m/min)
|
16
|
16
|
16
|
16
|
|
Double rope lifting speed(m/min)
|
8
|
8
|
8
|
8
|
|
Rope Diameter(mm)
|
7.7
|
11
|
13
|
15
|
|
Motor(kw)
|
1.5
|
3
|
4.5
|
7.5
|
|
Channel steel type
|
8
|
10
|
10
|
10
|
|
weights(kg)
|
80
|
140
|
170
|
250
|
