Quick Details
-
Model Number:
-
DA-4200
-
Dimension:
-
482(W) X 220(D) X 44(H) mm
-
Power Supply Mode:
-
other
-
Storage:
-
N/A
-
SNR:
-
≥108dB
-
Output Power:
-
8Ω Stereo 4*200W
-
Shell Material:
-
Metal
-
Format:
-
N/A
-
The body material:
-
Metal
-
Product Name:
-
Class D 4 channel low-power model professional digital amplifiers
-
8 ohms Stereo power:
-
200W x 4
-
4 ohms Stereo power:
-
280W X4
-
Frequency response:
-
20Hz-20kHz @ 8Ω±0.5dB
-
8 ohms Bridging:
-
480W X2
-
THD (20Hz 20KHz, half power):
-
≤0.03%
-
Output stage:
-
Class D
-
Operating Voltage:
-
AC 110 or 220V, 50/60 Hz
-
Indicator light:
-
Power light, signal light, clipping light, protection light
-
Applications:
-
Loundspeaker, Subwoofer
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEKEN
-
Model Number:
-
DA-4200
-
Dimension:
-
482(W) X 220(D) X 44(H) mm
-
Power Supply Mode:
-
other
-
Storage:
-
N/A
-
SNR:
-
≥108dB
-
Output Power:
-
8Ω Stereo 4*200W
-
Shell Material:
-
Metal
-
Format:
-
N/A
-
The body material:
-
Metal
-
Product Name:
-
Class D 4 channel low-power model professional digital amplifiers
-
8 ohms Stereo power:
-
200W x 4
-
4 ohms Stereo power:
-
280W X4
-
Frequency response:
-
20Hz-20kHz @ 8Ω±0.5dB
-
8 ohms Bridging:
-
480W X2
-
THD (20Hz 20KHz, half power):
-
≤0.03%
-
Output stage:
-
Class D
-
Operating Voltage:
-
AC 110 or 220V, 50/60 Hz
-
Indicator light:
-
Power light, signal light, clipping light, protection light
-
Applications:
-
Loundspeaker, Subwoofer

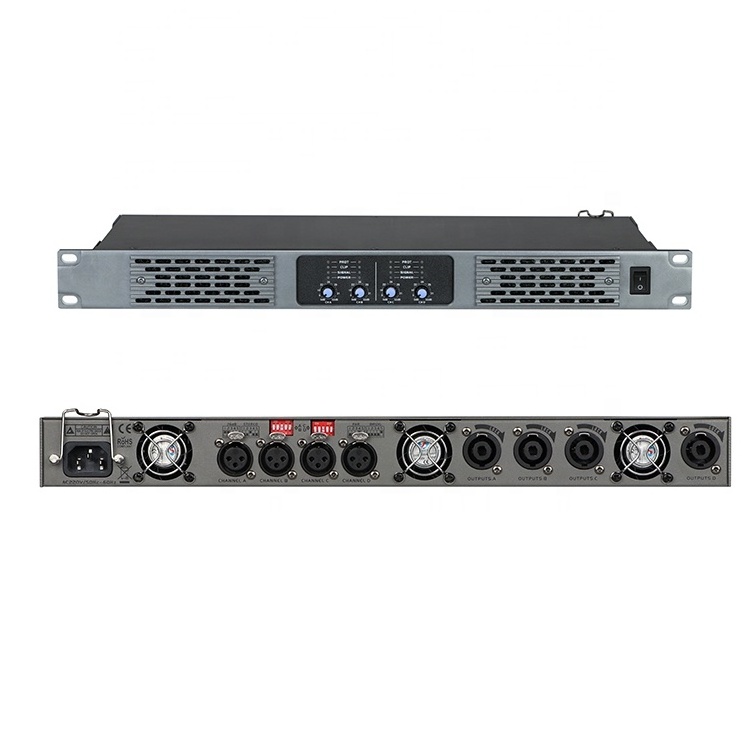

DEKEN DA-4200 Professional 4 Channel Audio Amplifier 8 Ohms 200w Power Amp 1U Class D Sound Digital Power Amplifier
Products Description
Descriptions
The DA Series is a new generation of high fidelity, high power stereo output professional digital amplifiers developed by DEKEN,continuing the design concept of the exquisite and excellent 1U model. The manufacturing process strictly implements international quality system standards and has a perfect management and monitoring system. The device uses PWM audio modulation technology,
power factor correction (PFC) and other advanced technologies to improve the performance of the amplifier and reduce the consumption of power supply current, so that the series has a very high efficiency. Provide stable and reliable 4Ω drive capability, suitable for a variety of speaker use requirements. The series provides 2-channel and 4-channel model options, suitable for a variety of large stadiums, mobile performances,entertainment projects, cinemas and various commercial audio system projects.
Features:
* DEKEN classic 1U ultra-thin chassis design, novel appearance, lightweight design, saving space and transportation costs.
* Using PWM audio modulation technology, with high efficiency power conversion circuit, effectively recycling useless electric energy, strong power output, low power supply consumption, green and environmental protection.
* Removable and washable dust filter screen.
* Front panel precise gain control, with power, signal, clip and protection working signal lights.
* Adopting active PFC and soft switching technology, high power correction factor and strong adaptability.
* High stability, high fidelity sound quality and sufficient power.
* Stable and reliable 4Ω drive capability, suitable for a variety of speaker use requirements.
* The bass is strong and thick, the mid frequency is mellow and sweet, and the high frequency is clear and delicate.
* The design of heat dissipation and exhaust system from the back to the front ensures the long-term and high-reliability
operation and use of the device.
* The rear DIP switch is used to select stereo or bridged operating modes.
* Unique fully automatic protection circuit design for each channel, with DC, overheat, overload and limiting protection
functions. Standby automatic sleep mode, power saving and durable, effectively ensuring the safety and long-term use of the device.
power factor correction (PFC) and other advanced technologies to improve the performance of the amplifier and reduce the consumption of power supply current, so that the series has a very high efficiency. Provide stable and reliable 4Ω drive capability, suitable for a variety of speaker use requirements. The series provides 2-channel and 4-channel model options, suitable for a variety of large stadiums, mobile performances,entertainment projects, cinemas and various commercial audio system projects.
Features:
* Using PWM audio modulation technology, with high efficiency power conversion circuit, effectively recycling useless electric energy, strong power output, low power supply consumption, green and environmental protection.
* Removable and washable dust filter screen.
* Front panel precise gain control, with power, signal, clip and protection working signal lights.
* Adopting active PFC and soft switching technology, high power correction factor and strong adaptability.
* High stability, high fidelity sound quality and sufficient power.
* Stable and reliable 4Ω drive capability, suitable for a variety of speaker use requirements.
* The bass is strong and thick, the mid frequency is mellow and sweet, and the high frequency is clear and delicate.
* The design of heat dissipation and exhaust system from the back to the front ensures the long-term and high-reliability
operation and use of the device.
* The rear DIP switch is used to select stereo or bridged operating modes.
* Unique fully automatic protection circuit design for each channel, with DC, overheat, overload and limiting protection
functions. Standby automatic sleep mode, power saving and durable, effectively ensuring the safety and long-term use of the device.
|
Model
|
DA-4200
|
DA-4400
|
DA-4600
|
DA-4800
|
|||
|
8Ω Stereo
|
200W X4
|
400W X4
|
600W X4
|
800W X4
|
|||
|
4Ω Stereo
|
280W X4
|
560W X4
|
840W X4
|
1120W X4
|
|||
|
8Ω Bridge
|
480W X2
|
960W X2
|
1440W X2
|
1900W X2
|
|||
|
4Ω Bridge
|
670W X2
|
1300W X2
|
2000W X2
|
2600W X2
|
|||
|
THD (20Hz 20KHz, half power)
|
≤0.03%
|
≤0.03,
|
≤0.05%
|
≤0.06%
|
|||
|
SNR (A-weighted, rated power 8Ω)
|
≥108dB
|
≥105dB
|
≥108dB
|
≥108dB
|
|||
|
Frequency response
|
20Hz-20kHz @ 8Ω±0.5dB
|
|
|
|
|||
|
Sensitivity(8Ω 1KHz)
|
0.775v/26
|
|
|
|
|||
|
Conversion rate
|
≥60V/µs @ 8Ω
|
|
|
|
|||
|
Phase response(1W8&8Ω, 20Hz 20KHz)
|
≤±6.5°
|
≤±6.5°
|
≤±6.5°
|
≤±6.5°
|
|||
|
Damping factor
|
≥900@ ( 1KHz&8Ω)
|
|
|
|
|||
|
Intermodulation distortion (20Hz, 20KHz, half power)
|
≤0.02%
|
≤0.02%
|
≤0.05%
|
≤0.02%
|
|||
|
Output stage
|
Class D
|
|
|
|
|||
|
Operating Voltage
|
AC 110 or 220V, 50/60 Hz
|
|
|
|
|||
|
Protection
|
Short circuit, DC output, overload, low voltage, overheating, limiting
|
|
|
|
|||
|
Indicator light
|
Power light, signal light, clipping light, protection light
|
|
|
|
|||
|
Input interface
|
XLR Female Socket
|
|
|
|
|||
|
Output interface
|
SPEAKON
|
|
|
|
|||
|
Weight (Net / Gross)
|
5kg/7kg
|
5kg/7kg
|
5.5kg/7.5kg
|
5.5kg/7.5kg
|
|||
|
Dimensions (W X D X H)
|
482(W) X 220(D) X 44(H) mm
|
|
|
|
|||
|
Packing dimensions (W X D X H)
|
0.014CBM, 55(W) X 32(D) X 8(H) CM
|
|
|
|
|||
Application Cases
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
