Quick Details
-
Ejection Force(kN):
-
150 kN
-
Ejection Stroke(mm):
-
110 mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yinshan
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
6600*1700*2900mm
-
Year:
-
New
-
Weight (KG):
-
12500
-
Power (kW):
-
18.5
-
Clamping Force (kN):
-
2800kN
-
Open Stroke(mm):
-
480mm
-
Space between Tie Bars(mm):
-
910X910
-
Diameter of Bars(mm):
-
70mm
-
Casting Force(kN):
-
340kN
-
Casting Stroke(mm):
-
425mm
-
Casting Pressure(MPa):
-
173MPa
-
Suitable metal:
-
Copper, Aluminum, Zinc
-
Die locking force:
-
2800 kN
-
Projecting area of casting:
-
318 cm2
-
Dry cycle:
-
10s per shot
-
Machine Weight:
-
12500kg
-
Dosage of fluid metal per shot (Al):
-
3.1kg
-
Thickness of die block (Min./Max):
-
280/680mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
12500KGS
-
Power:
-
18.5KW
Quick Details
-
Marketing Type:
-
Hot Product
-
Max.Thickness of Die Block (mm):
-
680 mm
-
Min.Thickness of Die Block (mm):
-
280 mm
-
Ejection Force(kN):
-
150 kN
-
Ejection Stroke(mm):
-
110 mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yinshan
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
6600*1700*2900mm
-
Year:
-
New
-
Weight (KG):
-
12500
-
Power (kW):
-
18.5
-
Clamping Force (kN):
-
2800kN
-
Open Stroke(mm):
-
480mm
-
Space between Tie Bars(mm):
-
910X910
-
Diameter of Bars(mm):
-
70mm
-
Casting Force(kN):
-
340kN
-
Casting Stroke(mm):
-
425mm
-
Casting Pressure(MPa):
-
173MPa
-
Suitable metal:
-
Copper, Aluminum, Zinc
-
Die locking force:
-
2800 kN
-
Projecting area of casting:
-
318 cm2
-
Dry cycle:
-
10s per shot
-
Machine Weight:
-
12500kg
-
Dosage of fluid metal per shot (Al):
-
3.1kg
-
Thickness of die block (Min./Max):
-
280/680mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
12500KGS
-
Power:
-
18.5KW
About us
We are engaged in offering a wide gamut of Casting Machine at market leading prices. Our products are widely demanded due to their longer functional life, high efficiency and low maintenance. These are applicable in various production industries and are highly appreciated by our clients.
Features and applications of 280Ton aluminum die casting machine
280T alminum die casting machine
Suitable for aluminum, zinc and copper alloy
PLC and person-machine interface
4-rod pilot elastic framework for excellent rigidity
Proportional relief and flow control valves
PLC and person-machine interface
Efficiency: maximum injection rate over 6m/s
Minimum boosting time less than 20ms
|
SUBJECT |
UNIT |
J1128K |
||
|
Die lock force |
kN |
2800 |
||
|
Size of moving platen (HXV) |
mm |
900X930 |
||
|
Inner space between bars (HXV) |
mm |
610X580 |
||
|
Thickness of die block (Min./Max.) |
mm |
280/680 |
||
|
Stroke of moving platen |
mm |
480 |
||
|
Ejection stroke |
mm |
110 |
||
|
Ejection force |
kN |
150 |
||
|
Injection force |
kN |
340 |
||
|
Injection stroke |
mm |
420 |
||
|
Diameter of shot sleeve |
mm |
50 |
60 |
70 |
|
Fluid metal dosage per shot (AL) |
kg |
1.6-3.1 |
||
|
Injection pressure (Min.~Max.) |
MPa |
78-153 |
||
|
Max. projecting area of casting |
cm2 |
359 |
||
|
Dry cycle |
s |
10 |
||
|
Pipe line pressure |
MPa |
14 |
||
|
Motor power |
kW |
18.5 |
||
|
Machine weight |
kg |
12500 |
||
|
Overall dimensions (LXWXH) |
mm |
6600X1700X2900 |
||

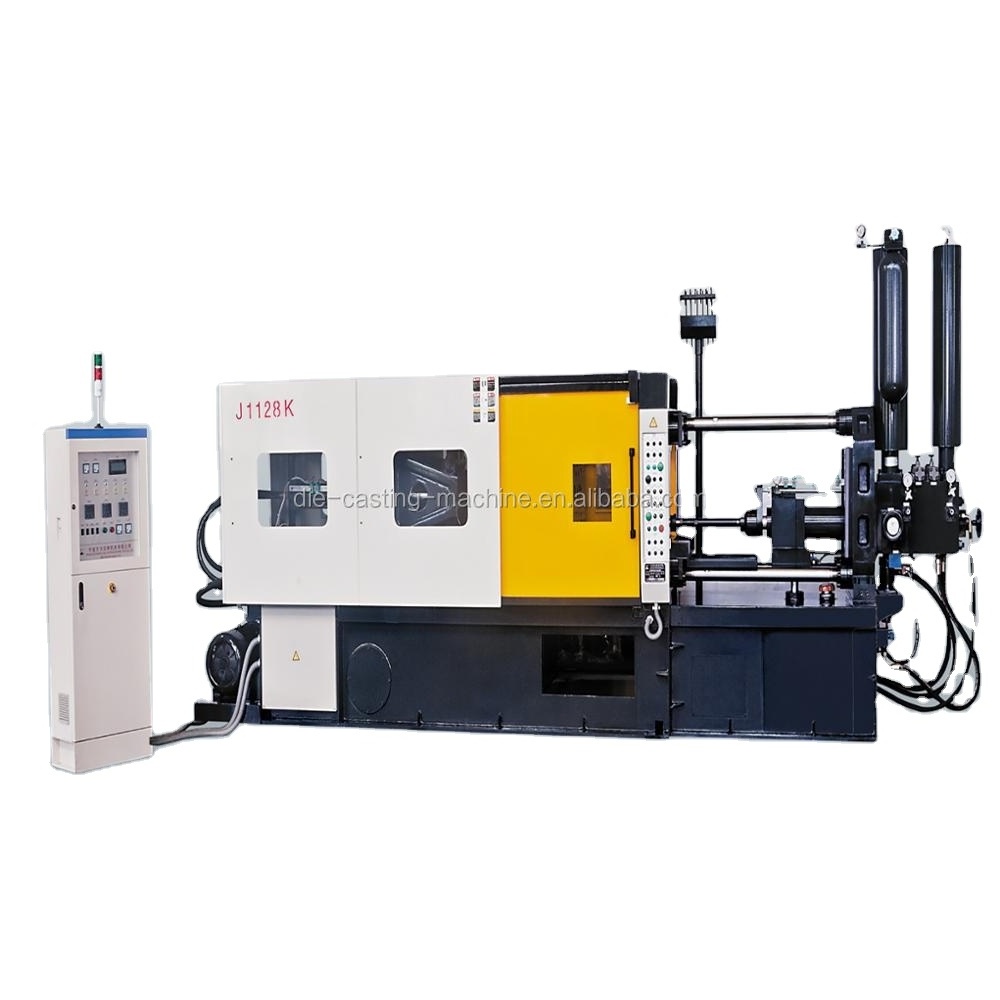

J1128K 280ton/2800Kn cold chamber die casting machine for copper, aluminum or zinc alloy is equipped with Mitsubishi PLC and screen,
YUKEN electronic valve
SUNNY vane pump.
The cold chamber die casting machine is suitable for die casting of nonferrous metal with low melting point, such as aluminum, zinc and copper. It is widely applied for die casting of fittings of automobile and motorcycle, and parts for instrument and meter, and household appliance hardware of daily necessities.
The machine is equipped with programmable logic controller (PLC) and graphics operation terminal (person-machine interface) that imported from Japan. The simple operating interface and proportional relief and flow control valves ensure easy operation of parameter and program setup. Die locking adopts crank expanding structure, 4 rod pilot elastic framework and has excellent rigidity. Advanced doubleloop and 4 steps hydraulic injecting system that is constant and effective; maximum injection rate over 6m/s and minimum boosting time less than 20ms. The machine is superior in performance, and offers reliable and smooth operations. It owns trouble diagnosis and shooting function, which is an advanced type of die casting machine within our country at present.
The details of 280T cold chamber die casting machine
|
Components List |
||
|
Name |
Brand |
Brand Origin |
|
Die Casting Machine |
YINSHAN |
China |
|
programmable logic controller (PLC) |
Mitsubishi |
Japan |
|
Pressure gauge |
DAMASS |
Germany |
|
Double vane pump |
Vickers |
USA |
|
Pressure reducing valve |
YUKEN |
Japan |
|
Superimposed sequence valve |
YUKEN |
Japan |
|
Superimposed speed control valve |
HYTEK |
Japan |
|
Two-position solenoid valve |
REXROTH |
Germany |
|
Three-position electro-hydraulic valve |
YUKEN |
Japan |
|
Three-position manual valve |
HUADE |
China Famous Brand |
If you want to know more details pls contact us.
