Quick Details
-
Warranty of core components:
-
8months
-
Engine Brand:
-
YTO
-
Weight:
-
3200 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Colors:
-
red, blue, green, black, yellow etc.
-
Customerized:
-
abundant optional combination
-
Horsepower:
-
35hp-45hp
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Egypt
Quick Details
-
Brand Name:
-
Taishan
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
New Product 2022
-
Warranty of core components:
-
8months
-
Engine Brand:
-
YTO
-
Weight:
-
3200 KG
-
After-sales Service Provided:
-
Overseas service center available
-
Colors:
-
red, blue, green, black, yellow etc.
-
Customerized:
-
abundant optional combination
-
Horsepower:
-
35hp-45hp
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
Egypt

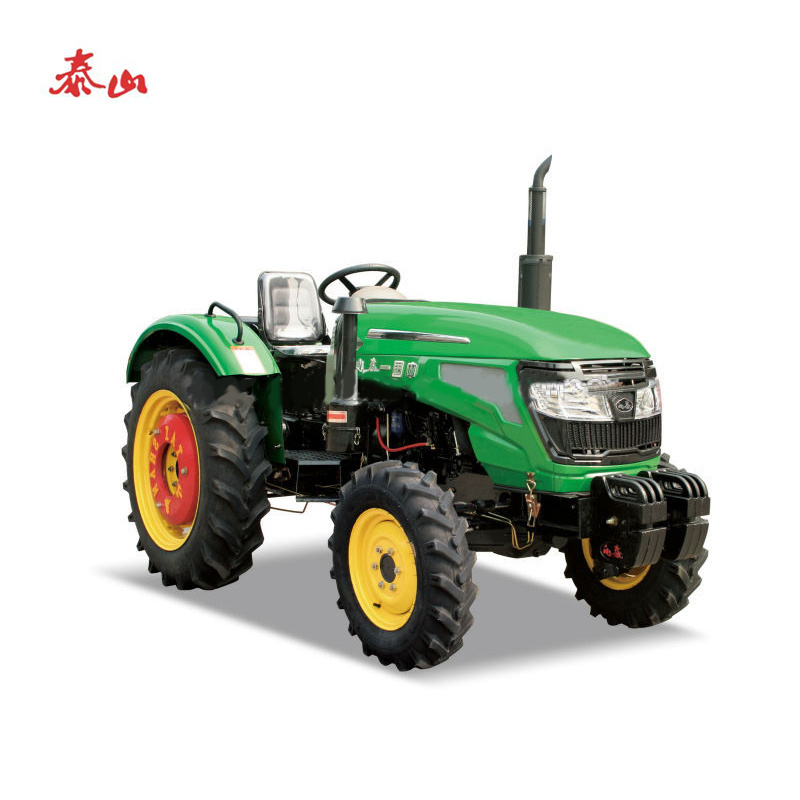

Taishan farm tractor mini agriculture machinery equipment wheel tractor
|
Tractor Parameters
|
Model |
TF354 |
|
|
Drive Type |
4 WD |
||
|
Overall Dimensions L×W×H (mm): |
3460X1480X2100 |
||
|
Wheel Track (mm) |
Front |
1100,1200,1300,1400 |
|
|
Rear |
1170,1270,1370 |
||
|
Wheel Base (mm ) |
1900 |
||
|
Ground Clearance (mm) |
Under Front Axle |
395 |
|
|
Under Rear Axle |
395 |
||
|
Rated Traction Force ( kn ) |
6.87/7.86 |
||
|
Construction Mass (kg) |
1643 |
||
|
Min. Turning Radius (m) |
3.6/3.3 |
||
|
Theoretical Speed (km/h) |
Forward |
1.75-32.2 |
|
|
Reverse |
2.3-11.9 |
||
|
Engine Specification
|
Model |
Changchai485 |
|
|
Type |
4-cylinder, Upright inline cylinder, radiator cooling, 4-storke cycle, |
||
|
Rated Power (kW/hp) |
26.5/35 |
||
|
Rated Speed (rpm) |
2400 |
||
|
Bore × Stroke (mm) |
85X95 |
||
|
Total Displacement (L) |
2.156 |
||
|
Engine for Options |
Model |
none |
|
|
Drive System
|
Clutch |
single-action , dry constant meshing |
|
|
Gear Box |
2×(4 +1) sliding gear shift |
||
|
Main Drive |
One Pair of Spiral Bevel Gears |
||
|
Differential |
Bevel Gear |
||
|
Differential Lock |
Sliding pin, foot operated |
||
|
Final Transmissions |
Gear transmission |
||
|
Traveling Mechanism
|
Tire |
Front |
650-16/750-16 |
|
Rear |
11.2-24/11.2-28 |
||
|
Steering Gear |
Hydraulic power steering |
||
|
Brake |
drum brake |
||
|
Working Device
|
Hydraulic System |
Lifting Capacity at 610 mm Behind Lift Point (Kn ) |
6.9/7.4 |
|
3-Point Suspension |
Category: I |
||
|
P.T.O. Shaft |
Rotating Speed (rpm) |
540/ 730 |
|
|
Spline Size |
8 -Ø35 or 6-Ø35 Rectangular Spline |
||
