Quick Details
-
Brand Name:
-
STMA
-
Fork Length:
-
1150mm
-
Fork Width:
-
190mm
-
Overall Dimensions:
-
1150mm*190mm*50mm
-
Weight (KG):
-
1500 kg
-
Type:
-
Manual Pallet Truck
-
After-sales Service Provided:
-
Overseas third-party support available
-
Power type:
-
Electric Power
-
Product Name:
-
STMA hot sale 1.5 ton electric pallet stacker with two 3m stage mast
-
Item:
-
electric pallet truck
-
Color:
-
Red
-
Battery:
-
24V/210Ah
-
Brand:
-
STMA
-
Lifting height:
-
3000mm
-
Controller:
-
USA Curtis Electronic Controller
Quick Details
-
Min. Lifting Height:
-
0m
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STMA
-
Fork Length:
-
1150mm
-
Fork Width:
-
190mm
-
Overall Dimensions:
-
1150mm*190mm*50mm
-
Weight (KG):
-
1500 kg
-
Type:
-
Manual Pallet Truck
-
After-sales Service Provided:
-
Overseas third-party support available
-
Power type:
-
Electric Power
-
Product Name:
-
STMA hot sale 1.5 ton electric pallet stacker with two 3m stage mast
-
Item:
-
electric pallet truck
-
Color:
-
Red
-
Battery:
-
24V/210Ah
-
Brand:
-
STMA
-
Lifting height:
-
3000mm
-
Controller:
-
USA Curtis Electronic Controller

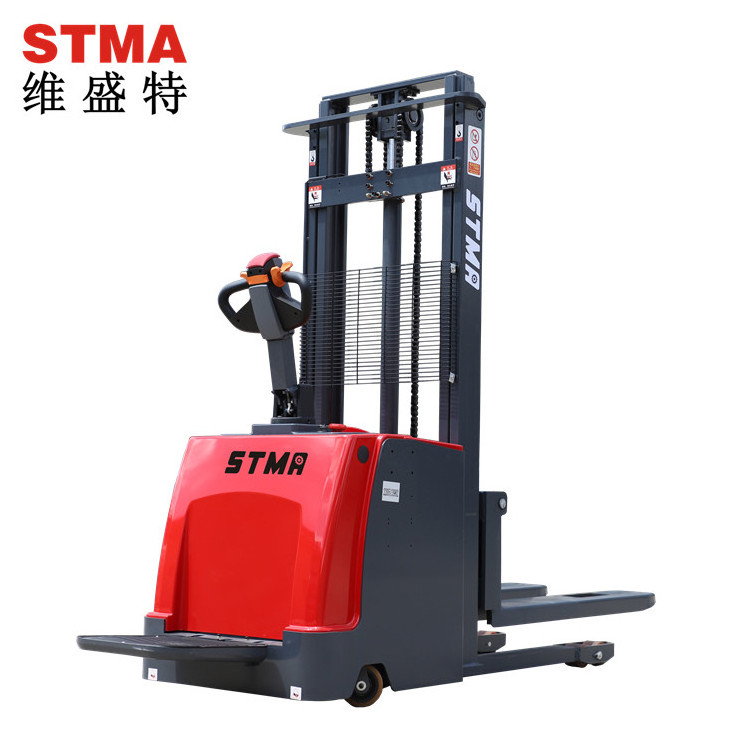

STMA hot sale 1.5 ton electric pallet stacker with 3.5m 4m 4.5m lifting height
electric pallet stacker
Main features of electric pallet stacker
1.
PRE Series with AC driving motor, Rated load capacity:2000kg, lift height: 3000mm;
2.
Speed Limited for high position, to aviod the possibility of products' overturning when high speed in high position;
3.
Curve safe control, the forklift will reduce the speed automatic when turning,to aviod the ejection of operator and products from the vehicle by the high speed;
4.
Safe cutoff valve, to protect the operator and goods in well condition;
5.
Vertical Drive system, to save the energy and have long time working;
6
. Durability: Reinforced frame and mast have long service life;
7
. Ergonomics multi-functional operation handle;
8
. Initiative shocking proof system to reduce the operator' fatigue.
|
SPECIFICATIONS FOR 2 TON ELECTRIC PALLET STACKER
|
|
|
|
|||
|
Characteristics
|
Model No.
|
|
EST10-30
|
EST15-30
|
EST20-30
|
|
|
Power Type
|
|
Electric
|
Electric
|
Electric
|
|
|
Operation Type
|
|
Stand Type
|
Stand Type
|
Stand Type
|
|
|
Capacity
|
Q(Kg)
|
1000
|
1500
|
2000
|
|
|
Load Center
|
C(mm)
|
500
|
500
|
500
|
|
|
Bearing Distance
|
X(mm)
|
720
|
720
|
720
|
|
|
Wheelbase
|
Y(mm)
|
1455
|
1455
|
1455
|
|
Total Weight
|
Total Weight（with Battery)
|
kg
|
1075
|
1115
|
1135
|
|
Wheels,Chassis
|
Wheel Type
|
|
PU
|
PU
|
PU
|
|
|
Front Wheel
|
Φ×w(mm)
|
Φ80×70
|
Φ80×70
|
Φ80×70
|
|
|
Driving Wheel
|
Φ×w(mm)
|
Φ230×75
|
Φ230×75
|
Φ230×75
|
|
|
Balance Wheel
|
Ф×w(mm)
|
Ф125×50
|
Ф125×50
|
Ф125×50
|
|
|
Front Wheel Base
|
b2(mm)
|
490
|
490
|
490
|
|
|
Rear Wheel Base
|
b3(mm)
|
658
|
658
|
658
|
|
Dimension
|
Mast Lowered Height
|
H1(mm)
|
2080
|
2080
|
2080
|
|
|
Lift Height
|
H(mm)
|
3000
|
3000
|
3000
|
|
|
Max. Height When Lifting
|
H2(mm)
|
3538
|
3538
|
3538
|
|
|
Handle Height
|
h5(mm)
|
1308
|
1308
|
1308
|
|
|
Fork Clearence when Mast Lowered
|
H3(mm)
|
85
|
85
|
85
|
|
|
Overall Length
|
L(mm)
|
2110
|
2110
|
2110
|
|
|
Overall Width
|
b1(mm)
|
850
|
850
|
850
|
|
|
Fork Size
|
s/e/l(mm)
|
60/190/1150
|
60/190/1150
|
60/190/1150
|
|
|
Fork Spread
|
b5(mm)
|
680
|
680
|
680
|
|
|
Min. Ground Clearence
|
m2(mm)
|
30
|
30
|
30
|
|
|
Aisle Width for Pallet 1000*1200 Crossaway
|
Ast(mm)
|
2624
|
2624
|
2624
|
|
|
Aisle Width for Pallet 1200*1000 Crossaway
|
Ast(mm)
|
2629
|
2629
|
2629
|
|
|
Min. Turning Radius
|
Wa(mm)
|
1795
|
1795
|
1795
|
|
Performance
|
Max. Travel Speed(Unload/Load)
|
km/h
|
5.5/4.5
|
5.5/4.5
|
5.5/4.5
|
|
|
Lifting Speed(Unload/Load)
|
m/s
|
0.117/0.095
|
0.117/0.092
|
0.117/0.086
|
|
|
Decnet Speed(Unload/Load)
|
m/s
|
0.082/0.112
|
0.082/0.115
|
0.082/0.123
|
|
|
Max. Climbing Ability (Unload/Load)
|
％
|
8/6
|
8/6
|
8/4
|
|
|
Brake Type
|
|
Electromagnetic
|
Electromagnetic
|
Electromagnetic
|
|
Motor,Charger
|
Driving Motor
|
kw
|
1.5
|
1.5
|
1.5
|
|
|
Lifting Motor
|
kw
|
2.2
|
2.2
|
2.2
|
|
|
Battery Type
|
|
Lead Acid
|
Lead Acid
|
Lead Acid
|
|
|
Battery Vol./Capacity
|
V/Ah
|
24V/210Ah
|
24V/210Ah
|
24V/210Ah
|
|
|
Charger
|
V/A
|
24V/30A
|
24V/30A
|
24V/30A
|
|
Other
|
Control Model
|
|
AC
|
AC
|
AC
|
