PRODUCTS DESCRIPTION

MODEL	600	1000	1200	1600	2000	2600
Spindle power(KW)	15x2	30x2	37x2	55x2	90x2	160x2
Spindle speed (R / min)	18-20	18-20	18-20	14-16	14-16	16-18
output（t/h)	2--5	5--10	6--15	8--18	10--25	25-60
Number of cutterhead (slice)	26	30	28	30	40	40
Number of cutterhead (slice)		Due to different materials, the number of cutter teeth and blades is different （Accept customization）
Cutter head diameter (mm)	260	360	372	530	560	720
Crushing particle size (CM)	3--10	3--10	3--10	3--10	3--10	3--10
Bin size (mm)	820x900	1200x1000	1400x1000	2000x2000	2300x200	2425x140
Overall dimension (mm)	2600x2000x1900	3000x2000x1900	3200x2000x1900	4000x1700x2400	8000x2500x2400	8200x4000x4300
Weight（t）	2	5	10	15	25	32

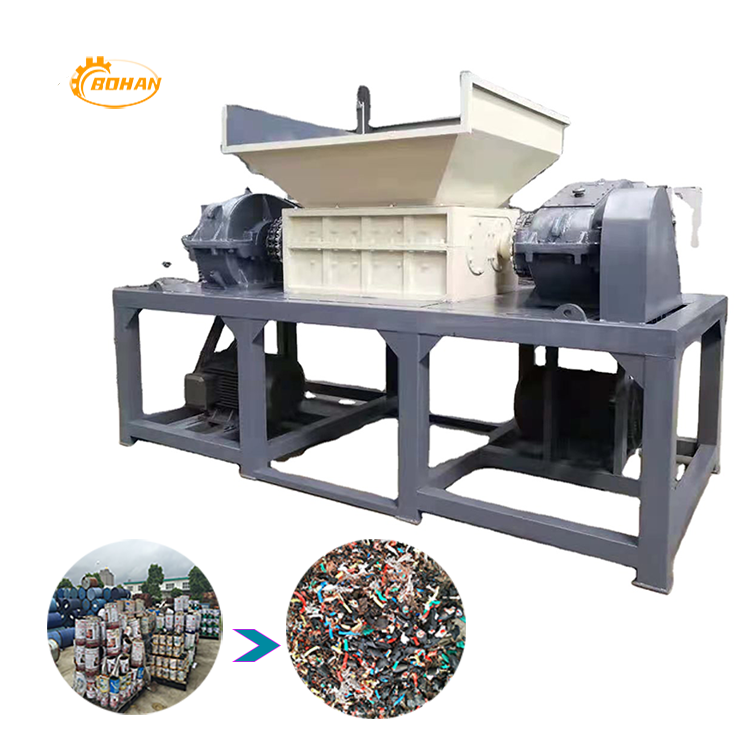

1. Double shaft, low speed, high torque garbage crusher with quenched steel cutter; 2. The two cutting rotors grasp the feed effectively. No matter whether the feed is large hard plastic or heavy tire, the machine can easily cut it into small pieces; 3. Heavy structure: the frame and structure of our shredder are made of high-thickness plates and tubular materials. The blade is made of high-quality steel, which is suitable for crushing hard materials and has a long service life; 4. These discs (blades) can be supplied in various quantities, quality and shapes together with the new double shaft crusher as required; 5. The PLC controller senses any overload caused by foreign matters, stops the rotation of the shaft, reversely removes the foreign matters, and then recovers; 6. The removal and replacement of tools can be carried out safely and simply. 7. Our shredder uses planetary reducer instead of traditional gearbox. Planetary gearbox has the following advantages: high efficiency, higher stability, compact size, higher torque density, cost-effective precision and high radial load. 8. The cooler system (optional) can maintain the temperature of continuous operation.

APPLICABLE FIELDS

PRODUCT DISPLAY

APPLICATION: • plastic sheet; • e-waste; • scrap (components, sub assemblies; consumables); • metal (lead, aluminum, copper, cable, barrel, scrap metal sheet, metal sheet left in the production process); • aluminum cans; • wood (wooden tray or fruit box); • plastic (plastic bottles or cans); • waste tires, rubber; • waste household appliances; • waste paper (cardboard, newspaper, office paper, books, magazines, kraft paper, paper core, cardboard tube, paper packaging materials); • textiles (rags, clothing, carpets); • animal bones and organic waste.

PRODUCT FEATURES

Unloading conveying system

The independent power system is adopted, and the power system is integrally fixed on the pulverizer through bolts, so that the power system can be pulled out as a whole.

Feed hopper

Put in the materials to be crushed to prevent the materials from splashing out. The double shaft crusher can handle a variety of different materials; The crusher is designed with powerful engine, long working length and positive input. The internal feed rate is larger than that of traditional and ordinary single shaft crushers, allowing you to feed with forklift

dynamic system

Motors of well-known brands can also be configured according to customer needs. Motors and reducers adopt all copper core motors and steel plate welded reducers

Biaxial cutting system

Double shaft shredder is made up of two shafts of blades cutting each other, to meet the requirements of shredding materials, shredding size with shredding blade thickness and number of teeth, the thinner the blade, shredding material size is smaller, the more teeth, shredding material length is shorter. The thicker the blade, the harder the material that can be torn.

WHY CHOOSE US

01 . Rich experience

Our team has years of industry experience and a deep understanding and mastery of the mechanical field, which

enables us to provide professional services and solutions to our customers.

02 . Leading technology

We constantly innovate and develop core technologies with independent intellectual property rights, which
can provide customers with efficient, stable, and reliable products and services.

03 . Quality assurance

We focus on product quality and brand building, and have won the trust and praise of customers through
strict quality control and professional brand marketing.

04 . Thoughtful service

We are committed to providing customers with comprehensive services and support, including technical
support, after-sales service, training, etc., Ensure that customers receive the best experience and benefits during use.

CUSTOMIZATION PROCESS

PACKAGING AND LOGISTICS

Recommended products

ABOUT US

FAQ

Q1: Are you manufacture or trading company?

A1: We are professional manufacture with more than 20 years experience in this field.

Q2: What kind of payment torment we can use?

A2: Payment terms we can accept as follows: T/T, Western Union. For small amount, usually we accept 100% T/T, and buyer bear bank charges .If pay for big order, 30%-50% in advance before produce.

Q3: What is the delivery time if I place my order? A3: It depends on the complexity of the Blade, or the quantity you ordered .If It is our standard project, We will only need 5-7 working days to send out your goods. If you have an urgent deadline, we'll see what we can do.

Q4: Can I Put My Logo On The Product?

A4: Yes, you can .Your Logo Can Be Put on the Product by Mold Punching, Laser Making, and Silk-Screen etc
