Quick Details
-
Brand Name:
-
SINOSUN
-
Dimension(L*W*H):
-
11622*9836
-
Weight:
-
5000
-
Product name:
-
Bitumen Storage Tank
-
Effective volume:
-
1000m3
-
Diameter:
-
11622mm
-
Wall height:
-
9836
-
Model Number:
-
BT1000
-
Total height:
-
11696
-
The number of Tank wall:
-
18pcs
-
Thickness of the tank bottom:
-
6 or 8 mm
-
Thickness of the tank wall:
-
6 or 8 mm
-
Total site area:
-
116m2
Quick Details
-
Capacity:
-
1000m3
-
Max Working Pressure(MPa):
-
10 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINOSUN
-
Dimension(L*W*H):
-
11622*9836
-
Weight:
-
5000
-
Product name:
-
Bitumen Storage Tank
-
Effective volume:
-
1000m3
-
Diameter:
-
11622mm
-
Wall height:
-
9836
-
Model Number:
-
BT1000
-
Total height:
-
11696
-
The number of Tank wall:
-
18pcs
-
Thickness of the tank bottom:
-
6 or 8 mm
-
Thickness of the tank wall:
-
6 or 8 mm
-
Total site area:
-
116m2
Product Description
Bitumen is one of important building materials for pavement construction of high-grade highways. Due to temporary land
acquisition, mobile construction, concentration of construction periods and other reasons, it is necessary to move and relocate bitumen storage tanks along with an asphalt mixing plant, with rapid and nondestructive assembly and disassembly.
Traditional large-scale asphalt storage tanks mostly adopt welded stationary tanks. Its drawback is that when a project comes to
an end or the project location is changed, the storage tanks have to be cut on site and disposed as scraps, or the tanks so cut
will be transported to the new project location for replenishment, stock-cutting, re-processing and welding, which is a great
waste of manpower, materials and resources, and it is also not conducive to civilized construction and environmental protection.
Due to high transportation cost and requiring a large floor space, the small-scale horizontal/vertical monolithic insulated
asphalt storage tank supplied along with asphalt mixing plants is not suitable for the projects which require long-distance
deployment and have limited floor space for construction.

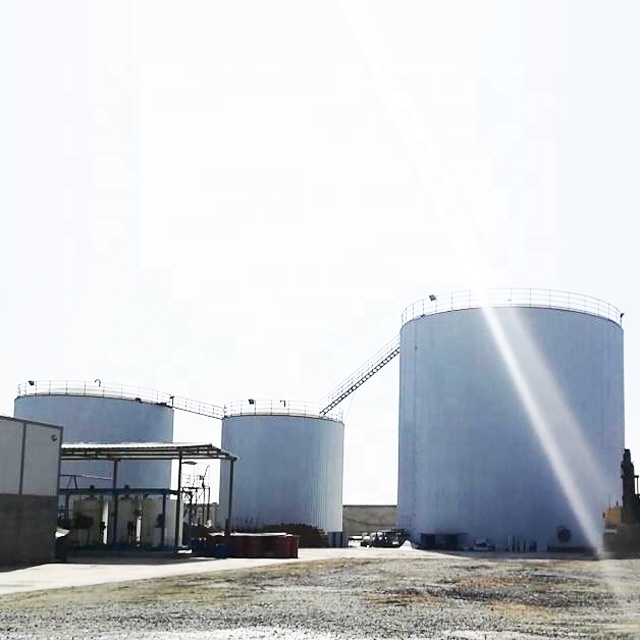

Prefabricated assembly (bolted) storage tanks – the patented product of SINOSUN have effectively solved the above problems, and have
a wide applications in the construction and warehousing fields of such industries as highway, railway, building, water
conservancy, petrochemical engineering, environmental protection, agriculture, and military etc.. SINOSUN’s prefabricated assembly storage tanks can not only be used individually to store materials but also be combined into a mobile storage tank group/farm according to actual needs.
acquisition, mobile construction, concentration of construction periods and other reasons, it is necessary to move and relocate bitumen storage tanks along with an asphalt mixing plant, with rapid and nondestructive assembly and disassembly.
Traditional large-scale asphalt storage tanks mostly adopt welded stationary tanks. Its drawback is that when a project comes to
an end or the project location is changed, the storage tanks have to be cut on site and disposed as scraps, or the tanks so cut
will be transported to the new project location for replenishment, stock-cutting, re-processing and welding, which is a great
waste of manpower, materials and resources, and it is also not conducive to civilized construction and environmental protection.
Due to high transportation cost and requiring a large floor space, the small-scale horizontal/vertical monolithic insulated
asphalt storage tank supplied along with asphalt mixing plants is not suitable for the projects which require long-distance
deployment and have limited floor space for construction.
Prefabricated assembly (bolted) storage tanks – the patented product of SINOSUN have effectively solved the above problems, and have
a wide applications in the construction and warehousing fields of such industries as highway, railway, building, water
conservancy, petrochemical engineering, environmental protection, agriculture, and military etc.. SINOSUN’s prefabricated assembly storage tanks can not only be used individually to store materials but also be combined into a mobile storage tank group/farm according to actual needs.
Size Information
|
No.
|
Items
|
Specification
|
|
1
|
Theoretical inner diameter （mm）
|
Φ11622
|
|
2
|
Tank Height（mm）
|
9836
|
|
3
|
Total height（mm）
|
11696
|
|
4
|
The number of Tank wall
|
18
|
|
5
|
Thickness of the tank cover（mm）
|
3
|
|
6
|
Thickness of the tank wall（mm）
|
6，8
|
|
7
|
Thickness of the tank bottom（mm）
|
6，8
|
|
8
|
Bitumen inlet pipe diameter （mm）
|
DN100
|
|
9
|
Bitumen inlet pipe quantity
|
1
|
|
10
|
Bitumen outlet pipe diameter （mm）
|
DN100
|
|
11
|
Bitumen outlet pipe quantity
|
2
|
|
12
|
Finned tube heating area （㎡）
|
260
|
|
13
|
Effective volume （m³）
|
1000
|
|
14
|
High temperature tank volume (m³)
|
158
|
