Quick Details
-
Model Number:
-
EPB20F
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-

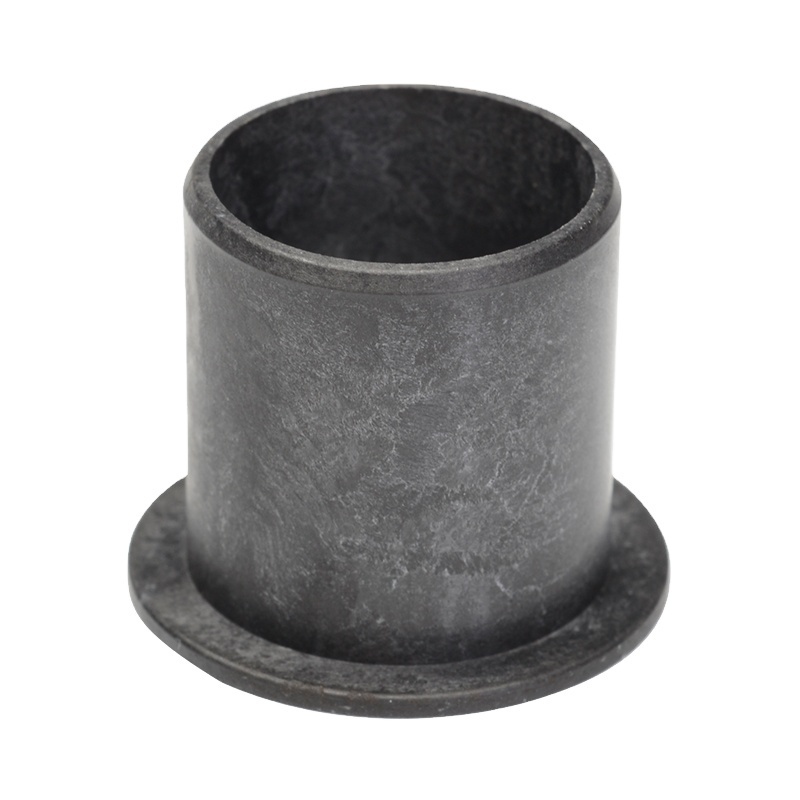

EPB20F Self-lubricating Plastic Bearing
-
Lubrication:
-
Self-lubricating
-
Material:
-
EPB20 Engineering Plastic
-
Customize:
-
Yes
-
Certification:
-
ROHS
-
weight:
-
0.06g
-
sample:
-
sample fee
-
Brand:
-
CSB
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction works , Energy & Mining, Other
-
Precision Rating:
-
E10
-
Brand Name:
-
CSB
-
Model Number:
-
EPB20F
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
EPB20F Self-lubricating Plastic Bearing
-
Lubrication:
-
Self-lubricating
-
Material:
-
EPB20 Engineering Plastic
-
Customize:
-
Yes
-
Certification:
-
ROHS
-
weight:
-
0.06g
-
sample:
-
sample fee
-
Brand:
-
CSB
PRODUCT DESCRIPTION
EPB Plastic Plain Bearings
● A self-lubricating material for applications in water. It is suitable for high speed motion under low load
● Continuous working temperature: -50℃/+90℃
● Suitable for medium load operation
● For underwater operation
● For high speed movement
● Continuous working temperature: -50℃/+90℃
● Suitable for medium load operation
● For underwater operation
● For high speed movement
PRODUCT SPECIFICATIONS
|
Material Properties
|
Standard
|
Unit
|
CSB-EPB20F
|
|||
|
General Properties
|
|
|
|
|||
|
Color
|
-
|
-
|
Black
|
|||
|
Density
|
ISO1183
|
g/cm3
|
1.53
|
|||
|
Max. moisture absorption,50%RH
|
ISO62
|
%
|
0.2
|
|||
|
Max. water absorption
|
ISO62
|
%
|
0.8
|
|||
|
Coefficient of sliding friction(steel)
|
ITS025
|
µ
|
0.15-0.35
|
|||
|
Max. PV value
|
ITS026
|
N/mm
2
×m/s
|
0.15
|
|||
|
Mechanical Properties
|
|
|
|
|||
|
Flexural modulus
|
ISO178
|
MPa
|
7200
|
|||
|
Flexural strength
|
ISO178
|
MPa
|
120
|
|||
|
Max. static load
|
ITS027
|
MPa
|
70
|
|||
|
Max. dynamic load
|
ITS028
|
MPa
|
35
|
|||
|
Shore hardness
|
ISO868
|
D
|
79
|
|||
|
Physical and thermal properties
|
|
|
|
|||
|
Long-term application temperature
|
ITS029
|
℃
|
+90
|
|||
|
Short-term application temperature
|
ITS029
|
℃
|
+110
|
|||
|
Lowest application temperature
|
ITS029
|
℃
|
-50
|
|||
|
Thermal conductivity
|
ISO22007
|
W/m/K
|
0.60
|
|||
|
Coefficient of thermal expansion
|
ISO11359
|
K
-1
×10
-5
|
6
|
|||
|
Flammability
|
UL94
|
Class
|
HB
|
|||
|
Electrical properties
|
|
|
|
|||
|
Volume resistance
|
IEC60093
|
Ω·cm
|
>10
5
|
|||
|
Surface resistance
|
IEC60093
|
Ω
|
>10
5
|
|||
*ITS: CSB company's internal test standards.
**Test temperatures are 23℃ unless otherwise stated.
PRODUCT TYPES
Sleeve Bearing
Flange Bearing
Thrust Washer
PRODUCT INFORMATION
PV VALUE
The max PV value of the CSB-EPB20F plastic bearings is 0.15N/mm2×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB20-1).
Load, speed and temperature
CSB-EPB20F allows the Max static load of 70Mpa, The max compressive deformation rate under the max load is listed in Graph EPB20-2. The actual load capacity of bearing is slightly less than 70Mpa, The bearing load is variable against the speed and temperature. Fast speed (Vmax: 0.5m/s) results into higher temperature (Tmax: 90℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB20-3 for such variation.
CSB-EPB20F allows the Max static load of 70Mpa, The max compressive deformation rate under the max load is listed in Graph EPB20-2. The actual load capacity of bearing is slightly less than 70Mpa, The bearing load is variable against the speed and temperature. Fast speed (Vmax: 0.5m/s) results into higher temperature (Tmax: 90℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB20-3 for such variation.
Friction factor, wear and shaft material
Friction factor
Friction factor
Similar with most of the plastic bearings, the friction factor of CSB-EPB20F is increased along with the operation speed when the loading is stable (see Graph EPB20-4) and is decreased along with the loading increasing when the operation speed is stable (see Graph EPB20-5). From Graph EPB20-6, it shows the friction factor of CSB-EPB20F is variable against different shaft surface roughness. The recommended shaft surface roughness is Ra0.3~0.6.
|
CSB-EPB
|
Dry
|
Grease
|
Oil
|
Water
|
|
Friction coef. μ
|
0.15~0.35
|
0.09
|
0.04
|
0.04
|
Wearing and shaft material
Graph EPB20-7 and EPB20-8 shows that CSB-EPB20F is rather suitable for hardened steel shaft and hardened chrome steel shaft under lower loading and Graph EPB20-7 shows that CSB-EPB20F wearing feature is better for oscillation operation than of rotation operation.
Graph EPB20-7 and EPB20-8 shows that CSB-EPB20F is rather suitable for hardened steel shaft and hardened chrome steel shaft under lower loading and Graph EPB20-7 shows that CSB-EPB20F wearing feature is better for oscillation operation than of rotation operation.
Chemical resistance
CSB-EPB20F is good at chemical resistance against weak acidic medium and various kinds of lubricants.
CSB-EPB20F is good at chemical resistance against weak acidic medium and various kinds of lubricants.
Water absorption
The moisture absorption of CSB-EPB20F plastic plain bearings is 0.2% in standard atmosphere. The max. water absorption is 0.8% in water. These values are very low, CSB-EPB20F plastic palin bearings is very well suited for used in water.
The moisture absorption of CSB-EPB20F plastic plain bearings is 0.2% in standard atmosphere. The max. water absorption is 0.8% in water. These values are very low, CSB-EPB20F plastic palin bearings is very well suited for used in water.
UV resistance
Disintegration could be possible for the material CSB-EPB20F after long period of exposing under the UV ray and therefore the performance of the material will be reduced.
Disintegration could be possible for the material CSB-EPB20F after long period of exposing under the UV ray and therefore the performance of the material will be reduced.
