- Product Details
- {{item.text}}
Quick Details
-
Panel Size:
-
2560mm x 1600mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
EF4
-
Product name:
-
Solar Trailer led display
-
Usage:
-
Creative Advertising Screen
-
Warranty:
-
2 Years
-
Screen brightness:
-
7000nits
-
Rotation:
-
330° rotation
-
Max. speed:
-
120KM/H
-
Lifting range:
-
up to 1000mm
-
Certificate:
-
CE ROHS EMC FCC
Quick Details
-
Application:
-
Outdoor, outdoor advertising
-
Brand Name:
-
CKGLED
-
Color:
-
Full color, Full-color
-
Panel Size:
-
2560mm x 1600mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
EF4
-
Product name:
-
Solar Trailer led display
-
Usage:
-
Creative Advertising Screen
-
Warranty:
-
2 Years
-
Screen brightness:
-
7000nits
-
Rotation:
-
330° rotation
-
Max. speed:
-
120KM/H
-
Lifting range:
-
up to 1000mm
-
Certificate:
-
CE ROHS EMC FCC
Why buy from us?
Product Description

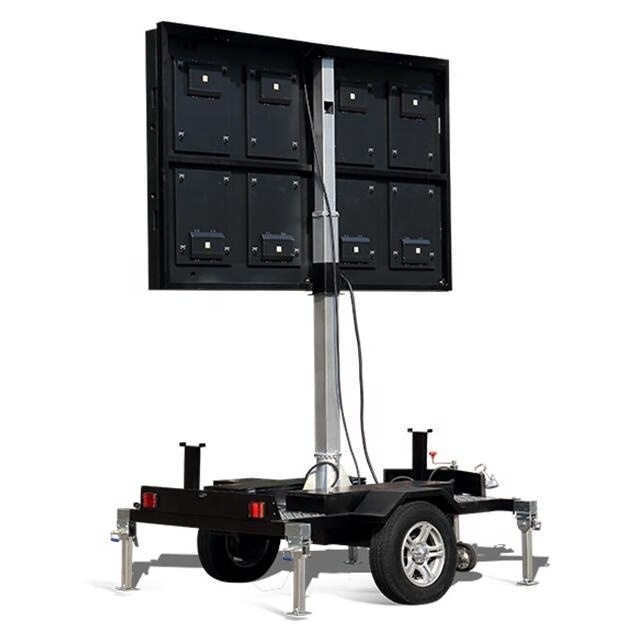

EF4 Solar Trailer LED Display Factory New Design P8 mm Outdoor Full Color High Refresh LED Screen for Street
a--- Durable fresh color and high brightness for outdoor.
b--- Hydraulic lifting: the lifting range can reach 1000 mm
a--- Durable fresh color and high brightness for outdoor.
b--- Hydraulic lifting: the lifting range can reach 1000 mm
c--- Battery 4pcs,12V,250AH with 330 hand rotating.
d-- IP65 protection grade, durable, make the screen work normally in all outdoor weather conditions.
Product demonstration:
|
NO.
|
Parameters
|
Specifications
|
|
1
|
Model
|
EF4 Solar Trailer LED Display
|
|
2
|
Pixel Pitch (mm)
|
8
|
|
3
|
Physical Density (dot/m2)
|
15625
|
|
4
|
LED Configuration
|
1R1G1B
|
|
5
|
LED Type
|
SMD3535
|
|
6
|
Module Size (mm x mm)
|
320x160mm
|
|
7
|
Viewing Angle (Deg)
|
H: 160 / V: 160
|
|
8
|
Brightness (cd/m2)
|
7000 cd/m2
|
|
9
|
Power Consumption (W / ㎡)
|
MAX: 780 / AVE: 260
|
|
10
|
Cabinet Size (mm x mm)
|
2560mm x 1600mm
|
|
11
|
Mobile trailer size
|
2934x1800x2500mm
|
|
12
|
Life span
|
100,000hours
|
|
12
|
Input Voltage (V)
|
AC 110V~220V+/-10%
|
|
13
|
Refresh Frame Frequency (Hz)
|
60Hz
|
|
14
|
Protection Level
|
IP65
|
|
15
|
Working Temperature (℃)
|
-30°- +60°
|
|
16
|
Operation humidity (RH)
|
10%-90%
|
|
17
|
Warranty
|
2 years
|
|
18
|
Certificate
|
CE,CCC,FCC,RoHS
|
Case pictures
Our service
1. Warranty: 2 years.
2. Your request/ inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquire in fluent English.
4. Free Training for 2 persons for installation and maintenance in factory for 3 days.
5.OEM&ODM, any your customized screen we can help you to design and put into product.
6. CKGLED provide 3 months free warehouse keep without extra cost.
Company Introduction
Shenzhen Chuangkaiguang Co., LTD (known as CKGLED),
CKGLED is a large professional full color led display screens manufacturer in Shenzhen, China, who is able to offer high quality led displays at very competitive prices. Our product ranges are
ultra small pitch led screens, indoor/ outdoor full color led displays for advertising , indoor/outdoor full color led displays for events, perimeter full color led displays for sports , led poster displays, streetlight pole led displays, interactive led dance floors and traffic led displays , led trailer displays. etc.
Moreover, all our products are certified with CE, RoHS, FCC, ETL, CCC certificates. And our factory is approved by ISO9001:2008 / ISO9001:2015 quality and management system. If time permits, your visit to our company and production factories is more than welcomed.
With our long-term development strategy plans, sticking to our “ GRATITUDE, INTEGRITY, INNOVATION ” enterprise management philosophy, CKGLED intend to become the biggest led display international solution & service supplier by working & developing together with our customer. Here we promise that every client, every order and every feedback will be valued by CKGLED. Let's hold our hands in hands, considering " Showing the beauty of the world " as our mission, and creating a more colorful and brighter world.
Moreover, all our products are certified with CE, RoHS, FCC, ETL, CCC certificates. And our factory is approved by ISO9001:2008 / ISO9001:2015 quality and management system. If time permits, your visit to our company and production factories is more than welcomed.
With our long-term development strategy plans, sticking to our “ GRATITUDE, INTEGRITY, INNOVATION ” enterprise management philosophy, CKGLED intend to become the biggest led display international solution & service supplier by working & developing together with our customer. Here we promise that every client, every order and every feedback will be valued by CKGLED. Let's hold our hands in hands, considering " Showing the beauty of the world " as our mission, and creating a more colorful and brighter world.
Exhibition&Showroom
Certificate
Packing & Delivery
Flight case and plywood case for option
FAQ
Q1: How are these LED display controlled?
RE:
The led display will be controlled via a software. Before delivery, our engineer will very well program &setting the screen and safe the setting in the display and the end users could have an turn-key led display.
Q2: What the software your company uses for your product?
RE:
We mainly use Novastar / Colorlight and Linsn.
Q3: Can I have a sample order for Led display ?
RE:
Yes , we welcome sample order to check and test quality. Maxed samples are acceptable.
Q4: What about the lead time ?
RE:
Our regular production time is 15-20normal days against advance payment, for huge quantity, please check with our sales manager.
Q5: Do you have any MOQ limit for Led display order ?
RE:
Module sample is accepted in our company, so we don’t have MOQ request for led displays.
Q6: What is the warranty for your led display?
Re:
The standard warranty is 2years, while it is possible to extend the max. warranty to 5years with extra cost.
Q7：What after service can provide?
Re:
We have professional engineers providing?24h online technical support and by email; We also send technical personnel to the scene in customers significant activities.
Q8：How to maintenance led screen?
Re:
In usually every year to maintenance led screen one time, clear the led mask, checking the cables connection, if any led screen modules fail, you can replace it with our spare modules
Q9. What if I don't know how to install the screen?
a.
We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation place.
b.
We provide training 2 people in the factory for free.
c.
We can send our engineers to your country to guide how to install the screen.
Q10. What if I don't know how to maintain the screen?
We will provide you with operation manuals and software when you place an order, and we can help you debug remotely.
Q11. How to deliver the my goods?
It depends on your budget and the date you need the led screen. Regularly, the led displays are shipped by sea, if the quantity is less and you need it urgently, we can arrange air-shipping for you.
