Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
6KW
-
Dimension(L*W*H):
-
4840*2288*2100mm
-
Weight:
-
2500 kg
-
Product name:
-

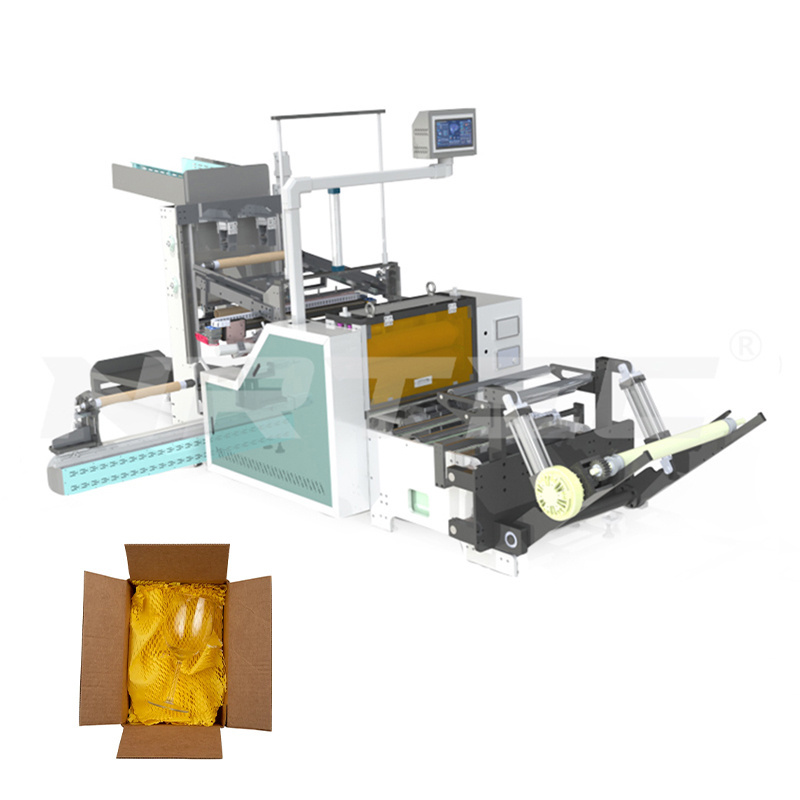

Honeycomb Paper Making Machine
Quick Details
-
Production Capacity:
-
280m/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
YJNPACK
-
Voltage:
-
380V/50HZ
-
Power:
-
6KW
-
Dimension(L*W*H):
-
4840*2288*2100mm
-
Weight:
-
2500 kg
-
Product name:
-
Honeycomb Paper Making Machine
Product Paramenters
|
Item
|
Honeycomb Paper Making Machine
|
|
|
|
|||
|
Type
|
Full-automatic machine
|
|
|
|
|||
|
MOQ
|
1 Sets
|
|
|
|
|||
|
Warranty
|
1 Years
|
|
|
|
|||
|
Logo & Color
|
Accept logo and color customization
|
|
|
|
|||
|
Machine Size
|
L*W*H (4840*2288*2100)
|
|
|
|
|||
|
Speed
|
50-280m/min
|
|
|
|
|||
|
Effective Width Of Die-cutting Stick
|
550
|
|
|
|
|||
|
Effective Unwind Width
|
540mm
|
|
|
|
|||
|
Power
|
6KM
|
|
|
|
|||
|
Voltage
|
380V/50HZ
|
|
|
|
|||
|
Weight
|
2500KG
|
|
|
|
|||
|
Die-cutting Roll
|
Φ240*600(Helical Tooth)
|
|
|
|
|||
|
Die Cutting Bottom Roller
|
Φ240*600(alloy steel+main servo drive)
|
|
|
|
|||
|
Wrap-Up
|
300 Roller Friction Winding
|
|
|
|
|||
|
Automatic Feeding Device
|
1.5KW Hydraulic System
|
|
|
|
|||
|
Automatic Deviation Correction System
|
110 Synchronous Electromechanical Cylinder Correction
|
|
|
|
|||
|
Automatic Tube Loading Device
|
(Automatic loading of paper tube + automatic loading of inflatable shaft + automatic pumping + automatic placement of inflatable
shaft + automatic winding of inflatable shaft + automatic placement of finished product) |
|
|
|
|||
|
Contact Us
|
|
|
|
||||
Customizable
Independently develops a fully automatic honeycomb paper die-cutting machine. One equipment advantage, is fully automatic loading and unloading of paper tubes, fully automatic winding and unwinding. No need for manual supervision, one person can watch several machines.
Die-cutting rollers made of cold-worked die steel. We produce knife molds independently. With 3 million meters of knife molds
requiring no sharpening.
requiring no sharpening.
Die cutting speed is 50 to 280 meters per minute. 1-5 rolls per minute and 60-300 rolls per hour.
Meet your high production needs
You can set any number of meters or rolls, and it will automatically cut and rewind. When the total output reaches this number, the system will stop and alarm.
Fully automatic loading and unloading of the paper tubes, fully automatic winding, and unwinding for manual lifting, friction type
winding automatic adjustment of front and rear tension adjustable winding tightness， designed with paper tube to placement area
can place 40 to 50 paper tubes.
winding automatic adjustment of front and rear tension adjustable winding tightness， designed with paper tube to placement area
can place 40 to 50 paper tubes.
The cut honeycomb paper is easy to stretch.Honeycomb paper is green and environmentally friendly. Good protection can replace plastic bubbles, packaging, and cushioning.
Products Certification
After-Sales Service
Customer Praise
Factory Real Shot
FAQ
1.What is the MOQ?
As long as we can do it, there is no minimum order requirement,
including most customization.
Please consult our sales staff for details.
2.Are you a manufacturer and trading company?
We are an eco-friendly packaging manufacturer with 8 years of experience.
We have our own R & D team, production plant, sales team.
We are good at product customization and various product requirements.
3.What is your warranty terms?
Based on the reliability and stability of the equipment, the warranty period of
As long as we can do it, there is no minimum order requirement,
including most customization.
Please consult our sales staff for details.
2.Are you a manufacturer and trading company?
We are an eco-friendly packaging manufacturer with 8 years of experience.
We have our own R & D team, production plant, sales team.
We are good at product customization and various product requirements.
3.What is your warranty terms?
Based on the reliability and stability of the equipment, the warranty period of
our equipment is
1 years
.
4.Which Payment terms you can offer?
We accept T/T, Alibaba trade assurance and other terms,
We accept ex-Work, FOB, and C&F/CIF terms.
5.What is the delivery times?
Sample: 3-7 working days ，
FCL container: 15-30 days ，（Depends on order product type）
Customizing printing: 5 working days longer for the first order.
6.How does your factory do regarding quality control?
We have an independent quality department , which tracks the production
4.Which Payment terms you can offer?
We accept T/T, Alibaba trade assurance and other terms,
We accept ex-Work, FOB, and C&F/CIF terms.
5.What is the delivery times?
Sample: 3-7 working days ，
FCL container: 15-30 days ，（Depends on order product type）
Customizing printing: 5 working days longer for the first order.
6.How does your factory do regarding quality control?
We have an independent quality department , which tracks the production
process in all aspects, and has a series of production process report records.
7. Can OEM&ODM be supported?
Our company supports OEM and ODM , We have rich experience in brand
7. Can OEM&ODM be supported?
Our company supports OEM and ODM , We have rich experience in brand
support and can well support your brand plan.
8.How is your after-sales service guaranteed?
During the warranty period, we provide free accessories and professional technicians .
8.How is your after-sales service guaranteed?
During the warranty period, we provide free accessories and professional technicians .
