Quick Details
-
Rated Lifting Moment:
-
6320 kN.m
-
Max. Lifting Height:
-
96 m
-
Span:
-
16 m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
RICHMCHN
-
Product name:
-
180 Tons Brand New Hydraulic Truck Crane SAC1800
-
Max Boom Length:
-
62 m
-
Max Jib Length:
-
43 m
-
Max Gradeability:
-
0.58
-
Overall length:
-
15530 mm
-
Overall width:
-
3000 mm
-
Overall height:
-
4000 mm
-
Max.traveling speed:
-
81 km/h
-
Min.turning radius:
-
10 m
-
Min.rated range:
-
3 m
Quick Details
-
Weight (KG):
-
60000
-
Application:
-
/
-
Rated Loading Capacity:
-
180 T
-
Rated Lifting Moment:
-
6320 kN.m
-
Max. Lifting Height:
-
96 m
-
Span:
-
16 m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
RICHMCHN
-
Product name:
-
180 Tons Brand New Hydraulic Truck Crane SAC1800
-
Max Boom Length:
-
62 m
-
Max Jib Length:
-
43 m
-
Max Gradeability:
-
0.58
-
Overall length:
-
15530 mm
-
Overall width:
-
3000 mm
-
Overall height:
-
4000 mm
-
Max.traveling speed:
-
81 km/h
-
Min.turning radius:
-
10 m
-
Min.rated range:
-
3 m
Products Description

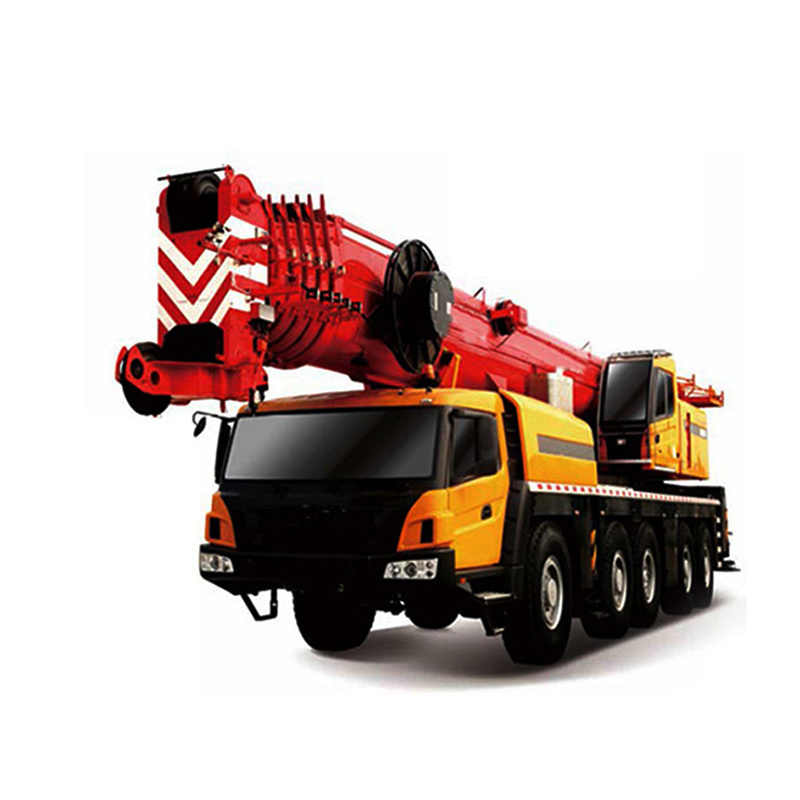

180 ton All Terrain Crane SAC1800
Powerful Lifting Capacity
The longest boom length of the 180 ton all terrain crane is 97m and lifting height 97.5m, max.lifting capacity of 180t,which
ensures the super strong lifting capacity. The six-section telescopic boom is made of fine grain high-strength steel with U-shaped section. 0°~ 40°automatical infinite variable luffing jib is applied to ensure convenient switch over between all operating conditions with high efficiency.
Efficient Hydraulic Control Technology
Self-developed dual-pump converging/diversion main valve is . Converging flow of the single-action dual-pump can be up to 520L/min, ensuring fast and efficient operation. Combined-action dual-pump diversion system is applied to ensure stable control and operation with independent oil supply. Electric proportional variable displacement piston pump is to ensure accurate flow control which is efficient and energy saving.
Excellent & Stable Chassis Performance
The use of innovative 5-axle chassis design and multi braking modes provide more reliable traveling performance for chassis. With tipping early-warning technology, highly stable overall operation and safety can be achieved.
Intelligent Electronic Control
The adoption of internationally advanced distributed integration bus data communication network and the configuration of complete set of sensing elements can achieve timely feedback of data information and monitor the overall working status in real-time. The human-computer interaction interface is to meet customer's individual
The longest boom length of the 180 ton all terrain crane is 97m and lifting height 97.5m, max.lifting capacity of 180t,which
ensures the super strong lifting capacity. The six-section telescopic boom is made of fine grain high-strength steel with U-shaped section. 0°~ 40°automatical infinite variable luffing jib is applied to ensure convenient switch over between all operating conditions with high efficiency.
Efficient Hydraulic Control Technology
Self-developed dual-pump converging/diversion main valve is . Converging flow of the single-action dual-pump can be up to 520L/min, ensuring fast and efficient operation. Combined-action dual-pump diversion system is applied to ensure stable control and operation with independent oil supply. Electric proportional variable displacement piston pump is to ensure accurate flow control which is efficient and energy saving.
Excellent & Stable Chassis Performance
The use of innovative 5-axle chassis design and multi braking modes provide more reliable traveling performance for chassis. With tipping early-warning technology, highly stable overall operation and safety can be achieved.
Intelligent Electronic Control
The adoption of internationally advanced distributed integration bus data communication network and the configuration of complete set of sensing elements can achieve timely feedback of data information and monitor the overall working status in real-time. The human-computer interaction interface is to meet customer's individual
Product Parameters
|
Capacity
|
Max.lifting capacity
|
|
180t
|
|
|
Dimensions
|
Overall length
|
|
15530 mm
|
|
|
|
Overall width
|
|
3000mm
|
|
|
|
Overall height
|
|
4000mm
|
|
|
|
Axle distance
|
Axle-1,2
|
2750mm
|
|
|
|
|
Axle-2,3
|
1650mm
|
|
|
|
|
Axle-3,4
|
2490mm
|
|
|
|
|
Axle-4,5
|
1650mm
|
|
|
Weight
|
Overal weight
|
|
60000kg
|
|
|
|
Axle load
|
Axle load-1,2
|
12000kg
|
|
|
|
|
Axle load-3,4,5
|
12000 kg
|
|
|
|
Rated power
|
|
390 kW/1800 rpm
|
|
|
|
Rated torque
|
|
2400 N.m/1100 rpm
|
|
|
Traveling
|
Max.traveling speed
|
|
81 km/h
|
|
|
|
Turning radius
|
Min.turning radius
|
10m
|
|
|
|
|
Min.turming radius of boom head
|
11m
|
|
|
|
Wheel formula
|
|
10x8
|
|
|
|
Min.ground clearance
|
|
325mm
|
|
|
|
Approach angle
|
|
20°
|
|
|
|
Departure angle
|
|
17°
|
|
|
|
Max.gradeability
|
|
58%
|
|
|
|
Fuel consumption per 100km
|
|
≤72L
|
|
|
Main Performance Data
|
Temperature range
|
|
-20℃~+40℃
|
|
|
|
Min.rated range
|
|
3m
|
|
|
|
Tail slewing radius of swingtable
|
|
4.75m
|
|
|
|
Boom section
|
|
6
|
|
|
|
Boom shape
|
|
U-shaped
|
|
|
|
Max.lifting moment
|
Base boom
|
6320 kN·m
|
|
|
|
|
Full-extend boom
|
3000 kN·m
|
|
|
|
|
Full-extend boom+jib
|
575 kN·m
|
|
|
|
Boom length
|
Base boom
|
13.5m
|
|
|
|
|
Full-extend boom
|
62m
|
|
|
|
|
Full-extend boom+jib
|
97m
|
|
