PLC Control provides high precision heating process, it offers all the features you need.
The panel allows you to set the accurate temperature and duration you require, as well as control the working of fan.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V/415V
-
Power:
-
50
-
Dimension(L*W*H):
-
Width1800 * Height2400 * Depth7200 mm
-
Weight (KG):
-
1000
-
Product name:
-
Customizable powder coating curing ovens
-
Worksize Dimensions:
-
Width1800 * Height2100 * Depth7000 mm
-
Weight:
-
1000KGS
-
MOQ:
-
1 piece
-
Guarantee:
-
1 year
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Online support
-
After Warranty Service 3:
-
Spare parts
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
powder coating oven, Drying Oven, Curing oven, Coating Equipment
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
COLO
-
Voltage:
-
220V/380V/415V
-
Power:
-
50
-
Dimension(L*W*H):
-
Width1800 * Height2400 * Depth7200 mm
-
Weight (KG):
-
1000
-
Product name:
-
Customizable powder coating curing ovens
-
Worksize Dimensions:
-
Width1800 * Height2100 * Depth7000 mm
-
Weight:
-
1000KGS
-
MOQ:
-
1 piece
-
Guarantee:
-
1 year
-
After Warranty Service 1:
-
Video technical support
-
After Warranty Service 2:
-
Online support
-
After Warranty Service 3:
-
Spare parts
-
Certification:
-
CE
Product Description

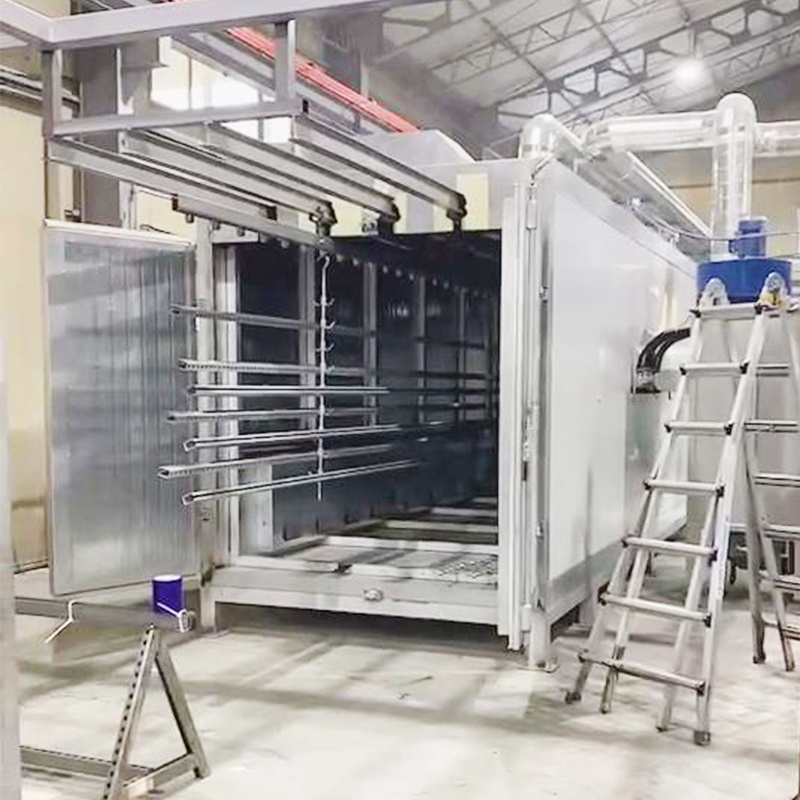

Customizable powder coating curing ovens for batch aluminum section
This powder coating oven custom depth of
7m, suitable
for curing longer workparts in batches, such as aluminum section, furniture, steel, panels, fences, etc. It‘s recommended to take gas or diesel as fuels, which fearures higher heating efficiency and lower energy expense.
COLO powder curing ovens are built with top-quality components that extends to longest lifespan, o
ven size and heating method can be customized.
Details Images
COLO Custom Industrial Powder Coating Curing Oven Features
1. PLC system provides a precise and reliable heating process with easy setting of temperature and time.
2. Itatly Riello burner fully burns fuels, quickly reach to required temperature saving your production time everyday.
3. Circulation fans causes uniform temperature in the entire inner space that results in quality cured finishes.
4. 100 mm thickness rockwool board inserted between galvanized steel wall and durable steel skin always keeps the chamber a consistent high temperature with minimum heat loss.
5. Loading system can be customized to standard trolley system or track system applied to continous conveyor line.
Control-Simple PLC System
PLC Control provides high precision heating process, it offers all the features you need.
The panel allows you to set the accurate temperature and duration you require, as well as control the working of fan.
Riello Burner
FS20 model
Italy imported Riello gas burner takes full utilizations of fuels, reaching the baking temperature faster, making heating process more efficient and energy-saving.
Riello burner fully burns fuels (gas or diesel), quickly reach to required temperature.
Rock Wool Insulation Board 100mm
The powder coating oven insulation material is 100mm thickness rock wool board, which always maintain the warmness in the oven
chamber.
The inner wall is 1mm galvanized steel which is heat-resistant, while the outerwall is durable color steel sheet.
Parts Transporting System
COLO powder coating ovens are available with inner and outer trolleys.
It is easy for loading and transporting workparts. The trolley holding parts always stays clean that will not pollute the oven chamber, keeping the purity of cured parts.
Manufacturing Technique
|
Model
|
COLO-7021
|
|
Worksize Dimensions
|
Width1800 * Height2100 * Depth7000 mm
|
|
Overall Dimensions
|
Width2000 * Height2400 * Depth7200 mm
|
|
Power Supply
|
LPG / Gas / Diesel
|
|
Voltage/Frequency
|
380V/220V (50-60Hz)
|
|
Warm-up Time
|
15-30 min. (180° C)
|
|
Temperature Stability
|
< ± 3.0-6°C
|
|
Temperature
|
Max. 250° C
|
|
Transport System
|
Two trolleys
|
|
Burner
|
Italy Riello, 20,0000cal
|
|
Circulation/ Air flow
|
Vertical ,Variable through holes on the walls
|
|
Ventilation Performance
|
8288-16576m3/h
|
|
Motor Power
|
5.5kW
|
|
Warranty
|
12 months
|
Application
Large Powder Coating Curing Oven Applications
This powder coating oven is customized for processing larger metal products, such as aluminium profile, window frame, steel doors, fence. COLO provides standard and custom powder paint curing ovens for every industrial needs.
