XH7125 Cnc Milling Machine Automatic Tool Changer
XH7125 Cnc Milling Machine Automatic Tool Changer
XH7125 Cnc Milling Machine Automatic Tool Changer
XH7125 Cnc Milling Machine Automatic Tool Changer
XH7125 Cnc Milling Machine Automatic Tool Changer
XH7125 Cnc Milling Machine Automatic Tool Changer
XH7125 Cnc Milling Machine Automatic Tool Changer
XH7125 Cnc Milling Machine Automatic Tool Changer

XH7125 Cnc Milling Machine Automatic Tool Changer

FOB Reference Price: Get Latest Price
≥1 Sets
US $30000
≥10 Sets
US $18700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Brand Name:
WEIDA
Voltage:
Customized
After-sales Service Provided:
Engineers available to service machinery overseas
Machine type:
mini cnc machining center
Control type:
cnc control
spindle:
Taiwan 8000rpm spindle
tool magazine:
drum type tool magazine
drum type magazine capacity:
10 tools
guideway:
rectangular guideway
ballscrew:
taiwan Hiwin ballscrew, IT3
Lubrication system:
Automatic intermittent lubrication
bearings:
NSK, P3
electric handwheel:
standard
Weight:
2000KG
Certification:
CE, ISO9001:2008
Power:
3.7KW

Quick Details

Model Number:
XH7125
Dimension(L*W*H):
1650X1600X2000MM
Warranty:
12 MONTHS
Place of Origin:
Shandong, China
Brand Name:
WEIDA
Voltage:
Customized
After-sales Service Provided:
Engineers available to service machinery overseas
Machine type:
mini cnc machining center
Control type:
cnc control
spindle:
Taiwan 8000rpm spindle
tool magazine:
drum type tool magazine
drum type magazine capacity:
10 tools
guideway:
rectangular guideway
ballscrew:
taiwan Hiwin ballscrew, IT3
Lubrication system:
Automatic intermittent lubrication
bearings:
NSK, P3
electric handwheel:
standard
Weight:
2000KG
Certification:
CE, ISO9001:2008
Power:
3.7KW

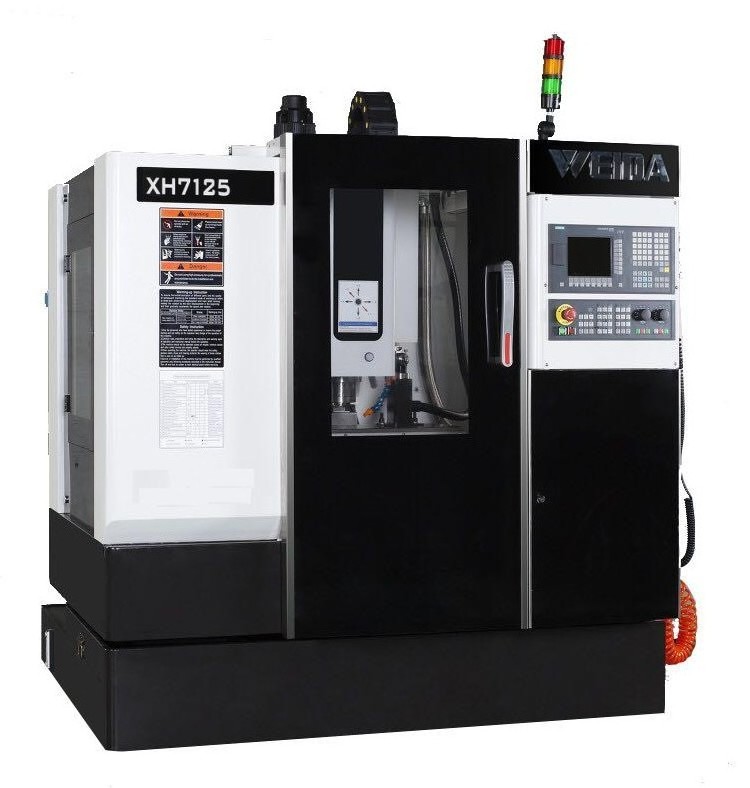

XH7125 Cnc Milling Machine Automatic Tool Changer

Specification

1.mini machining center XH7125  is with box guideways, ensuring the machine's machining accuracy and stability.

2.The small vmc machine can be with taiwan arm type tool magazine or drum type tool magazine with 10 tools capacity. It can change tools quickly.

3.The machine is with RS232 interface, separated handwheel, spindle blowing chip removal system.

Specifications

Units

XH7125

Table travel (X,Y,Z)

mm

400X240X400

Table size

mm

600X250

Number/width/distance of T-slot

mm

3-14-75

Distance from spindle nose to table surface

mm

60-460

Distance from spindle axis to column guideway

mm

325

Rapid feed speed

mm/min

6000

Feed speed

mm/min

2.5-3000

Taper of spindle

BT30

Spindle speed range

rpm

60-6000

Spindle motor power

kw

AC servo 3.7

Tool magazine capability

qty

10

Max weight of tool

kg

5

Max dimension of tool

mm

Ø92

Positioning accuracy

mm

± 0.005/300 JIS

Repeat positioning accuracy

mm

± 0.003/300 JIS

Overall dimension

mm

1650*1600*2000

Machine weight

kg

2000



Machine: mini machining center XH7125

Type of package : Plywood case

Packing dimension : 223x193x223cm (one set in one case)

N.W./G.W.: 1800/1950KGS

1. We are the biggest manufacturer in our city. Our products includes milling machine, drilling machines, cnc machines etc.

2. We attend many home and abroad exhibitions every year. In China, we attend Beijing or Shanghai exhibition, Canton fair.

In abroad, we attend EMO, Russia exhibition, Brazil exhibition etc.

3. Our market covers more than 70  ountries and regions, especially Europe & America market.

4. We have got many certifications, such as CE,ISO etc.
