Quick Details
-
Optical Resolution:
-
contact us
-
Scan Speed:
-
contact us
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
Power Supply:
-
Input voltage: +5VDC via Type C
-
Cable:
-
Detachable host cable
-
Communications:
-
USB 2.0 high speed
-
Host:
-
Win7 and above, Win 32/64 bit; Pentium-4 3GHz and 2GB RAM min
-
Dimensions:
-
176.5*140.6*28.8mm
-
Body:
-
ABS
-
Weight:
-
300g
-
Temperature:
-
Operating 32°F to 122°F ( 0°C to 50°C)
-
Humidity:
-
0-95% non-condensing
-
Storage:
-
-4°F to 140°F (-20°C to 60°C)
Quick Details
-
Type:
-
passport reader
-
Scan Element Type:
-
Reads MRZ from ICAO 9303 compliant documents
-
Max Paper Size:
-
Passport Size
-
Optical Resolution:
-
contact us
-
Scan Speed:
-
contact us
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
Power Supply:
-
Input voltage: +5VDC via Type C
-
Cable:
-
Detachable host cable
-
Communications:
-
USB 2.0 high speed
-
Host:
-
Win7 and above, Win 32/64 bit; Pentium-4 3GHz and 2GB RAM min
-
Dimensions:
-
176.5*140.6*28.8mm
-
Body:
-
ABS
-
Weight:
-
300g
-
Temperature:
-
Operating 32°F to 122°F ( 0°C to 50°C)
-
Humidity:
-
0-95% non-condensing
-
Storage:
-
-4°F to 140°F (-20°C to 60°C)
Products Description

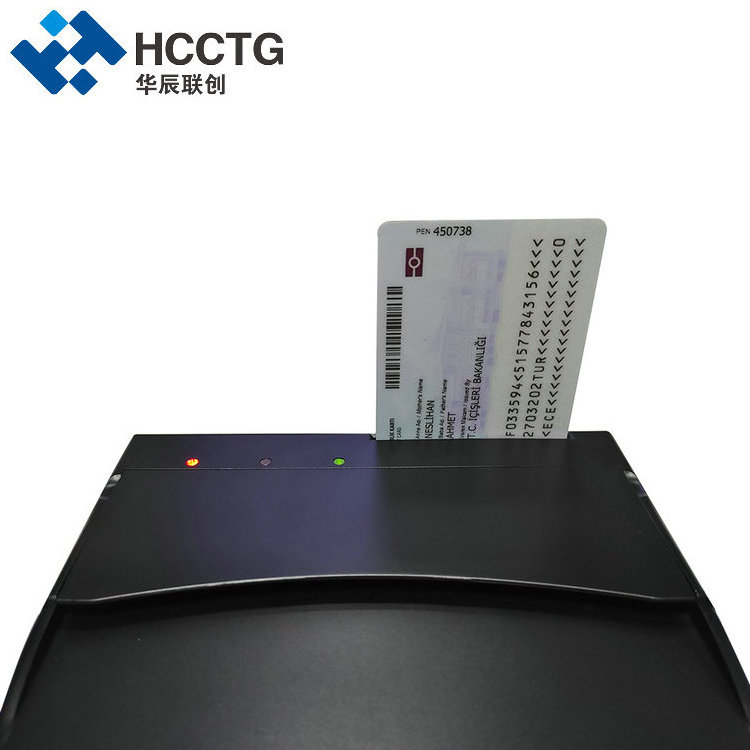

The
PPR100 Plus
is a half-page machine-readable zone
(MRZ) data reader
with
RFID
functionality, to simultaneously decode the contents of an
ePassport or contactless smart card
. The PPR100 Plus automatically detects when a document with machine readable data has been inserted, and its advanced recognition engine provides highly accurate and instant data capture and decoding.
Product Paramenters
|
OCR(optical character recognition)
|
|
Contactless Card
|
|
ICAO compliant travel documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 (2- and 3-line MRZ)
|
|
Interoperability: ICAO DOC 9303, LDS1.7, ISO18013 (Driving Licence), PA, AA, BAC, EAC
|
|
Near ICAO compliant travel documents (e.g. French ID) ISO-18013 driving licences (1-line MRZ)
|
|
Operating frequency: 13.56 MHz
|
|
Active scan area: (123 x 20 mm)
|
|
Supported documents: ISO 14443 type A & B auto-detecting; secure and high-speed data transmission; Mifare memory card support
(Mifare ultralight, 1K, 4K cards) |
|
Illumination source: NearIR B900, 860nm
|
|
App. interface: PC/SC compliant device
|
|
Contact Card
|
Supported Card Types: 1.8V, 3V and 5V, ISO/IEC7816 Class A/B/C
|
|
|
Smart Card Interface Speed: Up to 600 kbps, TA1=97
|
|
|
Smart Card Clock Frequency: Operates up to 16MHz
|
|
|
Card present switch, Automatic power on/off, Short circuit protection
|
|
|
ISO/IEC7816, T=0 and T=1 protocol, Class A, B, C cards
Support Extended APDU length |
