Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Canghai
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
3500 kg
-
Product name:
-

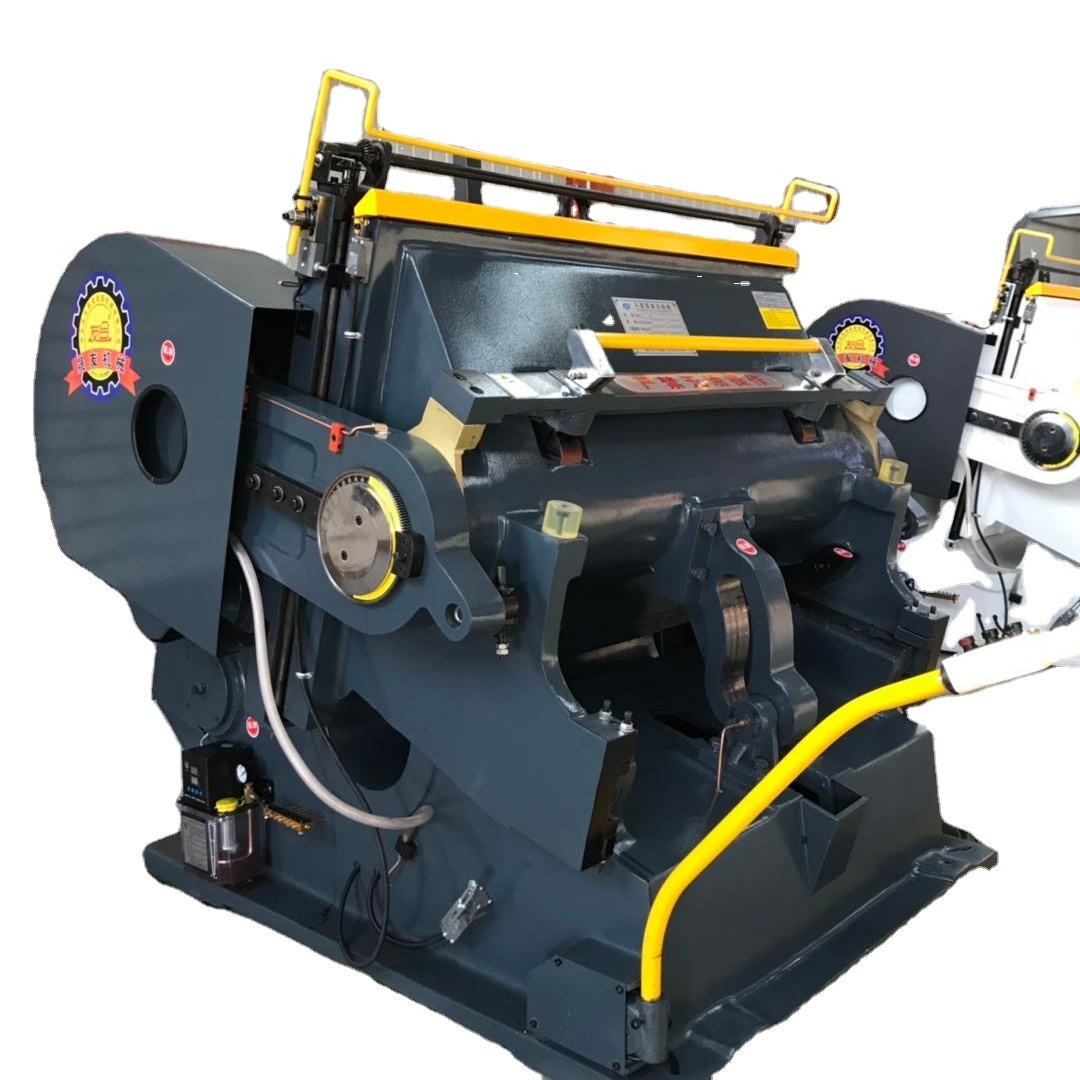

automatic die cutting and creasing machine ml-750
-
Name:
-
automatic die cutting machine
-
Keyword:
-
die cutting and creasing machine
-
Colour:
-
green
-
Function:
-
Cardboard Automatic Die-cutting Machine
-
Application:
-
Corrugated Board
-
Model:
-
ml-750
-
Speed:
-
10-140times/min
-
Raw material:
-
Steel
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
Other
-
Max. workable width:
-
1100mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Canghai
-
Voltage:
-
220/380v
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
3500 kg
-
Product name:
-
automatic die cutting and creasing machine ml-750
-
Name:
-
automatic die cutting machine
-
Keyword:
-
die cutting and creasing machine
-
Colour:
-
green
-
Function:
-
Cardboard Automatic Die-cutting Machine
-
Application:
-
Corrugated Board
-
Model:
-
ml-750
-
Speed:
-
10-140times/min
-
Raw material:
-
Steel
Applications
Our die cutting machine is an indispensable piece of post press equipment which is widely used for die cutting, and creasing of adhesive stickers, carrier bags, book covers, packing boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the desired material into large numbers of the same shape.
Features
1. Our die cut machine is manufactured using high quality material for high strength
2. It adopts a 3-step helical gear mechanism, resulting in stable operation, large cutting force, and low noise.
3. Single disc electromagnetic clutch ensures agile, reliable operation
4. Reasonably designed operational altitude, moving bed with a large open angle
5. Electrical system is designed in accordance with IEC standard.
6. Single sheet die cutting, continuous die cutting operations, adjustable delay range
7. Reliable safety system ensures operator safety.
Advantages
1. Our die cutting machine uses centralized lubrication pump system
2. It adopts world famous brand electrical components
3. Strengthened construction ensures smooth operation and long service life.
4. The adoption of active plate frame makes it convenient to install die cutting rule and adjust pressure, producing clear and beautiful results.
Detailed data :
|
Model |
ML-1200 |
ML-1100 |
|
Inside chase (mm) |
1200×820 |
1100×800 |
|
Max. die cutting size(mm) |
1200×820 |
1100×800 |
|
Speed (cuts/min) |
23±2 |
23±2 |
|
Max. rule length (m) |
≤32 |
≤30 |
|
Power of main motor (kw) |
5.5 |
5.5 |
|
Infrared sensor |
Imported from Japan |
Imported from Japan |
|
Gross weight (kg) |
6000 |
5500 |
|
Dimensions (L×W×H) (mm) |
2080×2050×1900 |
2080×1950×1900 |
