Quick Details
-
The charging ratio:
-
Standard
-
The discharge rate:
-
Super high discharge rate
-
Warranty:
-
1year
-
Brand Name:
-
bosfa
-
Model Number:
-
GNC70
-
Place of Origin:
-
Henan, China
-
Weight:
-
3.875kg
-
Capacity:
-
70AH (C5)
-
Type:
-
Nickel Cadmium Batteries (nicd)
-
Nominal Voltage:
-
1.2 Volt
-
Battery type:
-
Alkaline Nickel Cadmium Battery
-
Electrolyte Volume:
-
KOH+LIOH+Distilled water
-
Cycle Life:
-
500 Times
-
Model:
-
GNC70
-
Shipping:
-
Sea/Air
-
Terminal Material:
-
Nickel-Clad Steel
Quick Details
-
Chargeable:
-
Yes
-
Cycle life:
-
10-15 Years
-
Storage Type:
-
Dry Storage
-
The charging ratio:
-
Standard
-
The discharge rate:
-
Super high discharge rate
-
Warranty:
-
1year
-
Brand Name:
-
bosfa
-
Model Number:
-
GNC70
-
Place of Origin:
-
Henan, China
-
Weight:
-
3.875kg
-
Capacity:
-
70AH (C5)
-
Type:
-
Nickel Cadmium Batteries (nicd)
-
Nominal Voltage:
-
1.2 Volt
-
Battery type:
-
Alkaline Nickel Cadmium Battery
-
Electrolyte Volume:
-
KOH+LIOH+Distilled water
-
Cycle Life:
-
500 Times
-
Model:
-
GNC70
-
Shipping:
-
Sea/Air
-
Terminal Material:
-
Nickel-Clad Steel

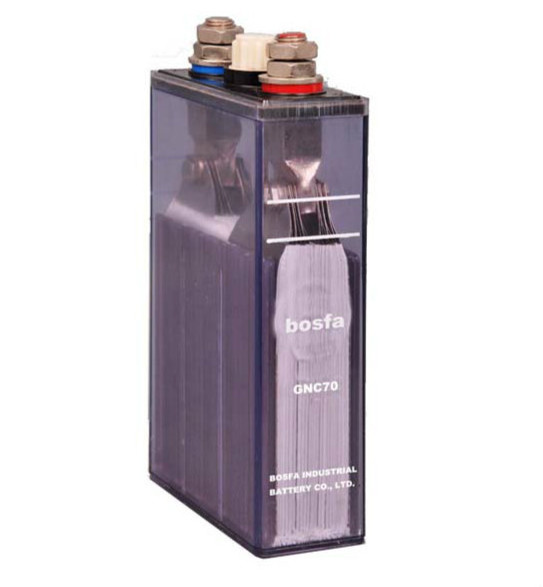

GNC70 1.2V 70AH super high discharge rate Alkaline rechargeable Ni-Cd battery 70ah 1.2v
Product Description
Bosfa Alkaline Batteries
Bosfa Industrial battery Alkaline battery series is equipped with a regulated valve to keep its pressure in a suitable limit, it
also prevents the electrolyte from absorbing the CO2 in the air. This ensures the battery not need to replace the electrolyte
during the operation. The battery is characterized with long life, strong construction, low self-discharge, wide operating
temperatures , high reliabilities and resistance to over change and discharge. The batterys maintenance interval may be 1-4 years at the various float charge voltages.
also prevents the electrolyte from absorbing the CO2 in the air. This ensures the battery not need to replace the electrolyte
during the operation. The battery is characterized with long life, strong construction, low self-discharge, wide operating
temperatures , high reliabilities and resistance to over change and discharge. The batterys maintenance interval may be 1-4 years at the various float charge voltages.
Application:
Engine Starting Power
Railway AGV
Electro Magnets Switchgears Uninterruptible Power Supply
Electric Train Control Process Control Alarm Systems
Electric Train Control Process Control Alarm Systems
Specification
|
Model
|
GNC70
|
|
Nominal Capacity
|
70Ah (5HR, 20℃)
|
|
Size
|
L138xW61xH266mm
|
|
Weight
|
3.875kg
|
|
Capacity affected by temperature (5HR)
|
20℃ >/=100%
-18℃ >/=80%
|
|
Self-discharge (20℃)
|
28 days<20%
|
|
Nominal operating temperature
|
20℃±5℃
|
|
Operating temperature range
|
-20℃-45℃
|
|
Floating charging voltage (20℃)
|
1.38±0.01V
|
|
Max. charging current
|
14A
|
|
Terminal material
|
Nickel-Clad Steel
|
|
Container Material
|
ABS
|
Constant Current Discharge Characteristics (A, 20℃)
|
F.V/TIME
|
1sec
|
5sec
|
1min
|
1.5min
|
5min
|
1h
|
1.5h
|
5h
|
|
1.0V
|
501.5
|
478.8
|
449.4
|
397.6
|
385.4
|
71.82
|
48.3
|
15.68
|
|
1.1V
|
452.2
|
431
|
284.2
|
264.6
|
204.4
|
66.5
|
47.2
|
14.56
|
|
1.14V
|
421.4
|
389.2
|
260.4
|
219.8
|
193.2
|
49.8
|
44.8
|
14
|
