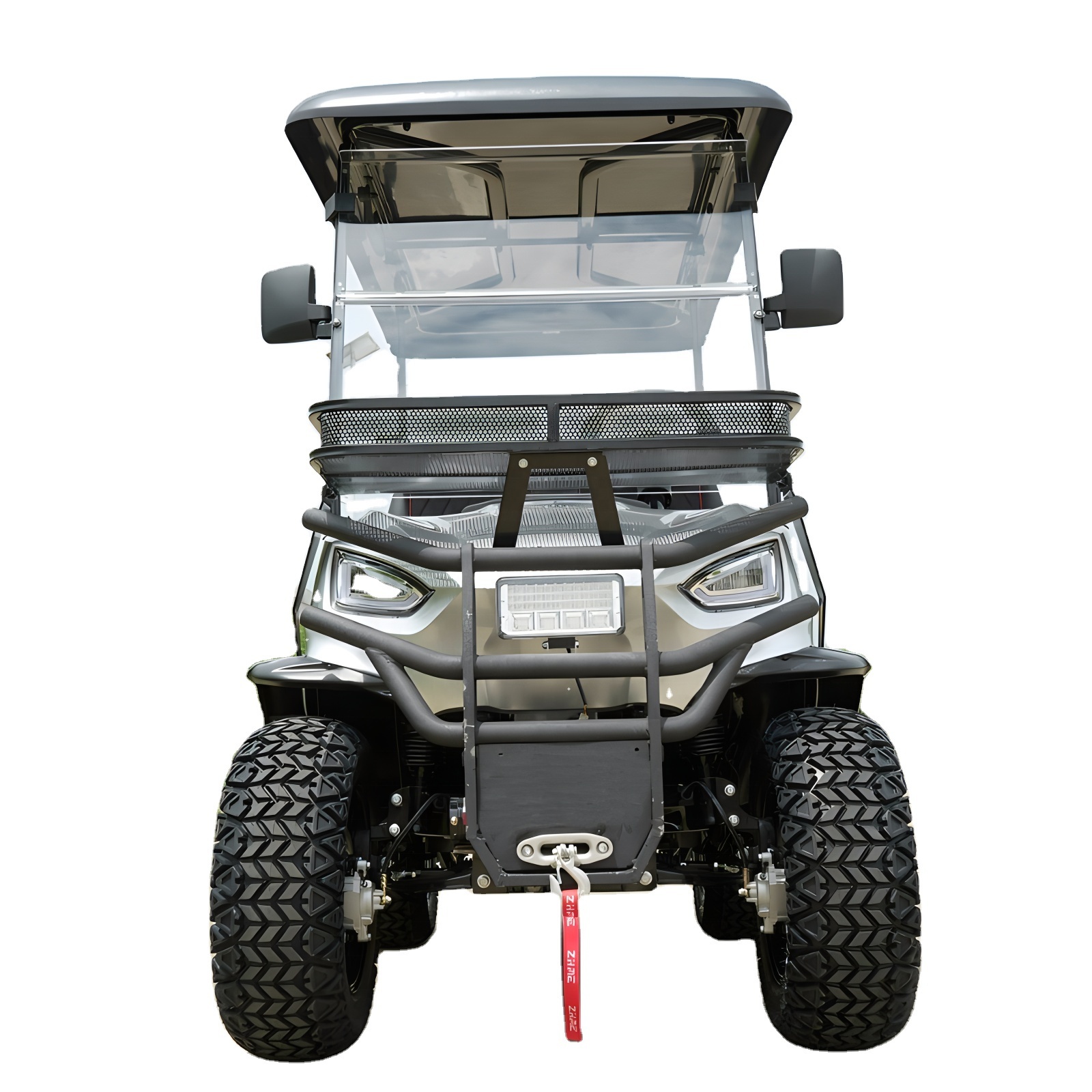

Fastest Chinese Power Lithium Battery 24V 4 Passengers Off-road Electric Golf Cart

Fastest Chinese Power Lithium Battery 24V 4 Passengers Off-road Electric Golf Cart

FOB Reference Price: Get Latest Price

≥1 Sets

US $3600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

seats::: Bus cold foam sponge + high rebound PU leather fabric

refit::: according to customer requirements

Controller::: Imbor 3528 electric control

tire::: 22*9.5-10;22*11-10

Max. loading weight::: 560kgs

Quick Details

Tire Size:: 10 inch

Battery Voltage:: 48V-72V

Product name:: Golf Cart

seats::: Bus cold foam sponge + high rebound PU leather fabric

refit::: according to customer requirements

Controller::: Imbor 3528 electric control

tire::: 22*9.5-10;22*11-10

Max. loading weight::: 560kgs

Applicable scene

OUR COMPANY

The Electric Car specialist Around You Anytime.

Shandong Duya New Energy Vehicle Industry Co., Ltd. is a company mainly producing new energy electric vehicles. Production, sales and service in China. It is a high-tech electric vehicle enterprise engaged in the manufacture of environmentally friendly electric vehicles and a key manufacturer of electric vehicles in China. The main products are: electric classic cars, electric sightseeing buses, electric patrol cars, electric golf carts, electric trucks, electric four-wheeled vehicles, etc. The company has a complete industrial layout and has established a modern manufacturing base in Shandong. This series of electric vehicles has passed and obtained China's national inspection report. For the batteries used, we have issued MSDS certificates, and electric vehicles are exported and delivered to Libya, Egypt, Oman, Germany, Malaysia, the United States, France, Mexico, South Korea, Dubai, Vietnam, Russia, etc., the fastest and best quality for global customers. service.

PRODUCT DETAILS

Simple Cockpit

Leather steering wheel

Easy to operate

Function area clearly

Vacuum Car Tyre

Vacuum tyre with aluminum wheel

Skid resistance and durable

Make sure vehicle running stable

Vehicle-mounted Cup

Holder

To place cup and water bottle

Accelerator and Brake

Accelerator is very sensitive

the braking accuracy is good

and it is

Maintenance-free

Battery

Big battery capacity

Long service life

PU Material Seat

PU seat with large space

Make sure the passenger

comfortable and safe.

Electrial System
Controller	60V Inbol intelligent controller	Motor	3500 W -5000W
Storage Battery	12V5PCS,12V6PCS	Traveling Range	90-120km
Battey charger	Vehicle-mounted intelligent charger	Charging Time	8-10Hours
Charger Voltage	Single phase,110V、220V	GW	500 KGS-1000KGS
Technicial Data
tire	229.5-10;2211-10	Body Material	Metal
Seating Capacity	2-10 Seats（optional）	Chassis Material	Metal
Speed Range	30-35 km/h	Braking Length	≤4 Meters
Climbing Capacity	30%	Min.Turning Tadius	3500 MM
Wheel Base	1650 MM	Front Rear Tracks	870/870 MM
Car Body System
Seat Material	Imitation leather (PU)
Instrument Panel	Combined instrument(front/back signal,light,trumpet,dump energy,current speed display)
Lighting System	Combined type front light and back light,braking light,front/back turning light
Switch System	Light switch,main power switch,electric horn,wiper switch.
Entertainment System	MP3 Player.
Car Body Painting	Color can be customized.
Chassis System
Drive System	Rear-drive motor,Controller adjusted automatically
Steering System	Automatic adjustment rack and pinion direction
Braking System	Four wheel hydraulic brake + double circuit hydraulic brake + parking brake device + brake assist
Tire Details	205-50-10, Aluminium wheel hub, vacuum tire
Front Axle and Suspension	Integral front bridge suspension
Back Axle and Suspension	Integral front bridge suspension

We have 2-10 seats to choose from, as well as upgraded and off-road versions

real scene, real car shooting

CERTIFICATION

Through the certification we allow customers to our products with more confidence, but the most important thing is the quality ofour products

EXHIBITION

PACKAGING&SHIPPING

The electric car will be packaged by seaworthy case, then loading into full container or by LCL container shipping to customerport by sea.

FAQ

Q1. What is your terms of packing? A: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow. Q2. What is your terms of payment? A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages，before you pay the balance. Q3. How about your delivery time? A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q5. What is your sample policy? A: Since this product is high-value product, we can accept sample by discount. Should the production be large in quantity, we may even consider re-funding for the sample. Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. 3. OEM Manufacturing welcome: Product, Package... 4. Sample order 5. We will reply you for your inquiry in 24 hours. 6. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
