Quick Details
-
Weight (KG):
-
1400 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xinan
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2700*1000*1450
-
Power (kW):
-
15 kW
-
Product name:
-
Feed Chemical Food Spiral Horizontal Ribbon Mixer Blender Mixer
-
Usage:
-
Mixing Powder Proucts
-
Capacity:
-
400-600L
-
equipped powder:
-
7.5-15kw
-
weight:
-
1400kg
-
Volume:
-
1000L
-
After-sales Service Provided:
-
Online support
Quick Details
-
Barrel Volume (L):
-
1000 L
-
Max. Loading Volume (L):
-
1000 L
-
Max. Loading Capacity:
-
600
-
Weight (KG):
-
1400 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xinan
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2700*1000*1450
-
Power (kW):
-
15 kW
-
Product name:
-
Feed Chemical Food Spiral Horizontal Ribbon Mixer Blender Mixer
-
Usage:
-
Mixing Powder Proucts
-
Capacity:
-
400-600L
-
equipped powder:
-
7.5-15kw
-
weight:
-
1400kg
-
Volume:
-
1000L
-
After-sales Service Provided:
-
Online support

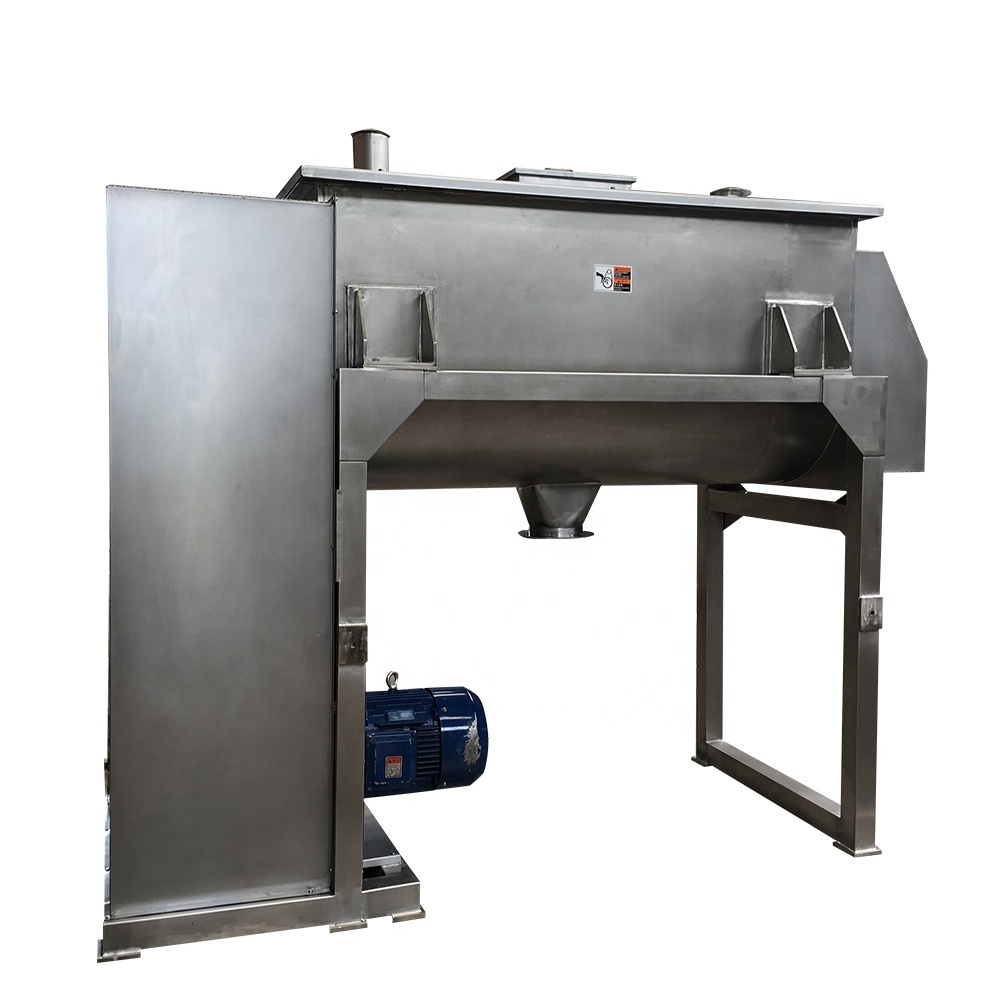

Feed Chemical Food Spiral Horizontal Ribbon Mixer Machine Blender Mixer
WLDH Series Horizontal Ribbon Mixer is composed of container,screw stirring paddles and traditional parts.
The ribbon mixer is generally used to mix viscous or adhesive powder material,or powder with liquid additive,or pasty material.Because it is difficult to clean viscous material,the machine is good at mixing material with large capacity and continuous demand.
This machine is applied in the industry of foodstuff,chemical,plastic,pigment and cosmetics.
Nowadays, Jiangyin Xinan Machinery Co.,ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.
| Type(m3) | one time mixing(kg) | Power(Kw) | Weight(kg) |
| WLDH-0.1 | 30-50 | 1.5-4 | 300 |
| WLDH-0.3 | 100-150 | 3-5.5 | 500 |
| WLDH-0.5 | 200-300 | 4-11 | 900 |
| WLDH-1 | 400-600 | 7.5-15 | 1400 |
| WLDH-1.5 | 600-900 | 11-18.5 | 1900 |
| WLDH-2 | 800-1200 | 15-22 | 2500 |
| WLDH-3 | 1200-1800 | 18.5-30 | 3100 |
| WLDH-4 | 1600-2400 | 22-37 | 3600 |
| WLDH-6 | 2400-3600 | 37-55 | 5300 |
| WLDH-8 | 3200-4800 | 37-55 | 6800 |
| WLDH-10 | 4000-6000 | 45-75 | 7800 |
