Quick Details
-
Machinery Capacity:
-
300kg/h
-
Machinery Function:
-
Crushing meat and bone
-
Name:
-
Bone crusher/Bone shredder/Bone grinder
-
Function:
-
Crushing Bones and meat
-
Blades materials:
-
SKD-11
-
Motor:
-
overload protective
-
Feature:
-
High Efficiency Easy Operation
-
Blade rotary speed:
-
520r/min
-
Voltage:
-
220v/380v/customized
-
Sieve screen hole size:
-
8-40mm
-
Bearing:
-
FC214
-
Advantage:
-
Customization Service
Quick Details
-
Weight (KG):
-
680
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XUCAI
-
Machinery Capacity:
-
300kg/h
-
Machinery Function:
-
Crushing meat and bone
-
Name:
-
Bone crusher/Bone shredder/Bone grinder
-
Function:
-
Crushing Bones and meat
-
Blades materials:
-
SKD-11
-
Motor:
-
overload protective
-
Feature:
-
High Efficiency Easy Operation
-
Blade rotary speed:
-
520r/min
-
Voltage:
-
220v/380v/customized
-
Sieve screen hole size:
-
8-40mm
-
Bearing:
-
FC214
-
Advantage:
-
Customization Service

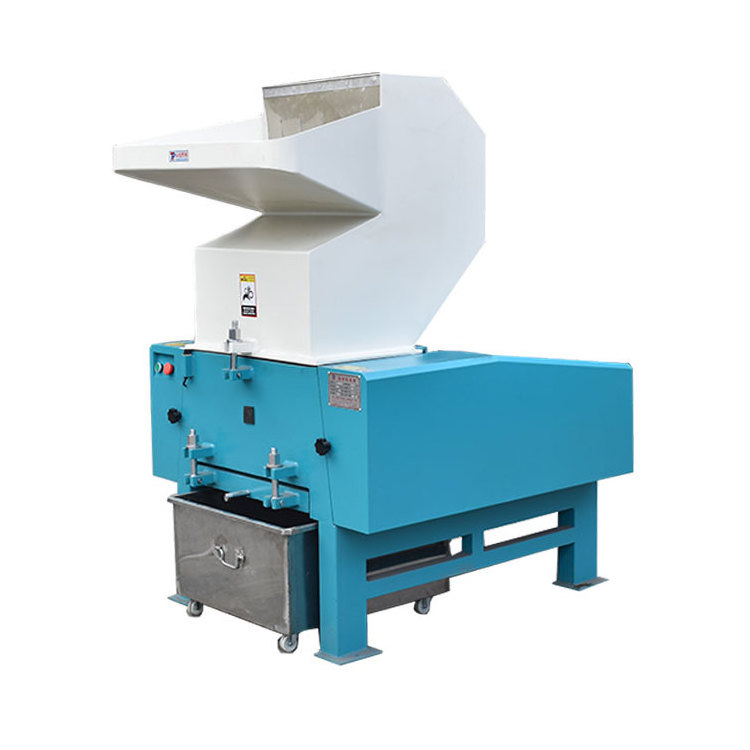

Bone shredder characteristics:
1.The bone shredder used for crushing all types bone,plastic products,rubber tire,shoes and so on.
2.SKD-11 materials blade,strong,durable,sharp,easy crushing materials.
3.Good designing structure,convenient operation,energy-saving and durable,high efficient and economical.
4.Several security protection devices to ensure safe operation.
5.Input sieve with double-deck soundproof design to mitigate noise.
6.Special cutter frame design,high shredding efficient.
7.Adopt heavy duty bearing,low noise,smooth running.
Technical parameters:
|
Model |
Crushing chamber size(mm |
Crushing Ability (kg/h) |
Power (kw) |
Fixing Cutter (pcs) |
Flexible Cutter (pcs) |
Mechanical Dimension(mm) |
Weight (kg) |
|
TLP2520 |
250x200 |
100-150 |
4 |
2 |
15 |
940x600x1090 |
175 |
|
TLP3126 |
310x265 |
150-200 |
5.5 |
2 |
9 |
1150x720x1220 |
350 |
|
TLP4128 |
410x280 |
200-300 |
7.5 |
2 |
12 |
1200x860x1350 |
450 |
|
TLP5032 |
500x320 |
300-400 |
11 |
2 |
15 |
1300x1000x1530 |
680 |
|
TLP6032 |
600x320 |
400-500 |
15 |
2 |
18 |
1400x1100x1600 |
900 |
|
TLP6246 |
620x460 |
500-600 |
22 |
2 |
18 |
1600x1200x1750 |
1200 |
|
TLP7146 |
710x460 |
600-700 |
22 |
2 |
21 |
1900x1350x2100 |
1600 |
|
TLP8146 |
810x460 |
700-800 |
30 |
4 |
24 |
2000x1500x2100 |
2000 |
|
TLP8156 |
810x560 |
800-900 |
37 |
4 |
24 |
2000x1500x2250 |
2400 |
|
TLP1065 |
1020x650 |
900-1000 |
37 |
4 |
30 |
2100x1750x2400 |
3000 |
|
TLP1072 |
1020x720 |
1000-1400 |
45 |
4 |
30 |
2220x1800x2500 |
3500 |
