Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4000*1550*2500
-
Machine Weight:
-
3300 kg
-
Bucket capacity:
-
0.4M3
-
color:
-
red
-
Engine:
-
XINCHAI 498(EURO III)
-
Rated Power:
-
36.8kw
-
Attachments:
-
pallet fork
-
Wheel base:
-
1772
-
Drive type:
-
4x4 Wheel Drive
-
Tire:
-
750-16
-
cabin:
-
luxury
-
hearter:
-
with hearter
-
Dumping height:
-
2000mm
Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Power:
-
25KW
-
Brand Name:
-
mammut
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4000*1550*2500
-
Machine Weight:
-
3300 kg
-
Bucket capacity:
-
0.4M3
-
color:
-
red
-
Engine:
-
XINCHAI 498(EURO III)
-
Rated Power:
-
36.8kw
-
Attachments:
-
pallet fork
-
Wheel base:
-
1772
-
Drive type:
-
4x4 Wheel Drive
-
Tire:
-
750-16
-
cabin:
-
luxury
-
hearter:
-
with hearter
-
Dumping height:
-
2000mm
Products Description

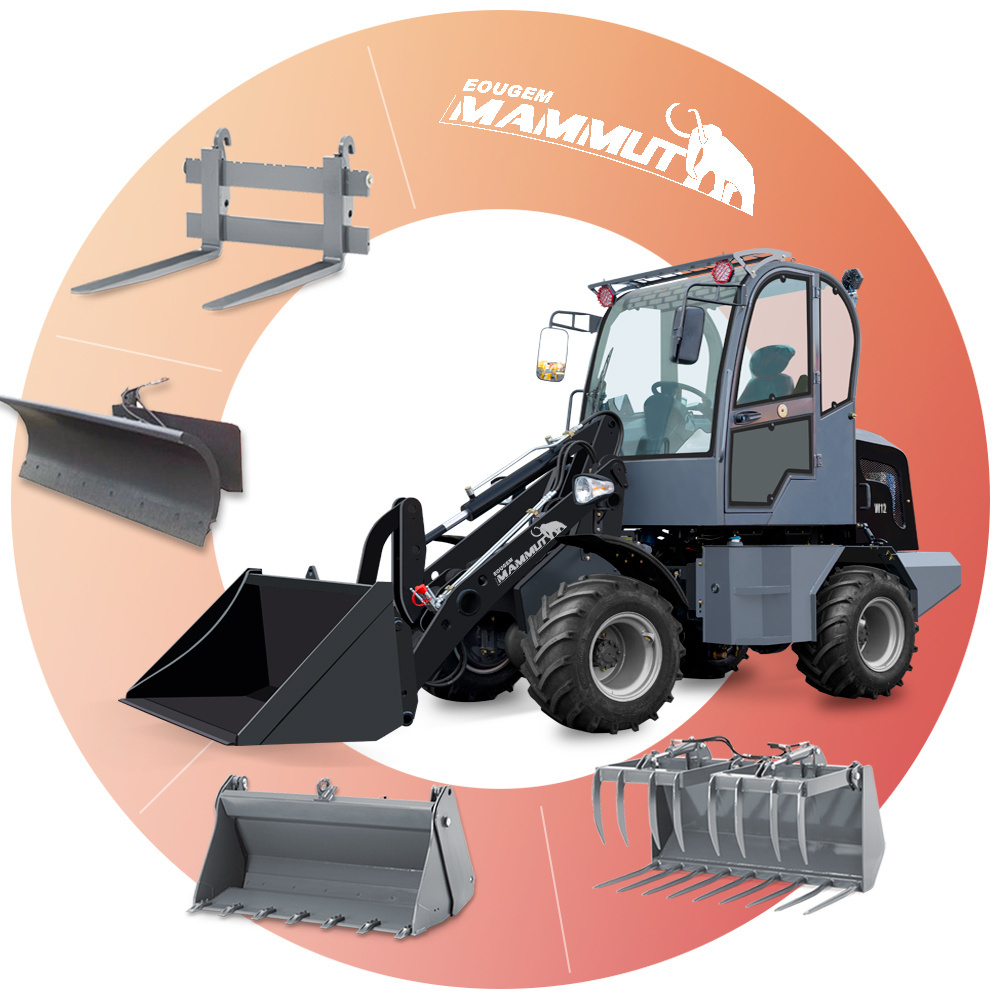

Small 1ton wheel loader with electric joystick
1)Hard Mn alloy steel Q345B was used for 80% chassis.
2)1ton Max loading capacity.
3)Chinese famous brand xinchai engine:36.8KW
4)Automatic transmission control
5)Four wheel drive, Oscillating gear axles
6)Four wheel hydraulic spread-shoe brake
7Famous brand Camel battery with Big AH
8) 31*15.5-15tires
9) warm Cabin with luxury seat, Adjustable steering wheel, Heater
2)1ton Max loading capacity.
3)Chinese famous brand xinchai engine:36.8KW
4)Automatic transmission control
5)Four wheel drive, Oscillating gear axles
6)Four wheel hydraulic spread-shoe brake
7Famous brand Camel battery with Big AH
8) 31*15.5-15tires
9) warm Cabin with luxury seat, Adjustable steering wheel, Heater
Standard Configurations For WL12 Wheel Loader
1) Standard bucket
2) changchai engine
3) Backward camera, USB, Radio
4) Tipping cabin
5) electric Joystick
6) E4 Lamps /LED working lamp
7) Donaldson-like air filter
8) Heavy-duty articulation
9) 750-16 tyres
10) Adjustable seat
11) Luxury interior
Optional Configurations For WL12 Wheel Loader
1) xinchai engine
2) Quick hitch
3) attachments
5) Digital display instrument
6) Pneumatic seat
7) 31*15.5-15 tyres
8) A/C
1) Standard bucket
2) changchai engine
3) Backward camera, USB, Radio
4) Tipping cabin
5) electric Joystick
6) E4 Lamps /LED working lamp
7) Donaldson-like air filter
8) Heavy-duty articulation
9) 750-16 tyres
10) Adjustable seat
11) Luxury interior
Optional Configurations For WL12 Wheel Loader
1) xinchai engine
2) Quick hitch
3) attachments
5) Digital display instrument
6) Pneumatic seat
7) 31*15.5-15 tyres
8) A/C
|
1.0 Engine Details
|
|
|
(1) Model:
|
Xinchai 498 BT (Euroiii )/yunnei engine
|
|
(2) Engine Type:
|
In-line arrangement,water-cooled,four-cycle diesel engine
|
|
(3) Rated Power:
|
36.8KW /42kw
|
|
(4) Rated Speed:
|
2400 r/min(rpm)
|
|
(5) Fuel Consumption ration in Standard working condition:252g/kw.H
|
|
|
2.0 Transmission System
|
|
|
(1) Type:
|
Fixed-spindle power shift
|
|
(2) Shift gear control oil pressure
|
1.0-1.8MPa
|
|
(3) Rated input speed:
|
2500(rpm)
|
|
(4) Max.Breakout Force:
|
36.8KN
|
|
3.0 Bucket
|
|
|
(1) Bucket capacity:
|
0.4m3
|
|
(2) Bucket Width:
|
1500mm
|
|
(3) Bucket type:
|
Heavy-duty bolt on teeth
|
|
(4) Rated load:
|
1000kg
|
|
(5)Operating Weight
|
3300kg
|
|
4.0 Overall Dimensions
|
|
|
(1) Overall length(bucket on ground)
|
4000mm
|
|
(2) Overall Height
|
2500mm
|
|
(3) Dumping height:
|
2000mm
|
|
(4) Overall width
|
1500mm
|
|
5.0 Operating Specifications
|
|
|
(1) Steering system:
|
Articulated frame with hydraulic power steering
|
|
(2) Max.turning radius:
|
5050mm
|
|
(3) Driving system:
|
Hydraulic converter
|
|
6.0 Brake System
|
|
|
(1) Service Brake
|
Four wheel hydraulic spread-shoed brake
|
|
(2) Parking Brake
|
Hand operated
|
|
7.0 Tyre
|
750-16/12-16.5/31*15.5-15
|
