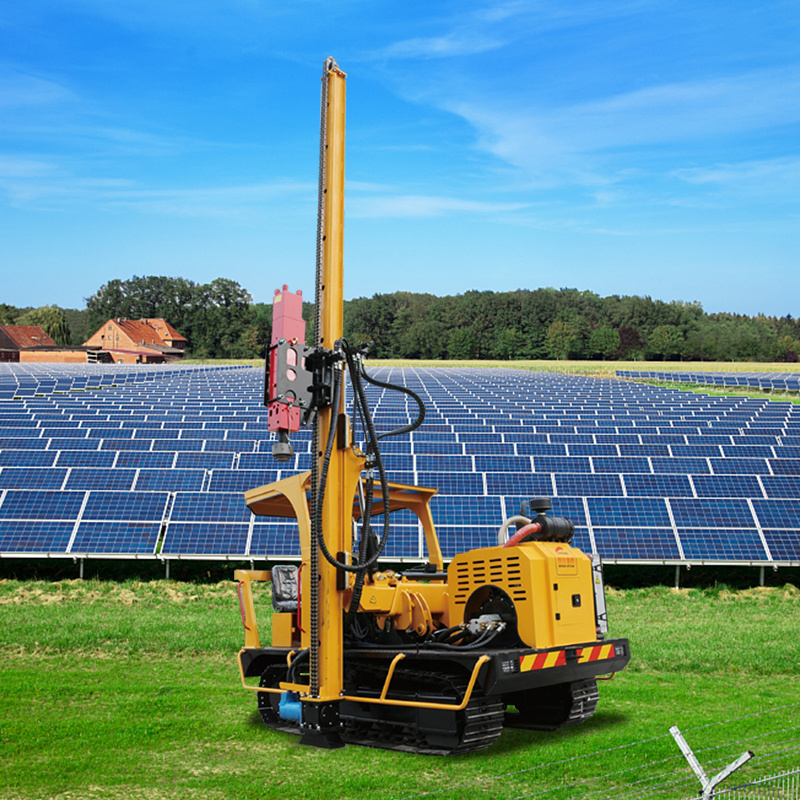

HXR5 series widely used for solar post installation.The machine has 5 functions: ramming, DTH impact drilling, Screw pile, as well as extraction. With these functions, the machine can meet the requirement for most projects.
1.You can see we adopt chain drive, max stoke of hammer can reach to 6 m. Drive head for hammer can be customized to different project. such as C channel,H,I,Z shape,etc.
2.Brand Hydraulic double (Duplex pump)gear pump.high flow make the machine more powerful.
3.Reinforced lifting guide rail is made of whole C channel, not welded one, it has inlaid nylon material which makes it with
smooth movement, adjustable gap and increased lifetime
4.The lifting motor has connecting bracket, which rotates and lifts independently to reduce impact and axial force for motor output shaft. It protects the motor from wearing and reduces the failure rate.
5.The engine is70 KW Turbocharging, very powerful.(FAWDE Xichai brand, Weichai brand and
Cummins
brand)
6.The oil intake and return filter is added into the hydraulic oil to reduce the oil impurity.
High Quality HXR5 Solar Piling Machine Crawler Solar Pile Driver Photovoltaic Ground Screw For Power PV Station
