Quick Details
-
Model Number:
-
PAH
-
Specification:
-
1/4''-1''
-
Length:
-
20/50/100 meter
-
Thickness:
-
1-4mm
-
Standard:
-
ISO
-
Product name:
-
Flexible PVC Air Hose
-
Application:
-
Industry
-
Raw material:
-
PVC+reinforced Polyester Yarn
-
Size:
-
1/4'' - 1"
-
Working pressure:
-
20bar-50bar
-
Color:
-
Customized
-
Sample:
-
Availiable
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Goldsione
-
Model Number:
-
PAH
-
Specification:
-
1/4''-1''
-
Length:
-
20/50/100 meter
-
Thickness:
-
1-4mm
-
Standard:
-
ISO
-
Product name:
-
Flexible PVC Air Hose
-
Application:
-
Industry
-
Raw material:
-
PVC+reinforced Polyester Yarn
-
Size:
-
1/4'' - 1"
-
Working pressure:
-
20bar-50bar
-
Color:
-
Customized
-
Sample:
-
Availiable

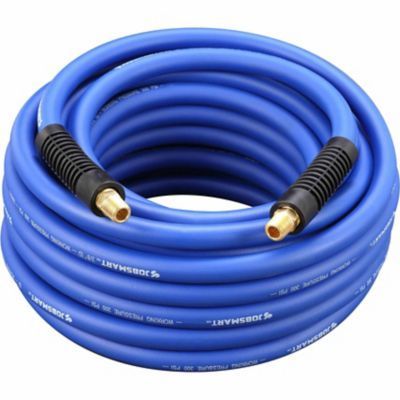

High Pressure Flexible Air Compressor Hose Pneumatic Pipe Hose PVC Hose With Blue Color And Connectors Fittings 3/8'' Inch 8 mm
Product Description
:
1)
Flexible, anti-erosion and explosion-proof
2) Being made of full new PVC material and tough polyester reinforcement thread, can bear high working pressure
3)
Working temperature : -10
℃
to 65
℃
(14
℉
to 149
℉
)
Parameters
| PART NUMBER | HOSE I.D | MAX. WORKING PRESSURE |
MIN. BURST
PRESSURE |
PACKAGE LENGTH | FITTING THREAD |
| INCH | PSI | PSI | FT | NPT/BSP | |
| PAH-1 | 1/4 | 300 | 900 | 25/50/75/100/300 | 1/4,3/8 |
| PAH-2 | 1/3 | 300 | 900 | 25/50/75/100/300 | 1/4,3/8 |
| PAH-3 | 3/8 | 300 | 900 | 25/50/75/100/300 | 1/4,3/8 |
| PART NUMBER | HOSE I.D | MAX. WORKING PRESSURE |
MIN. BURST PRESSURE |
PACKAGE LENGTH | FITTING THREAD |
| MM | BAR | BAR | METER | NPT/BSP | |
| PAH-1 | 6 | 20 | 60 | 10/15/20/25/50/75/100 | 1/4,3/8 |
| PAH-2 | 8 | 20 | 60 | 10/15/20/25/50/75/100 | 1/4,3/8 |
| PAH-3 | 10 | 20 | 60 | 10/15/20/25/50/75/100 | 1/4,3/8 |
