Quick Details
-
Voltage:
-
380V/220V or customized
-
Dimension(L*W*H):
-
2600*3600*4000
-
Power (kW):
-
32
-
Weight (KG):
-
4000 KG
-
Core Components:
-
Mixing head, Polyurethane special pump, Siemens motor magnet, PLC control, Explosion-proof motor, alkane gas detection system, anti-static isolation system, MSA gas detector, PLC control
-
Product Name:
-

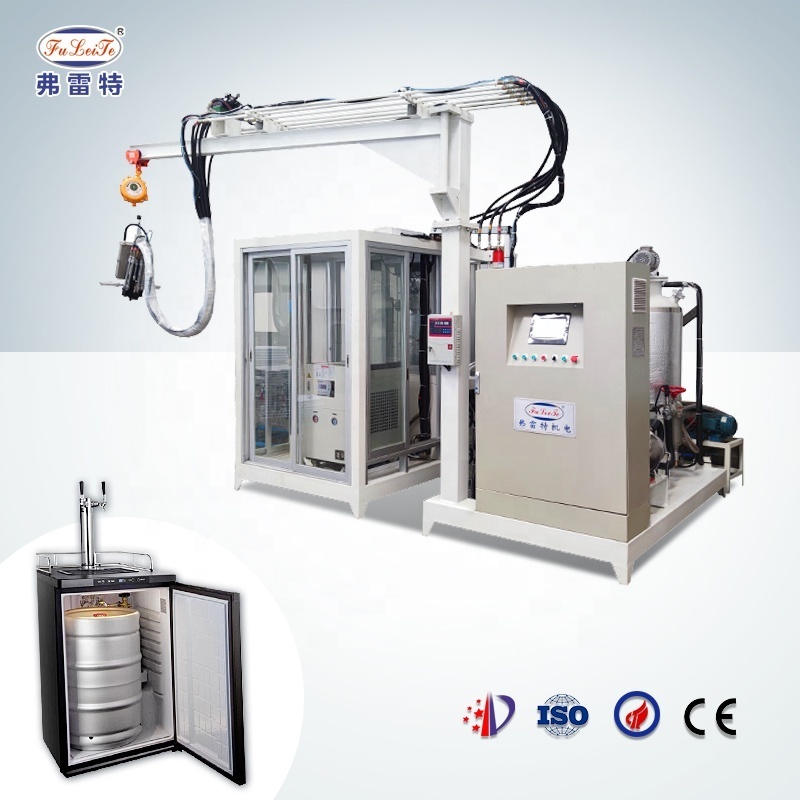

Beer machine cyclopentane foaming machine
-
After-sales Service Provided:
-
Video Technical Support
-
Application:
-
Incubator, refrigerator, freezer, water heater, wine cooler
-
Advantage:
-
Energy saving and environmental protection
-
Raw material:
-
245/365FA+cyclopentane (CP) binary polyether combination
-
Electrical configuration:
-
Siemens control system
-
Certification:
-
CE
-
Marketing Type:
-
Polyurethane Equipment Strength Merchants
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fuleite(FLT)
-
Machine Type:
-
Cyclopentane Foaming Machine, Cyclopentane High Pressure Foaming Machine
-
Voltage:
-
380V/220V or customized
-
Dimension(L*W*H):
-
2600*3600*4000
-
Power (kW):
-
32
-
Weight (KG):
-
4000 KG
-
Core Components:
-
Mixing head, Polyurethane special pump, Siemens motor magnet, PLC control, Explosion-proof motor, alkane gas detection system, anti-static isolation system, MSA gas detector, PLC control
-
Product Name:
-
Beer machine cyclopentane foaming machine
-
After-sales Service Provided:
-
Video Technical Support
-
Application:
-
Incubator, refrigerator, freezer, water heater, wine cooler
-
Advantage:
-
Energy saving and environmental protection
-
Raw material:
-
245/365FA+cyclopentane (CP) binary polyether combination
-
Electrical configuration:
-
Siemens control system
-
Certification:
-
CE
-
Marketing Type:
-
Polyurethane Equipment Strength Merchants
FLT Beer machine foam inject polyurethane cyclopentane foam machinery non-standard customization
|
Model |
FLT.H-06 |
FLT.H-12 |
FLT.H-28 |
FLT.H-55 |
|
Perfusion (g/sec) |
60-160g/s |
150-550g/s |
350-1300g/s |
1000-2300g/s |
| Type of gun head | FLT07-10 | FLT10-14 |
FLT10-14
FLT12-18 |
FLT12-18 FLT16 -25 |
|
Model of metering pump (A2FK,A2VK,A7VK) |
5/6 | 12 | 28 | 55 |
|
Equipment power (380V,50HZ) |
18kw |
23kw |
32kw |
56kw |
|
Flow meter (optional) |
VCO.2 |
VCG2FCP2 |
VCG2 |
VCG5FCP2 |
|
Injection time accuracy |
0.1s-99.99s |
A:B Injection ratio |
1:3---3:1 |
|
|
Raw material injection pressure |
8---15mpa |
Repeated injection accuracy |
≤ 1% |
|
|
Temperature control accuracy |
± 2° |
Tank volume | 300L | |
